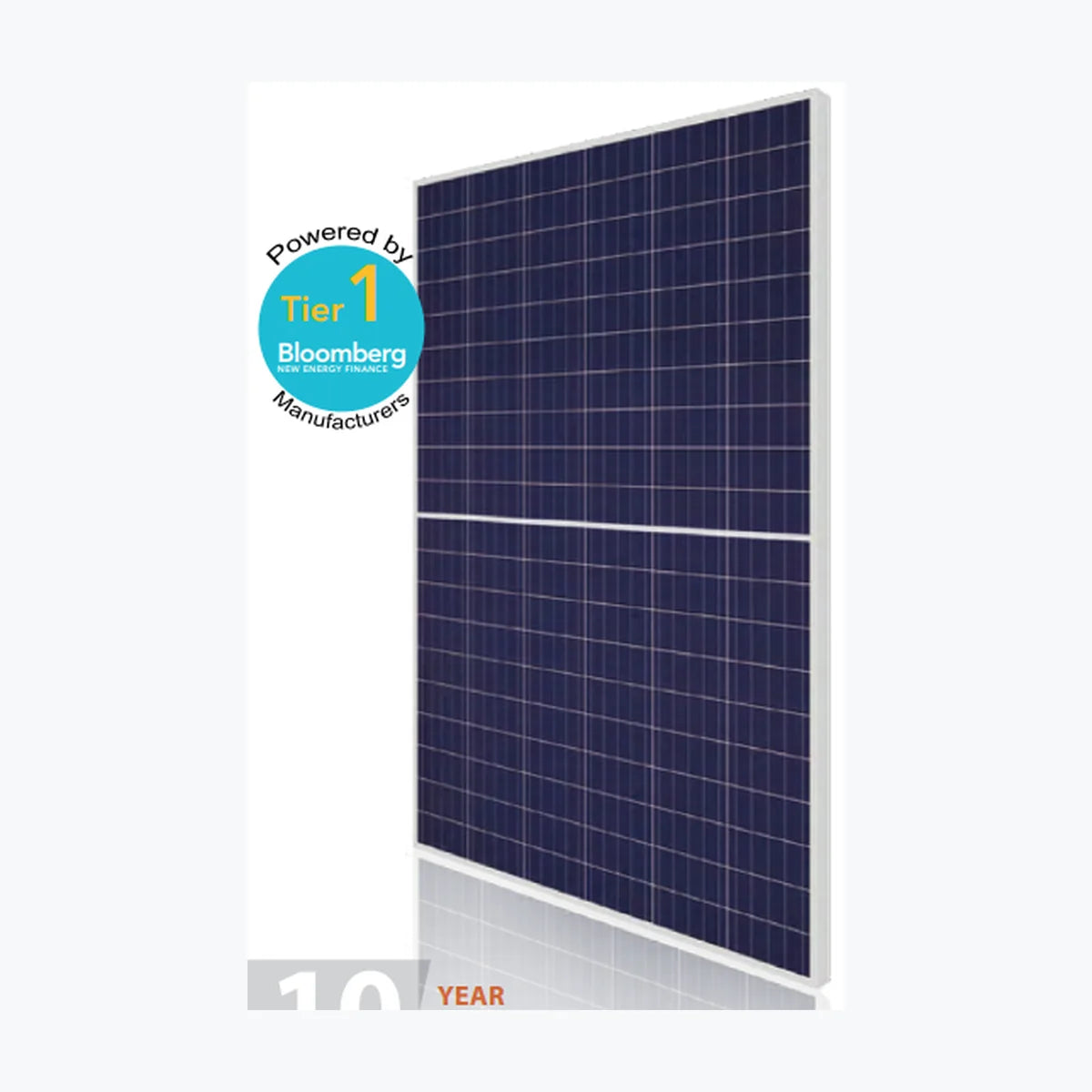

    ABi-Solar AB290-60PHC

    ABi-Solar AB290-60PHC

    $58.00 USD
    $58.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0135
    • Container price: $31,320.00 USD
    • Container qty: 720
    • Mpn: AB290-60PHC
    • Odoo id: 18,267
    • Pallet price: $1,479.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB290-60PHC Product Warranty 10 Years Power Warranty 10 Years of 91.2 %, 25 Years of 80.7 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1.83 % Maximum Power (Pmax) 290 Wp Voltage at Maximum Power (Vmpp) 32.6 V Current at Maximum Power (Impp) 8.9 A Open Circuit Voltage (Voc) 38.8 V Short Circuit Current (Isc) 9.39 A Panel Efficiency 17.46 % Maximum Power (Pmax) 213.1 Wp Voltage at Maximum Power (Vmpp) 30.03 V Current at Maximum Power (Impp) 7.34 A Open Circuit Voltage (Voc) 36 V Short Circuit Current (Isc) 7.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1674x992x35 mm Weight 18.5 kg Glass Type Tempered Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm

      Power Range: 280 ~ 290 Wp
      Panel Efficiency: 16.8 ~ 17.46 %
      Weight: 18.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
