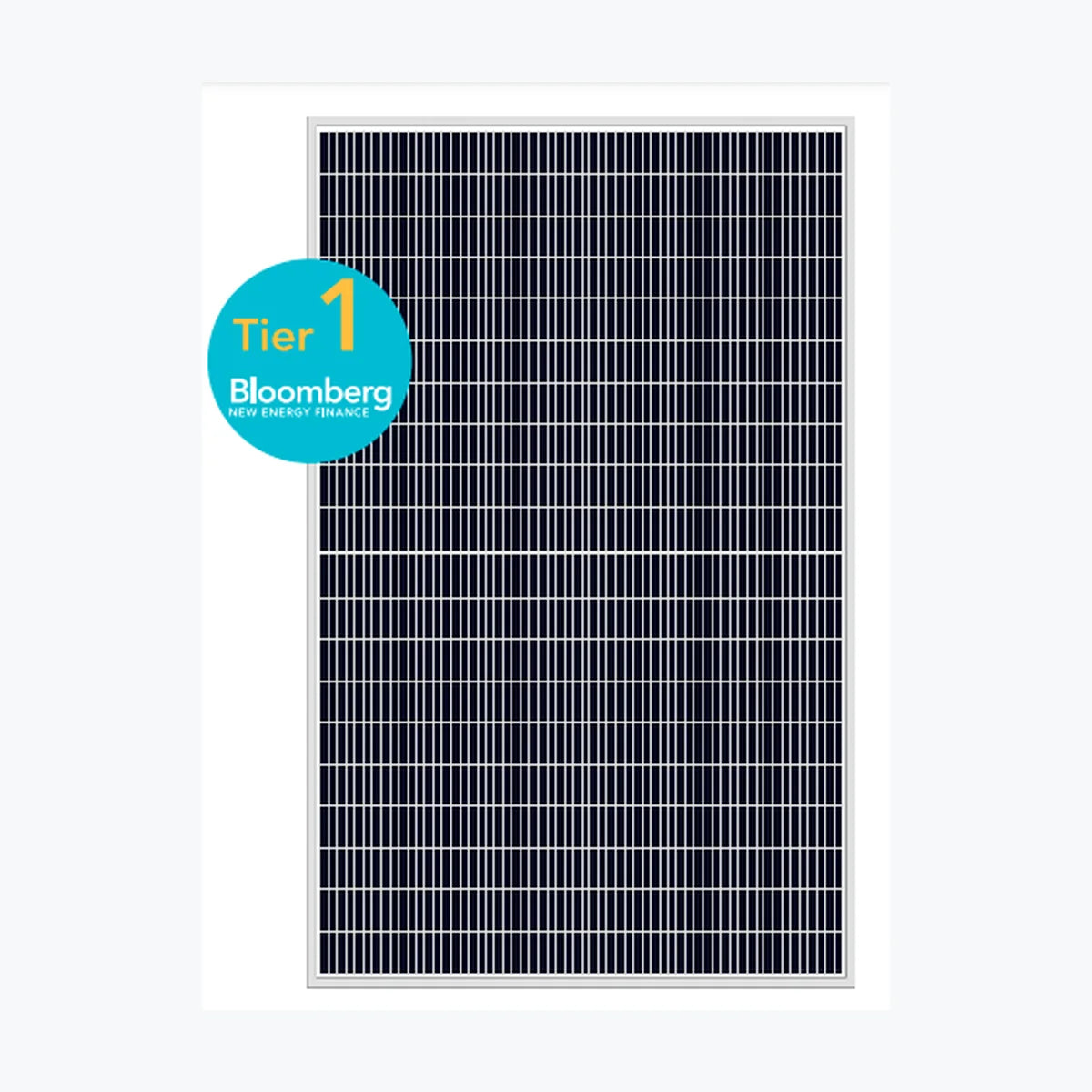

ABi-Solar AB370-60MHC
PayPal Pay in 4 interest-free payments of $25.90 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0144
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AB370-60MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 370 Wp Voltage at Maximum Power (Vmpp) 34.49 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 42.9 V Short Circuit Current (Isc) 11.21 A Panel Efficiency 20.01 % Maximum Power (Pmax) 280 Wp Voltage at Maximum Power (Vmpp) 32.59 V Current at Maximum Power (Impp) 8.6 A Open Circuit Voltage (Voc) 40.69 V Short Circuit Current (Isc) 9.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1765x1046x35 mm Weight 20 kg Cell Number 120 Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1000 mm
Technology: PERC
Power Range: 365 ~ 375 Wp
Panel Efficiency: 19.74 ~ 20.28 %
Weight: 20 kg
Seller Name: ABi-Solar Inc
Country: United States
| SKU | PES-SPS-SOL-0144 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
