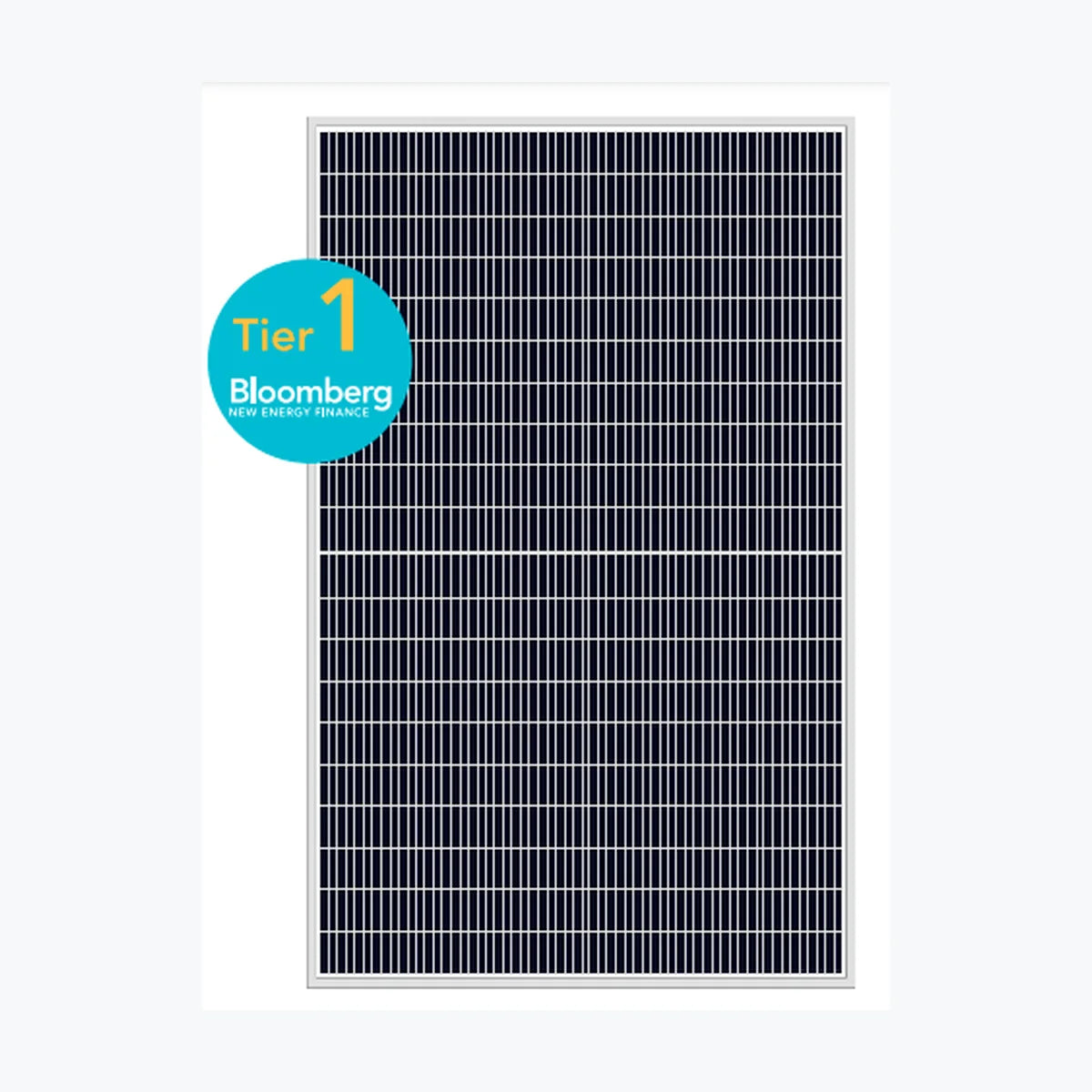

    ABi-Solar AB375-60MHC

    ABi-Solar AB375-60MHC

    $75.00 USD
    $75.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0145
    • Container price: $40,500.00 USD
    • Container qty: 720
    • Mpn: AB375-60MHC
    • Odoo id: 17,608
    • Pallet price: $1,912.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB375-60MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 375 Wp Voltage at Maximum Power (Vmpp) 34.67 V Current at Maximum Power (Impp) 10.83 A Open Circuit Voltage (Voc) 43.1 V Short Circuit Current (Isc) 11.32 A Panel Efficiency 20.28 % Maximum Power (Pmax) 284 Wp Voltage at Maximum Power (Vmpp) 32.76 V Current at Maximum Power (Impp) 8.67 A Open Circuit Voltage (Voc) 40.88 V Short Circuit Current (Isc) 9.11 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1765x1046x35 mm Weight 20 kg Cell Number 120 Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1000 m

      Technology: PERC
      Power Range: 365 ~ 375 Wp
      Panel Efficiency: 19.74 ~ 20.28 %
      Weight: 20 kg
      Seller Name: ABi-Solar Inc
      Country: United States
