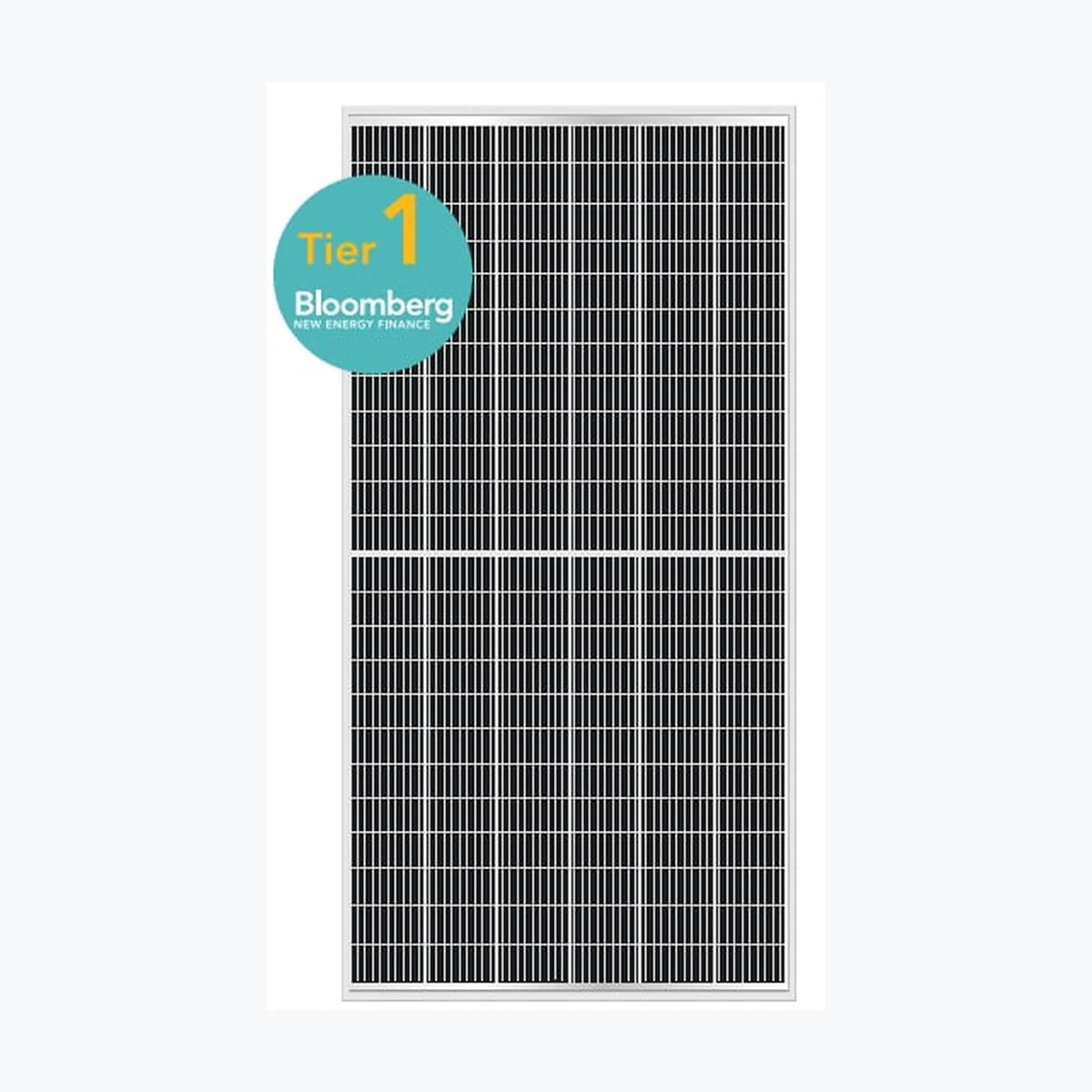

    ABi-Solar AB450-72MHC

    ABi-Solar AB450-72MHC

    $90.00 USD
    $90.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0161
    • Container price: $48,600.00 USD
    • Container qty: 720
    • Mpn: AB450-72MHC
    • Odoo id: 16,925
    • Pallet price: $2,295.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB450-72MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 450 Wp Voltage at Maximum Power (Vmpp) 41.3 V Current at Maximum Power (Impp) 10.9 A Open Circuit Voltage (Voc) 50.4 V Short Circuit Current (Isc) 11.47 A Panel Efficiency 20.41 % Maximum Power (Pmax) 342 Wp Voltage at Maximum Power (Vmpp) 38.94 V Current at Maximum Power (Impp) 8.79 A Open Circuit Voltage (Voc) 47.76 V Short Circuit Current (Isc) 9.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 2108x1046x35 mm Weight 24 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP

      Technology: PERC
      Power Range: 440 ~ 450 Wp
      Panel Efficiency: 19.96 ~ 20.41 %
      Weight: 24 kg
      Seller Name: ABi-Solar Inc
      Country: United States
