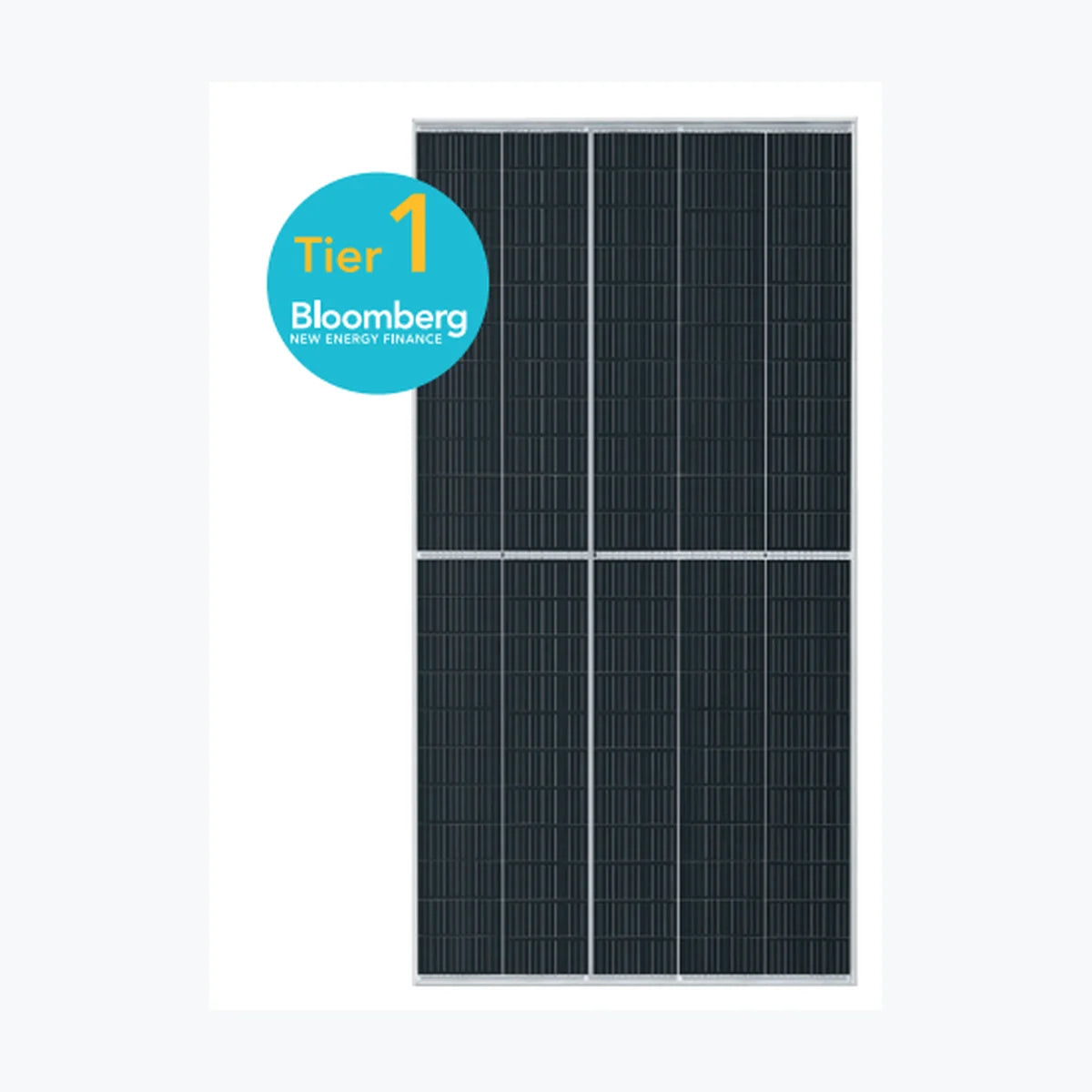

    ABi-Solar AB540-55MHC

    ABi-Solar AB540-55MHC

    $108.00 USD
    $108.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0168
    • Container price: $58,320.00 USD
    • Container qty: 720
    • Mpn: AB540-55MHC
    • Odoo id: 18,032
    • Pallet price: $2,754.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB540-55MHC Product Warranty 15 Years Power Warranty 15 Years of 87.4 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 31.23 V Current at Maximum Power (Impp) 17.31 A Open Circuit Voltage (Voc) 37.54 V Short Circuit Current (Isc) 18.41 A Panel Efficiency 20.67 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 29 V Current at Maximum Power (Impp) 14.1 A Open Circuit Voltage (Voc) 35.3 V Short Circuit Current (Isc) 14.84 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1096x35 mm Weight 28.6 kg Cell Number 110 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Ca

      Technology: PERC
      Power Range: 540 ~ 555 Wp
      Panel Efficiency: 20.67 ~ 21.24 %
      Weight: 28.6 kg
      Seller Name: ABi-Solar Inc
      Country: United States
