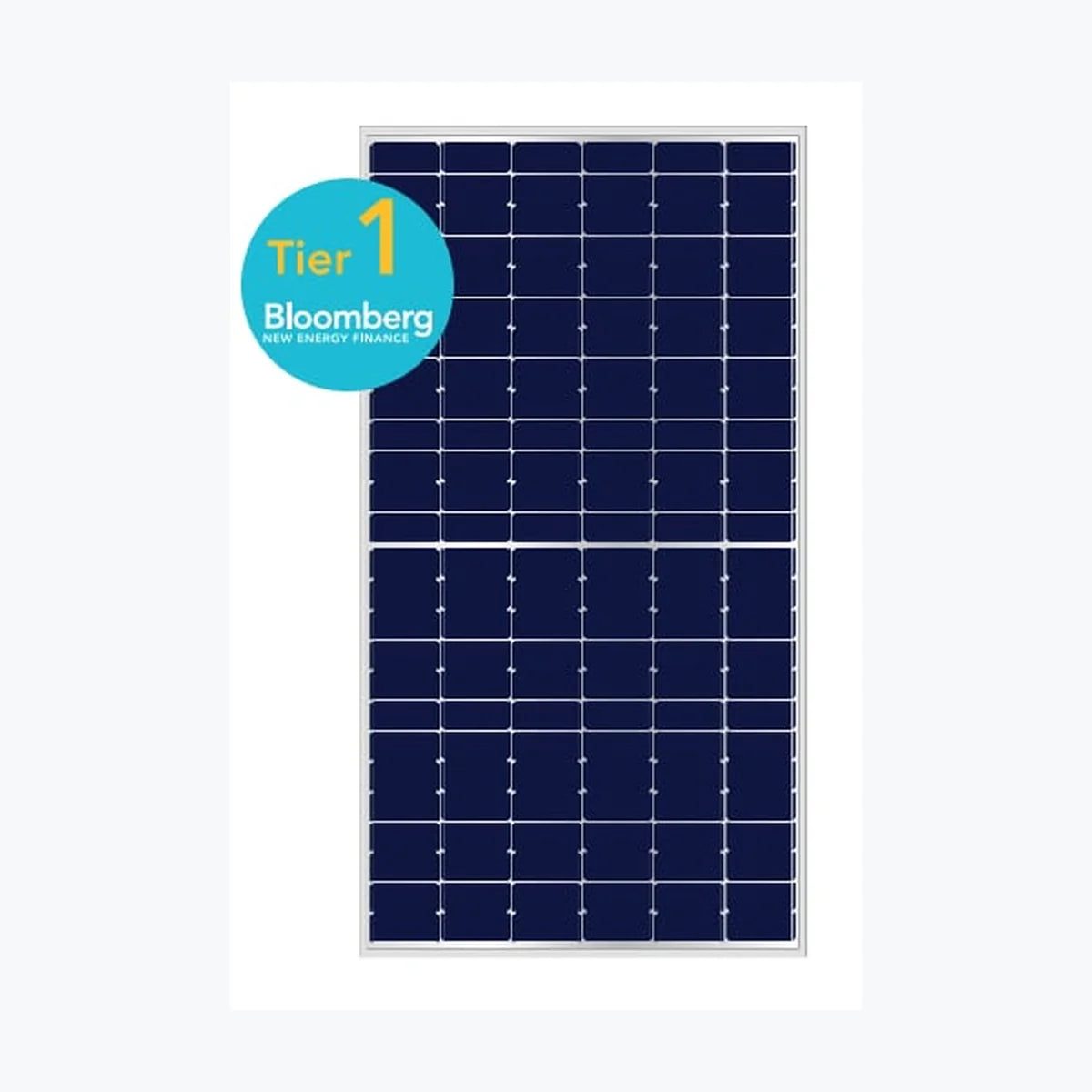

    ABi-Solar AB580-78MHC

    ABi-Solar AB580-78MHC

    $116.00 USD
    $116.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0175
    • Container price: $62,640.00 USD
    • Container qty: 720
    • Mpn: AB580-78MHC
    • Odoo id: 18,269
    • Pallet price: $2,958.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB580-78MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 44.34 V Current at Maximum Power (Impp) 13.09 A Open Circuit Voltage (Voc) 53.54 V Short Circuit Current (Isc) 13.77 A Panel Efficiency 20.76 % Maximum Power (Pmax) 432 Wp Voltage at Maximum Power (Vmpp) 41.29 V Current at Maximum Power (Impp) 10.47 A Open Circuit Voltage (Voc) 50.54 V Short Circuit Current (Isc) 11.12 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2464x1134x35 mm Weight 32.1 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Typ

      Technology: PERC
      Power Range: 575 ~ 590 Wp
      Panel Efficiency: 20.58 ~ 21.12 %
      Weight: 32.1 kg
      Seller Name: ABi-Solar Inc
      Country: United States
