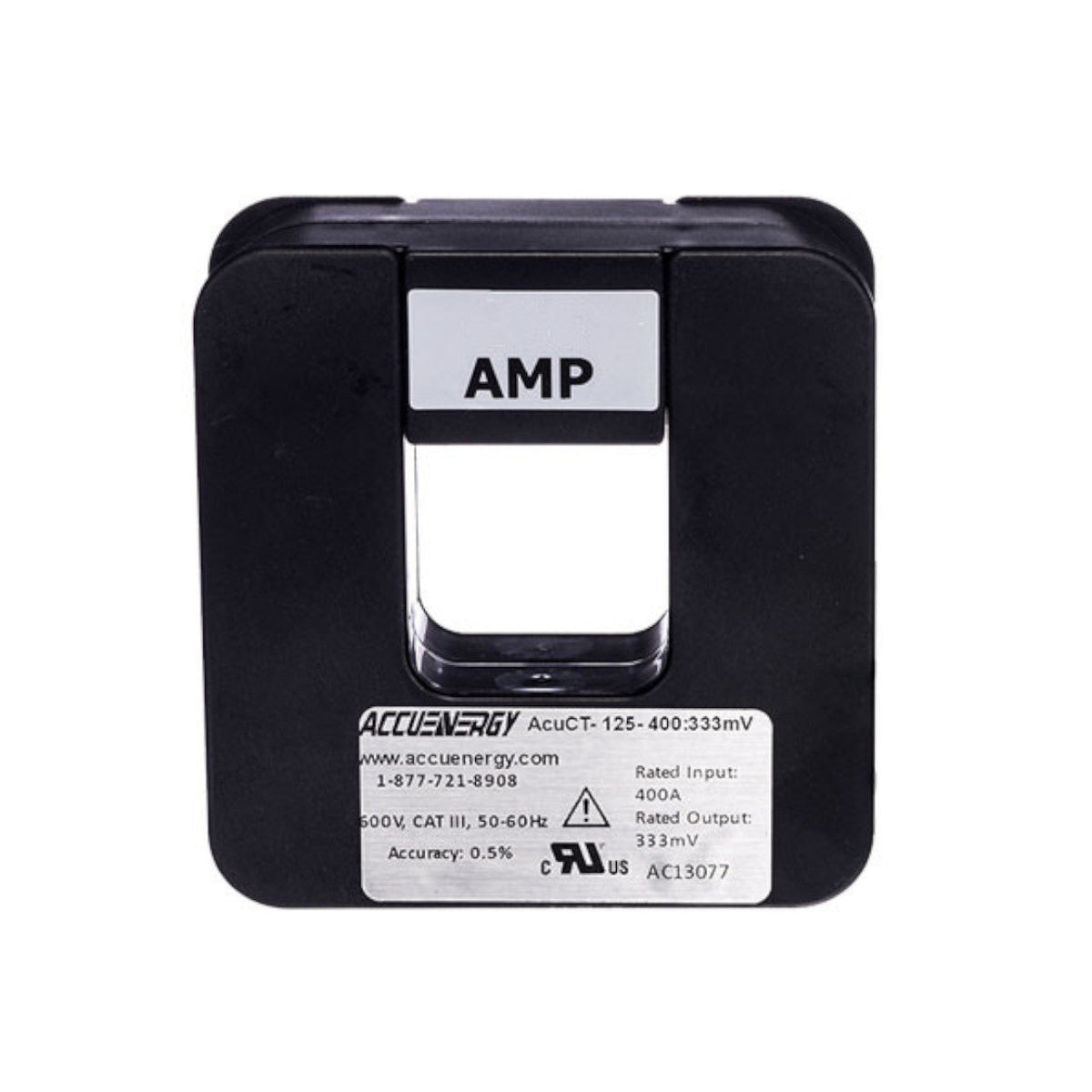

Accuenergy AcuCT Generator Split Core CT for 400A Monitoring

Accuenergy AcuCT Generator current transformers help measure generator current without disconnecting conductors. This model supports 400A input with a 333mV output signal. It uses a split core design for faster installation and safety. The product fits most generator monitoring and metering layouts. It supports safer commissioning when shut-down windows are short.

Product Features

This split core CT is built for generator accessory use cases. The hinged core allows for simple clamp-on installation. It can reduce labor costs during retrofit work. The CT also supports temporary metering during testing phases. The 333mV signal works well with many millivolt-input meters.

The design targets stable readings under typical generator load conditions. It supports monitoring for load balance and trending activities. It helps verify generator capacity and transfer events estimates. The CT is commonly paired with power meters and data loggers for optimized performance.

Related terms include split core current transformer, generator metering, and current sensing. These three terms describe common system roles and reflect typical distribution and controls workflows in generator applications.

How Accuenergy AcuCT Generator Works

The operation of the unit uses magnetic coupling around a conductor. The conductor’s current produces a magnetic field that the CT core captures. Then, the CT converts this into a low-voltage millivolt output signal.

The split core opens and closes easily around the cable, so no conductor removal is necessary. Installers route the CT leads to a compatible meter that converts millivolts into amperes. The meter can also calculate power when voltage inputs are combined.

For best results, keep the CT fully closed and verify the latch is secure. Follow polarity marks where present for correct orientation. This supports accurate phase and power factor calculations in monitoring systems.

Accuenergy AcuCT Generator units are often installed in three-phase sets. One CT is used per phase, supporting kW and kWh calculations. The CTs also enable alarms for overload conditions to safeguard the system.

Applications

This CT is suitable for standby and prime generator monitoring. It fits well inside service panels and generator output cabinets. It supports automatic transfer switch reporting and rental generator verification during commissioning.

Use of this CT is common in industrial facilities. It is also applied in healthcare backup systems. Data centers rely on CTs for branch monitoring, while municipal sites use them for pump station generators.

It supports preventive maintenance workflows effectively. Trending current helps detect imbalance or unusual load steps. The CT also aids audits needed for load growth planning purposes.

Specifications

The listed values reflect the product title and available details. No official manufacturer datasheet was provided. Dimensions and weight remain unconfirmed. Use the table below for procurement comparisons and confirm fit before installation.

For generator metering, always match the meter input to 333mV CTs. Verify that the meter supports 400A scaling correctly. Confirm the conductor can fit through the 1.25 inch window opening. Centering the conductor reduces ratio error for best accuracy.

Consider cable insulation thickness when selecting. Panel clearance must also be checked to ensure proper installation. Lead length affects routing and compatibility. Verify termination type and meter torque requirements before ordering.

Browse related monitoring accessories in our internal collection. Use the page below for compatible distribution items. Generator Accessories Collection

If more sourcing context is needed, run a web lookup with the part number. Google search for AcuCT-125-400 333mV

When installing, follow all local electrical codes. Always de-energize equipment when required. Use appropriate PPE and test procedures to ensure safety. Verify phase labeling before closing panels.

Accuenergy AcuCT Generator readings support generator load studies and transfer testing documentation. They inform fuel usage models indirectly and validate breaker sizing assumptions accurately.

The devices are commonly paired with voltage taps. This enables true power calculations. Without voltage, meters only show current. Choose the right measurement scope based on your application needs.

Installation in three-phase systems requires three matched CTs. Match ratios and output types carefully. Keep orientation consistent across phases to improve computed kW and kvar stability.

Retrofits benefit from split core access. The clamp style reduces outage time and conductor disturbance. It is useful in crowded generator control enclosures where access may be limited.

Maintenance involves inspecting latch integrity and lead condition. Check for loose terminations at the meter and verify readings during scheduled test runs. Proper maintenance ensures long-term reliability.

Data from these CTs supports energy reporting and demand tracking. It helps identify peak event drivers and supports reliability planning for critical loads within a facility.
