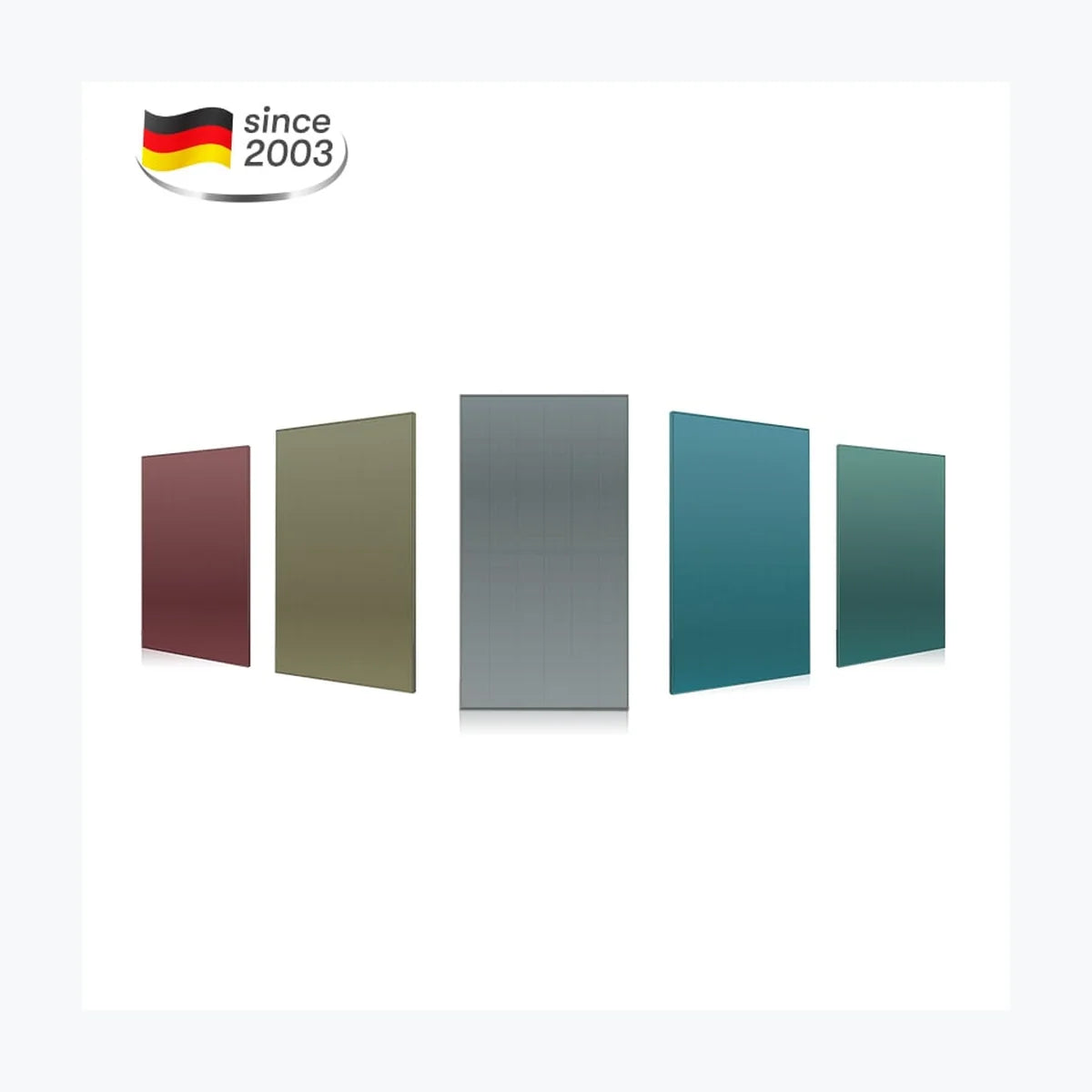

    AESOLAR 475W-1

    AESOLAR 475W-1

    $95.00 USD
    $95.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0317
    • Container price: $51,300.00 USD
    • Container qty: 720
    • Odoo id: 25,427
    • Pallet price: $2,422.50 USD
    • Pallet qty: 30
    • Unit price: $95.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 475W-1 Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 42.07 V Current at Maximum Power (Impp) 11.29 A Open Circuit Voltage (Voc) 45.54 V Short Circuit Current (Isc) 11.74 A Panel Efficiency 20.02 % Maximum Power (Pmax) 353 Wp Voltage at Maximum Power (Vmpp) 37.78 V Current at Maximum Power (Impp) 9.11 A Open Circuit Voltage (Voc) 43.04 V Short Circuit Current (Isc) 9.48 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x35 mm Weight 24 kg Cell Size 182×91 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connecto

      Technology: BIPV
      Power Range: 450 ~ 485 Wp
      Panel Efficiency: 18.97 ~ 20.44 %
      Weight: 24 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
