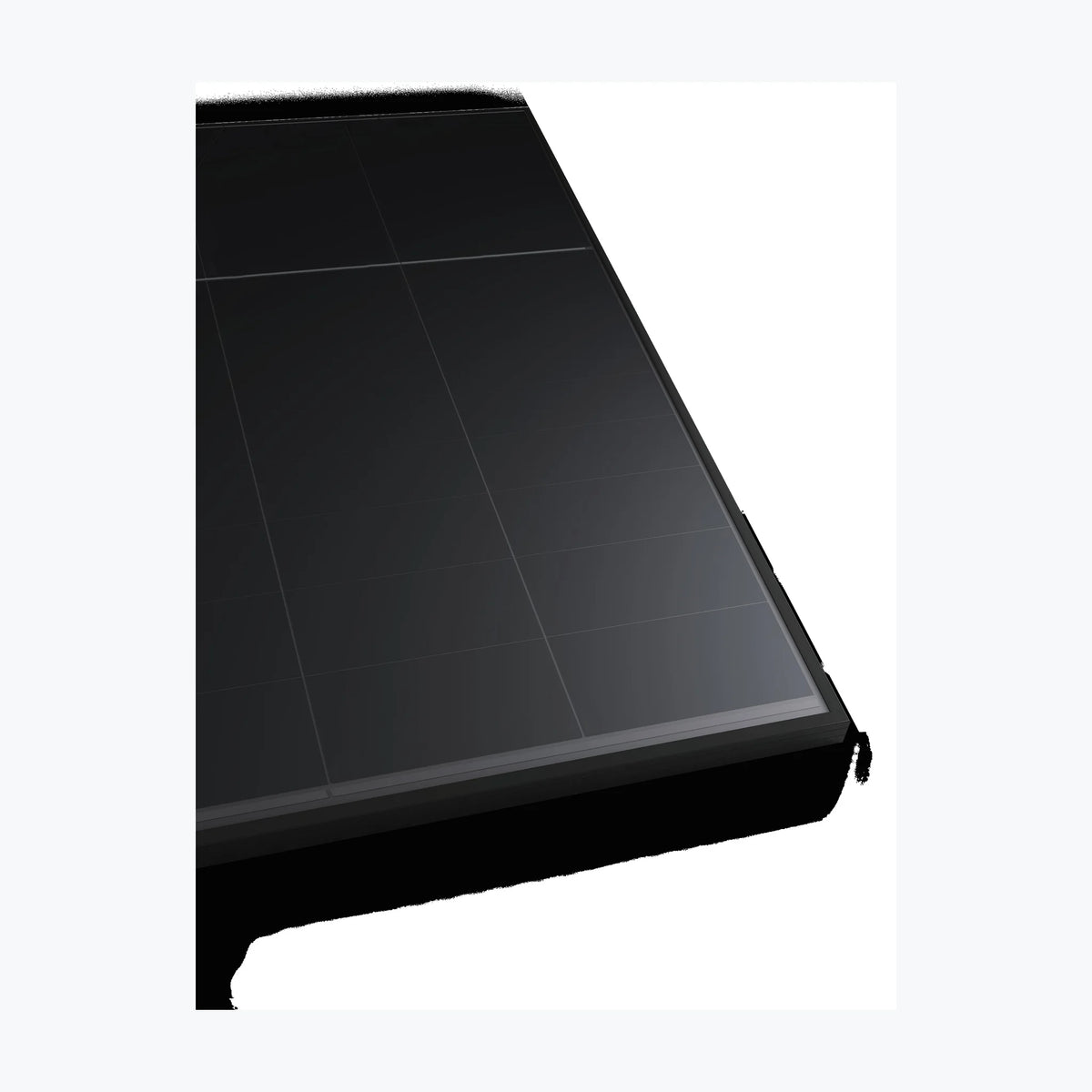

    AIKO AIKO-A430-MAH54Mb

    AIKO AIKO-A430-MAH54Mb

    $86.00 USD
    $86.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0549
    • Container price: $46,440.00 USD
    • Container qty: 720
    • Mpn: AIKO-A430-MAH54M
    • Odoo id: 17,713
    • Pallet price: $2,193.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AIKO-A430-MAH54Mb Product Warranty 15 Years Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 33.3 V Current at Maximum Power (Impp) 12.92 A Open Circuit Voltage (Voc) 40.29 V Short Circuit Current (Isc) 13.69 A Panel Efficiency 22 % Maximum Power (Pmax) 324 Wp Voltage at Maximum Power (Vmpp) 31.45 V Current at Maximum Power (Impp) 10.31 A Open Circuit Voltage (Voc) 38.05 V Short Circuit Current (Isc) 11.07 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.5 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Cros

      Technology: Back Contact, N-type
      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 22 ~ 23 %
      Weight: 20.5 kg
      Seller Name: Shanghai AIKO Energy Co., Ltd.
      Country: China
