1 0

    In Stock

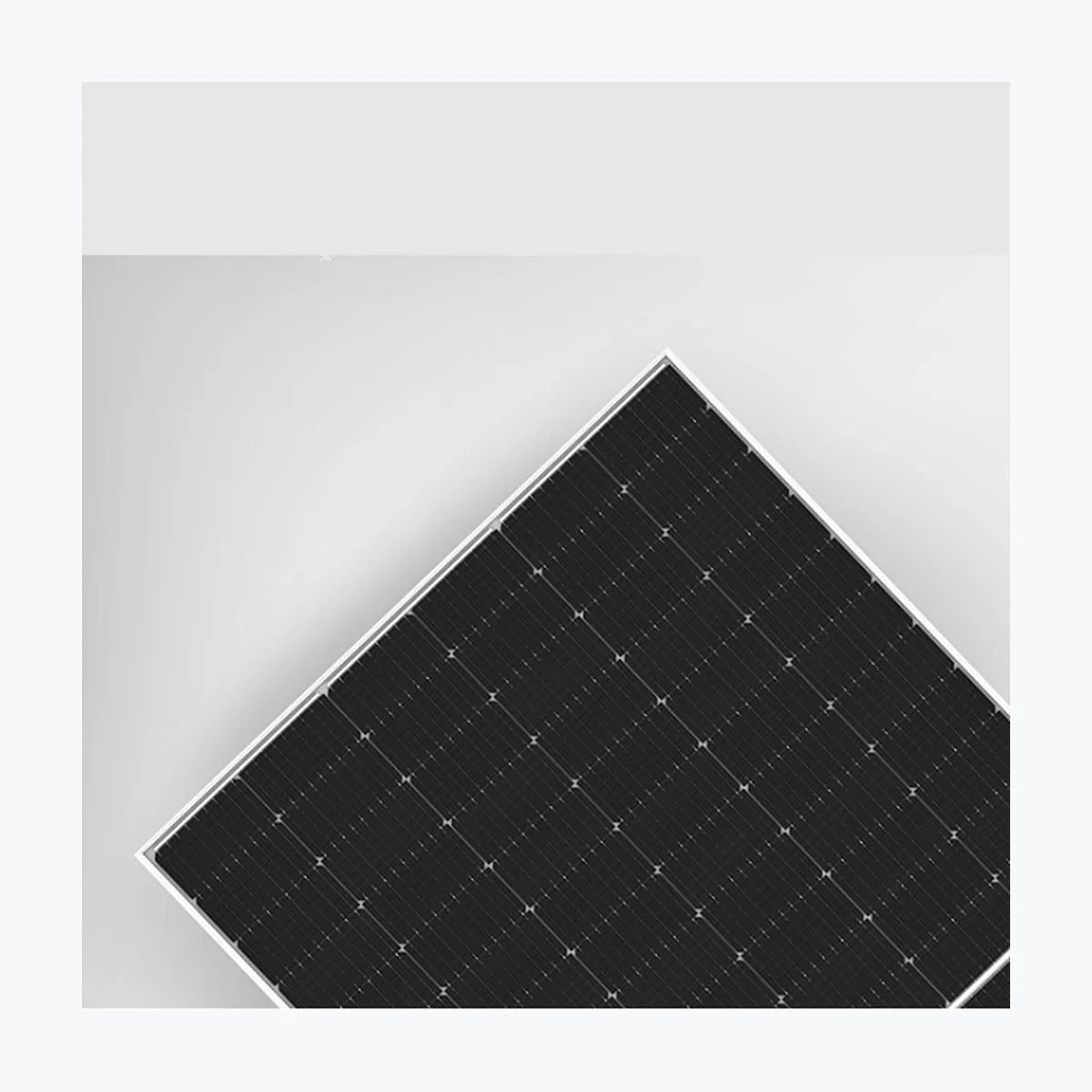

    ALife Solar AL-66HPH-495

    ALife Solar AL-66HPH-495

    $99.00 USD
    $99.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-66HPH-495
    • Container price: $53,460.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-66HPH-495
    • Odoo id: 32,816
    • Pallet price: $2,524.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AL-66HPH-495 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 495 Wp Voltage at Maximum Power (Vmpp) 38.23 V Current at Maximum Power (Impp) 12.95 A Open Circuit Voltage (Voc) 45.4 V Short Circuit Current (Isc) 13.82 A Panel Efficiency 21.1 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.248 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2073x1133x35 mm Weight 25.1 kg Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Power Range: 480 ~ 505 Wp
      Panel Efficiency: 20.4 ~ 21.5 %
      Weight: 25.1 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
