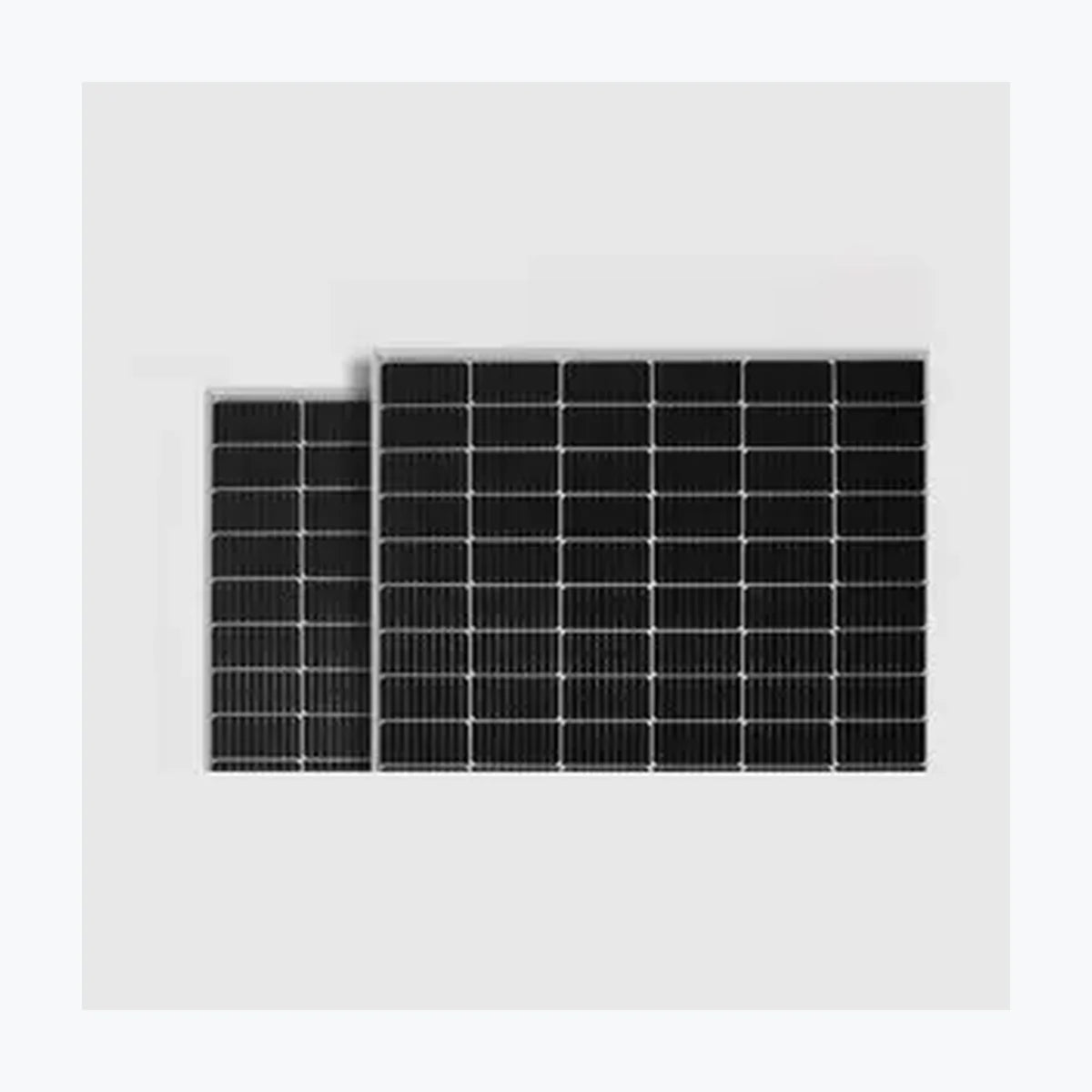

    ALife Solar AL-72HPH-440

    ALife Solar AL-72HPH-440

    $88.00 USD
    $88.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:ALife_Solar-AL-72HPH-440
    • Container price: $47,520.00 USD
    • Container qty: 720
    • Mpn: ALife_Solar-AL-72HPH-440
    • Odoo id: 34,824
    • Pallet price: $2,244.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Model No. AL-72HPH-440 Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 440 Wp Voltage at Maximum Power (Vmpp) 41.1 V Current at Maximum Power (Impp) 10.71 A Open Circuit Voltage (Voc) 48.9 V Short Circuit Current (Isc) 11.46 A Panel Efficiency 20.2 % Maximum Power (Pmax) 328.6 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 8.59 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 9.27 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 23.3 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 430 ~ 460 Wp
      Panel Efficiency: 19.8 ~ 21.2 %
      Weight: 23.3 kg
      Seller Name: ALife Solar Technology Co., Ltd.
      Country: China
