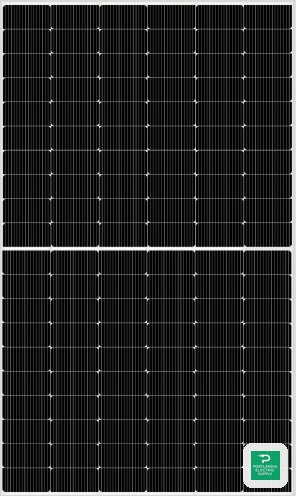

Amerisolar AS-7M120N-BHC-465W
Amerisolar AS-7M120N-BHC-465W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1066
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-7M120N-BHC-465W Product Warranty 30 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 34.89 V Current at Maximum Power (Impp) 13.33 A Open Circuit Voltage (Voc) 42.22 V Short Circuit Current (Isc) 14.07 A Panel Efficiency 21.7 % Maximum Power (Pmax) 350 Wp Voltage at Maximum Power (Vmpp) 32.77 V Current at Maximum Power (Impp) 10.67 A Open Circuit Voltage (Voc) 40.1 V Short Circuit Current (Isc) 11.36 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1908x1134x30 mm Weight 24 kg Cell Size 182×182 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box Diodes 3 Junc
Technology: Bifacial, TOPCon, N-type
Power Range: 465 ~ 485 Wp
Panel Efficiency: 21.7 ~ 22.4 %
Weight: 24 kg
Seller Name: Amerisolar EU
Country: China -
