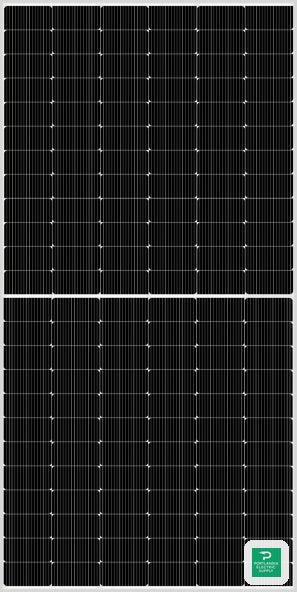

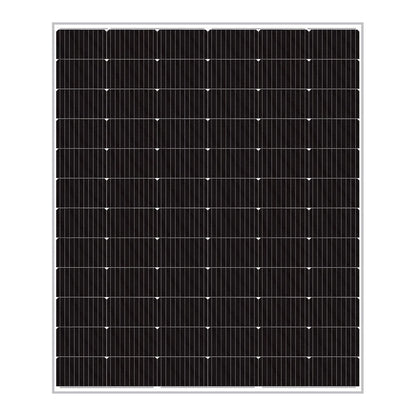

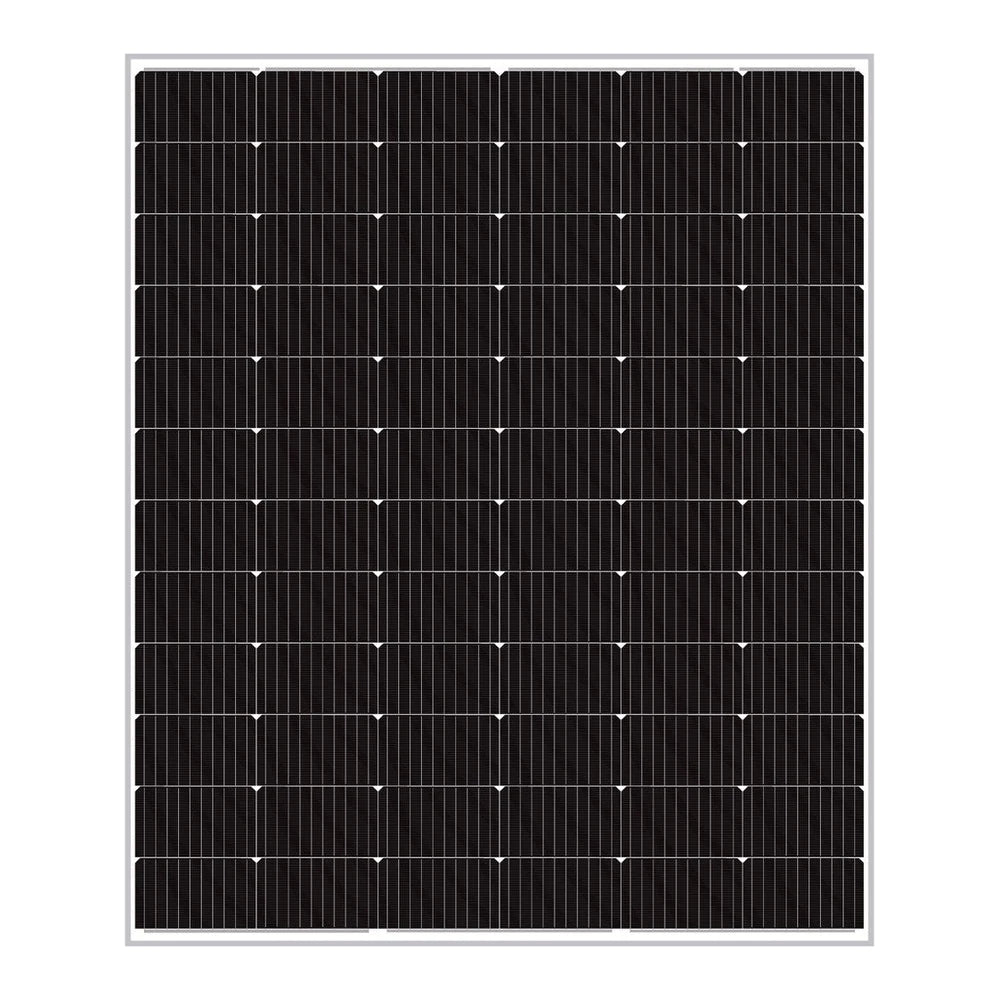

Amerisolar AS-7M144N-BHC-560W
Amerisolar AS-7M144N-BHC-560W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1084
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AS-7M144N-BHC-560W Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 42.2 V Current at Maximum Power (Impp) 13.28 A Open Circuit Voltage (Voc) 50.4 V Short Circuit Current (Isc) 14.04 A Panel Efficiency 21.67 % Maximum Power (Pmax) 421 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 10.61 A Open Circuit Voltage (Voc) 47.9 V Short Circuit Current (Isc) 11.37 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box Diodes 3 Junctio
Technology: Bifacial, TOPCon, N-type
Power Range: 550 ~ 575 Wp
Panel Efficiency: 21.28 ~ 22.25 %
Weight: 32 kg
Seller Name: Amerisolar EU
Country: China -
