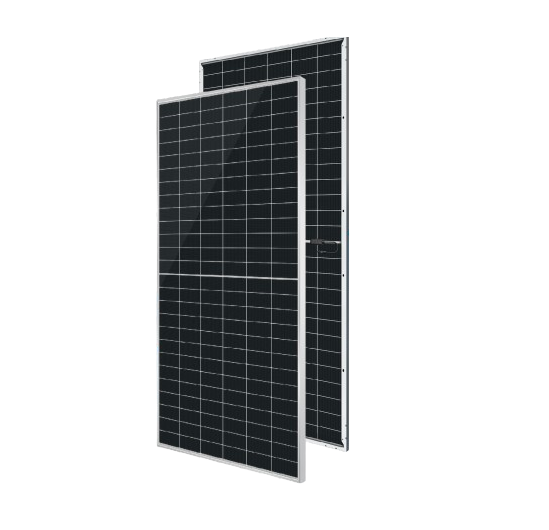

  • Hyundai HiS-T640NJ 640W Clear on White 156 Half-Cell Bifacial N-Type Solar Panel
Hyundai HiS-T640NJ 640W Clear on White 156 Half-Cell Bifacial N-Type Solar Panel
Hyundai HiS-T640NJ 640W Clear on White 156 Half-Cell Bifacial N-Type Solar Panel
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock
SKU  PES-SPS-SPL-0332

Hyundai HiS-T640NJ 640W Clear on White 156 Half-Cell Bifacial N-Type Solar Panel

Hyundai HiS-T640NJ 640W Clear on White 156 Half-Cell Bifacial N-Type Solar Panel

$352.98 USD
$ $352.98 USD
Sale Sold out

$.55/watt

$352.98/per panel

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote

Technical Details

  • SKU:PES-SPS-SPL-0332
  • Documents:

    Datasheet
  • Efficiency:
    • 22.9
  • Mpn number: HiS-T640NJ
  • Panel wattage: 640
  • Price per watt:
    • .55
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details





Hyundai N-Type 640W Bifacial Solar Panel

Model HiS-T640NJ | 156 Half-Cut N-Type TOPCon Cells | Bifacial | 605.6W PTC | 30-Year Warranty

640 W
Power Output
22.9%
Efficiency
156 Cell
Configuration

Product Overview

Harness the power of HD Hyundai's premium TOPCon technology with the HiS-T640NJ, a high-output bifacial module engineered for commercial and utility-scale applications. This 640W panel features 156 half-cut N-type monocrystalline TOPCon cells with 16-busbar design, delivering an exceptional 22.90% module efficiency and 80% bifaciality factor for significant rear-side energy gains. The glass-glass construction with clear anodized aluminum frame and semi-tempered solar glass on both front and rear surfaces ensures outstanding durability and long-term reliability. With a verified 605.6W PTC rating demonstrating real-world performance, this panel is purpose-built for large-scale ground-mount and commercial rooftop installations. Rated for 1500V DC systems and backed by a 12-year product warranty and 30-year linear performance guarantee.

Key Benefits

N-Type TOPCon Cell Technology: Advanced Tunnel Oxide Passivated Contact (TOPCon) cells deliver industry-leading 22.90% module efficiency with lower degradation rates, superior low-light performance, and excellent temperature coefficients compared to conventional PERC technology.

High Bifaciality (80%): Dual-glass bifacial design with 80% bifaciality factor captures reflected and diffused light from rear surfaces, boosting total energy generation by up to 25% in optimal ground-mount installations with high-albedo surfaces.

Glass-Glass Durability: 2.0mm semi-tempered solar glass on both front and rear surfaces provides superior mechanical strength, enhanced PID resistance, and long-term protection against environmental degradation for a 30+ year service life.

PTC Rated Performance: 605.6W PTC rating demonstrates real-world efficiency under actual operating conditions, providing reliable performance expectations for system designers and EPC contractors.

Ultra-High Power Density: 640W output from 156 half-cut cells with 16-busbar design maximizes power per unit area, reducing installation footprint, racking, and balance of system costs for large-scale projects.

Genuine Stäubli MC4 Connectors: Factory-fitted genuine Stäubli MC4 connectors ensure reliable, low-resistance electrical connections and full compatibility with industry-standard wiring systems.

How It Works

This solar panel harnesses sunlight through its advanced N-type TOPCon monocrystalline silicon cells, utilizing tunnel oxide passivation to transform solar energy into electricity with exceptional efficiency. The bifacial glass-glass design captures both direct sunlight and reflected light from surrounding surfaces for maximum energy generation.

TOPCon Cell Architecture: Tunnel Oxide Passivated Contact technology creates an ultra-thin oxide layer on the cell rear, dramatically reducing recombination losses and enabling higher open-circuit voltages for superior energy conversion efficiency.

Half-Cut Cell Design: 156 half-cut cells arranged in a 6×26 configuration reduce internal resistance and power loss, improving shading tolerance and delivering higher energy yields in real-world conditions.

Bifacial Glass-Glass Construction: Semi-tempered solar glass on both front and rear surfaces enables rear-side energy capture from reflected and diffused light while providing exceptional mechanical protection and long-term durability.

Technical Specifications

Manufacturer HD Hyundai Energy Solutions
Model Number HiS-T640NJ
Power Output (Pmax) 640 W (0~+5W tolerance)
PTC Rating 605.6 W
Module Efficiency 22.90%
Cell Type Mono N-Type TOPCon, Bifacial
Cell Configuration 156 Half-Cut Cells (6×26, 16BB)
Bifaciality 80% ± 5%
System Voltage 1,500 V DC
Max Reverse Current 30 A
Temperature Coefficient (Pmax) -0.290%/K
NMOT 41°C ± 2°C
Open Circuit Voltage (Voc) 57.77 V
Short Circuit Current (Isc) 14.06 A
Voltage at Pmax (Vmpp) 47.74 V
Current at Pmax (Impp) 13.41 A
Dimensions 2,465 × 1,134 × 30 mm (97.0 × 44.6 × 1.2 in)
Weight 34.7 kg (76.5 lbs)
Frame 30 mm Clear Anodized Aluminum
Front Glass 2.0 mm Semi-Tempered Solar Glass, Anti-Reflective
Rear Glass 2.0 mm Semi-Tempered Solar Glass
PV Wire (+) 500 mm (~19.7 in) / (-) 300 mm (~11.8 in)
Connector Stäubli MC4 (Genuine), IP68
Junction Box 3-Part, 3 Bypass Diodes, IP68
Fire Rating UL Type 29

Certifications & Warranty

Cell Technology: N-Type TOPCon Monocrystalline, Bifacial, 156 Half-Cut Cells (16BB)
Design: Clear on White (Clear Frame, Glass-Glass Bifacial)
Certifications: UL 61730, IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001
Fire Rating: UL Type 29
Max Test Load: 5,400 Pa (front) / 2,400 Pa (rear)
Product Warranty: 12 Years
Performance Warranty: 30 Years Linear Performance Guarantee (≤1.0% Year 1, ≤0.4%/yr thereafter, 87.4% guaranteed at Year 30)

● Available | Contact us for lead time and pricing
