APsystems 408005

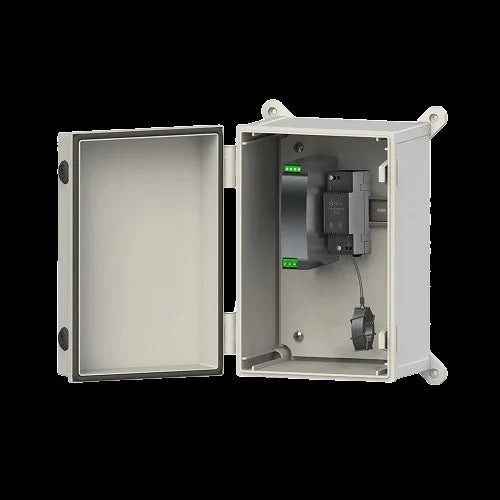

APsmart Dual Core Transmitter-PLC Outdoor Kit IP65 with 277/480 VAC Power Supply

The APsmart Dual Core Transmitter-PLC Outdoor Kit, model 408005, is engineered for seamless integration with photovoltaic systems, specifically designed to enhance their performance and safety. This advanced transmitter operates efficiently even under extreme conditions, ensuring rapid shutdown capabilities in compliance with safety standards. Ideal for both residential and commercial applications, it combines durability with powerful functionality, making it an essential component for modern solar energy solutions.

Product Features

Enhanced Rapid Shutdown Capabilities

This transmitter offers a crucial safety feature by disconnecting PV modules quickly during emergencies, ensuring compliance with NEC 2017 requirements. The APsmart 408005 provides reliable shutdown, helping to maintain safe operating conditions for your solar power system.

Versatile Power Supply Options

Equipped with options for both 85-264VAC and 180-550VAC power supplies, the Transmitter-PLC is adaptable to various installation environments. This makes it suitable for diverse projects, enhancing usability in both residential and commercial settings.

Robust Outdoor Performance

Designed to withstand challenging weather conditions, the IP65-rated outdoor enclosure protects internal components from dust and moisture, extending the life of the transmitter. This ensures reliable operation regardless of environmental factors, thus enhancing overall system efficiency.

Compact and Efficient Design

The APsmart Dual Core Transmitter-PLC is designed with a compact footprint, facilitating easy installation in tight spaces. Its efficient design maximizes space while maintaining optimal performance for rapid shutdown operations in solar power systems.

Easy Integration with APsmart RSD-S-PLC

This kit works seamlessly with the APsmart RSD-S-PLC, creating a comprehensive solution for rapid shutdown in solar installations. With straightforward wiring and setup, users can quickly connect the transmitter to the RSD-S-PLC and ensure reliable energy production and safety.

How It Works

The APsmart Dual Core Transmitter-PLC functions by sending signals to the RSD-S-PLC, enabling efficient management of the photovoltaic system. This interconnection ensures that PV modules can be rapidly disconnected in case of emergencies, allowing for immediate safety measures. The transmitter plays a pivotal role in maintaining system integrity and compliance with electrical safety standards.

Communication Protocol

The transmitter utilizes PLC (Power Line Communication) to effectively communicate with the connected RSD-S-PLC units. This allows for real-time adjustments and ensures that the shutdown process is executed promptly during emergency situations.

System Monitoring

By continuously monitoring the operational status of the solar energy system, the transmitter assures rapid response to any irregularities, further ensuring user safety and system reliability during harsh conditions.

Power Supply Management

With its dual power supply options, the transmitter facilitates varied input voltages, hence accommodating different installation requirements while ensuring a consistent power flow for effective operation.

Specifications
