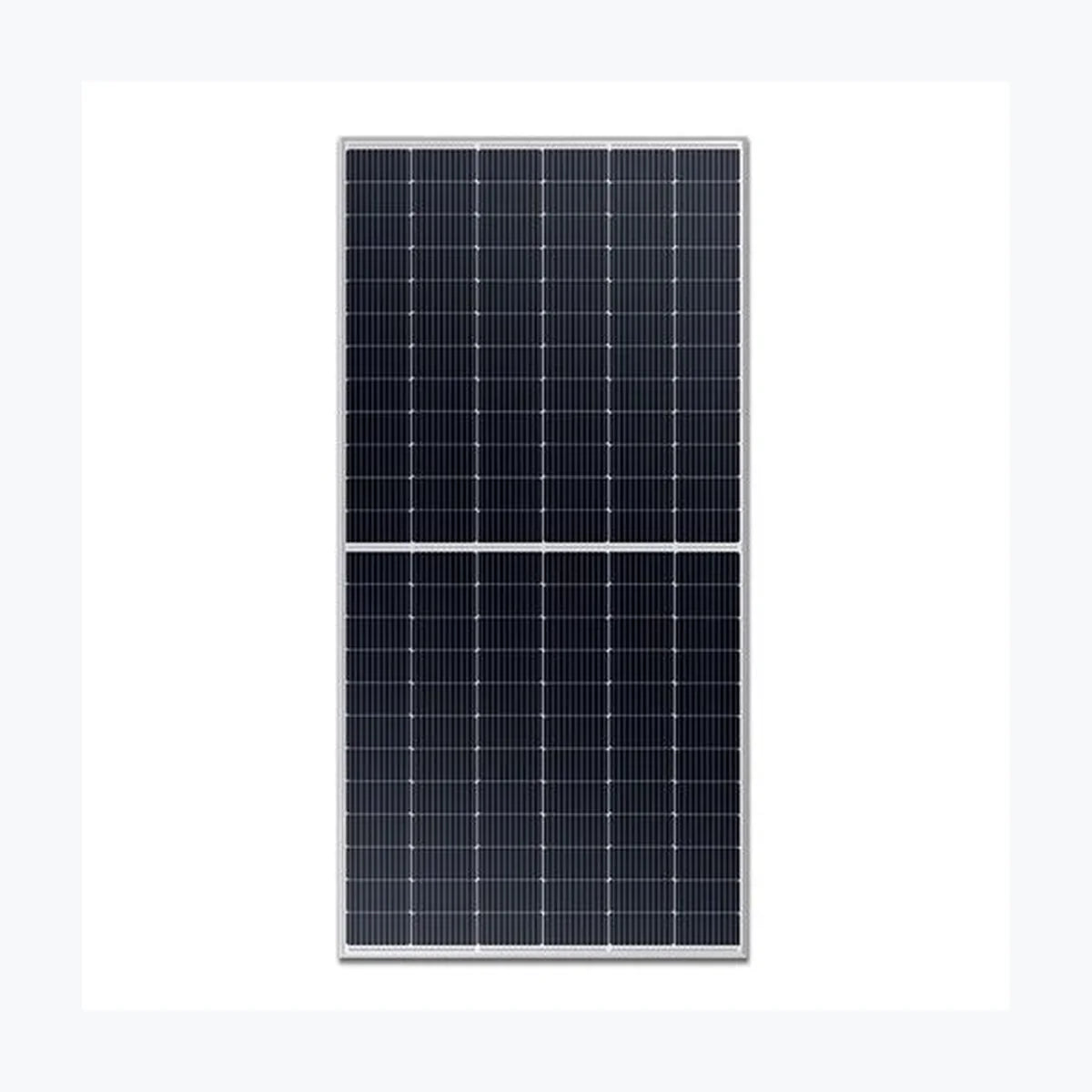

    BR Solar Group BR-M540W

    BR Solar Group BR-M540W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1890
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. BR-M540W Product Warranty 12 Years Power Warranty 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 41.3 V Current at Maximum Power (Impp) 12.83 A Open Circuit Voltage (Voc) 49.3 V Short Circuit Current (Isc) 13.72 A Panel Efficiency 20.5 % Maximum Power (Pmax) 401 Wp Voltage at Maximum Power (Vmpp) 38.6 V Current at Maximum Power (Impp) 10.39 A Open Circuit Voltage (Voc) 46.2 V Short Circuit Current (Isc) 11.01 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x30 mm Weight 28 kg Cell Size 182×182 mm Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 540 ~ 560 Wp
      Panel Efficiency: 20.5 ~ 21.3 %
      Weight: 28 kg
      Seller: Yangzhou Bright Solar Solutions Co., Ltd.
      Country: China
