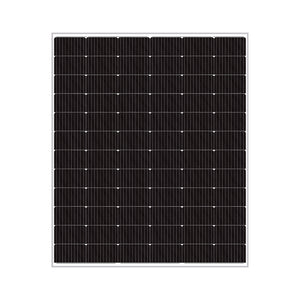

CNBM SKT460M6 460W PERC Monocrystalline Solar Panel
SKT460M6 | PERC Technology | 144 Half-Cell | Monocrystalline | 1500V System Voltage
Product Overview
The CNBM SKT460M6 is a high-performance solar panel designed for maximum energy generation. This monocrystalline module delivers 460 watts of power with impressive 21.2% efficiency. It utilizes advanced PERC technology to capture more light even in low-light conditions. The panel features 144 half-cut cells arranged in a 2x72 configuration for reduced resistance. Its robust dual-glass design ensures exceptional durability against mechanical loads and environmental stress. Installers benefit from its lightweight 23.3 kg frame and standard 2094mm dimensions. This CNBM SKT460M6 is ideal for residential rooftops and large commercial solar farms. It supports a maximum system voltage of 1500Vdc for versatile grid integration. The anti-reflective coating minimizes light loss while maximizing photon absorption. Built with tempered glass and an anodized aluminum frame, it withstands harsh weather. This solar solution offers a reliable 12-year product warranty and a 25-year power warranty. Energy independence becomes achievable with this efficient and durable photovoltaic module.
Key Benefits
High Power Output: Generates 460Wp to maximize energy savings for your property.
Superior Efficiency: Achieves 21.2% module efficiency for optimal space utilization.
PERC Technology: Enhances light capture in low-light and cloudy weather conditions.
Dual-Glass Durability: Features anti-PID and 5400Pa mechanical load resistance for longevity.
Long Warranty Period: Includes 12-year product and 25-year power warranty protection.
How It Works
This CNBM SKT460M6 solar panel converts sunlight into usable electricity through advanced photovoltaic principles. Sunlight photons strike the 144 monocrystalline silicon cells embedded within the module. The PERC layer on the cells reflects unabsorbed light back for a second absorption chance. This process creates electron-hole pairs that generate a direct current flow. The half-cut cell design reduces internal resistance and improves overall power output. The system operates efficiently across a wide temperature range from -40°C to 85°C. An IP68-rated junction box ensures safe connection and protection against moisture ingress. The anti-reflective coating on the tempered glass minimizes light reflection losses. This technology ensures consistent energy generation even during morning or evening hours. The dual-glass structure provides structural integrity against wind and snow loads effectively.
Photon Absorption: Sunlight hits the silicon cells to release electrons and create current flow. The PERC layer captures reflected light for additional energy generation.
Half-Cut Design: Cells are cut in half to reduce electrical resistance within the module. This design lowers heat generation and increases total power output.
Dual-Glass Protection: Two layers of tempered glass shield the cells from physical damage and moisture. This structure prevents degradation from humidity and UV exposure over time.
Technical Specifications
| Maximum Power (Pmax) | 460 Wp |
| Module Efficiency | 21.2% |
| Cell Technology | PERC Monocrystalline |
| Cell Count | 144 Half-Cells (2x72) |
| Cell Size | 166mm x 166mm |
| Voltage at Pmax (Vmpp) | 41.9 V |
| Current at Pmax (Impp) | 10.98 A |
| Open Circuit Voltage (Voc) | 49.7 V |
| Short Circuit Current (Isc) | 11.73 A |
| Power Tolerance | 0 ~ +1% |
| Maximum System Voltage | 1500 Vdc |
| Series Fuse Rating | 20 A |
| Dimensions (H/W/D) | 2094 x 1038 x 35 mm |
| Weight | 23.3 kg |
| Glass Type | AR Coated Tempered Glass (2mm) |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box Protection | IP68 |
| Operating Temperature | -40°C to +85°C |
| Nominal Cell Temperature | 45 ± 2°C |
| Pmax Temp Coefficient | -0.35%/°C |
| Voc Temp Coefficient | -0.275%/°C |
| Isc Temp Coefficient | +0.045%/°C |
| Total Degradation Rate | 84.8% after 25 Years |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, UL 1703, ISO 9001
Inverter Compatibility: Compatible with all major string inverters (1500Vdc max)
Environmental: Anti-PID, Anti-LID, Low-light performance, RoHS compliant
Warranty: 12-Year Product Warranty | 25-Year Power Warranty (84.8% output)
