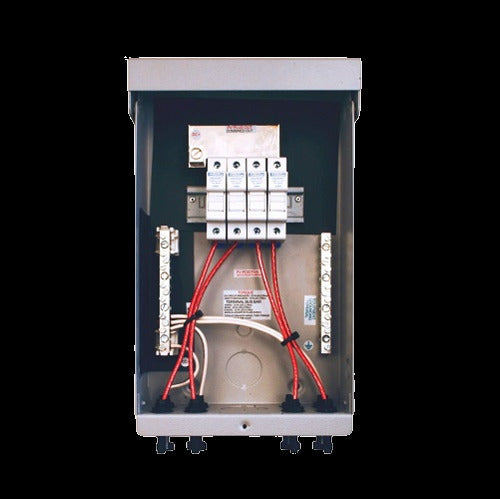

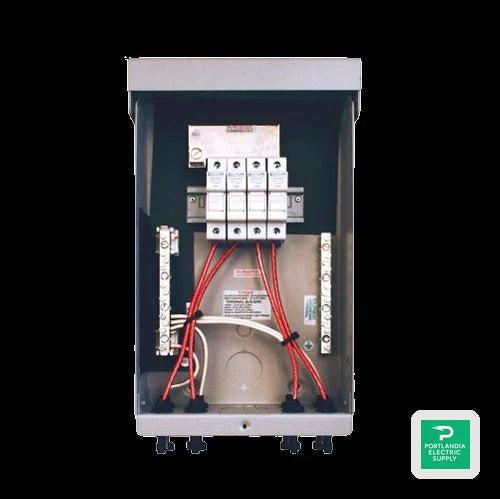

Midnite Solar Combiner Box - MNPV4-MC4

Midnite Solar Combiner Box - MNPV4-MC4

Regular price $314.49 USD
Regular price Sale price $314.49 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

View full details
  • MidNite Solar Combiner Box - MNPV4-MC4

    The MidNite Solar MNPV4-MC4 is designed to simplify PV system installation by combining multiple PV source circuits into a single output. Featuring robust construction and advanced functionality, this combiner box is ideal for both residential and commercial solar applications. With the ability to support various configurations, it ensures efficient and safe solar power system integration.

    Product Features

    Robust Enclosure Design

    The MNPV4-MC4 features a durable aluminum type 3R rainproof enclosure that protects internal components from environmental elements, ensuring longevity and reliability in diverse conditions.

    Versatile Circuit Options

    This combiner box accommodates multiple circuit breaker and fuse holder configurations, offering flexibility to meet specific PV system requirements and enhance system safety and functionality.

    Integrated Bus Bars

    For streamlined connectivity, it includes a 15-position PV negative bus bar, 14-position ground bus bar, and 120-amp Plus bus bar, simplifying system wiring and improving installation efficiency.

    Professional Installation Features

    The inclusion of punch-out tabs and snap-in adapters provides a clean and professional installation appearance, whether using breakers or fuse holders, enhancing the overall aesthetic and functionality of your solar setup.

    Dual Inverter or Controller Support

    The plus bus bar can be split to independently connect two grid tie inverters or charge controllers, offering versatility and adaptability for complex solar power systems.

    How It Works

    The MidNite Solar MNPV4-MC4 simplifies PV system management by grouping multiple PV sources into a single output. It features integrated components that enhance protection and flexibility for safe, efficient solar energy distribution.

    Protection Through Circuit Integration

    The combiner box ensures system reliability by integrating circuit breakers and fuses based on the specific voltage and current requirements of the installed PV system.

    Advanced Bus Bar Design

    Its advanced bus bar design facilitates seamless electrical connections, minimizing losses and optimizing electrical flow for maximum power output.

    Weather Resistant Enclosure

    The weather-resistant enclosure is designed to prevent moisture and debris ingress, safeguarding electrical components and maintaining system performance.

    Specifications

    Max VDC Input 150 VDC / 600 VDC
    Max Number of Input Circuits 6
    Max Output Current 80/120 Amps
    Wire Range - Input 14-6 AWG
    Wire Range - Output 14-1/0 AWG
    Operating Temperature Range 90 to 140°F
    Enclosure Type Type 3R
    Enclosure Material Aluminum
    Listings UL1741
    Weight 4 lbs
