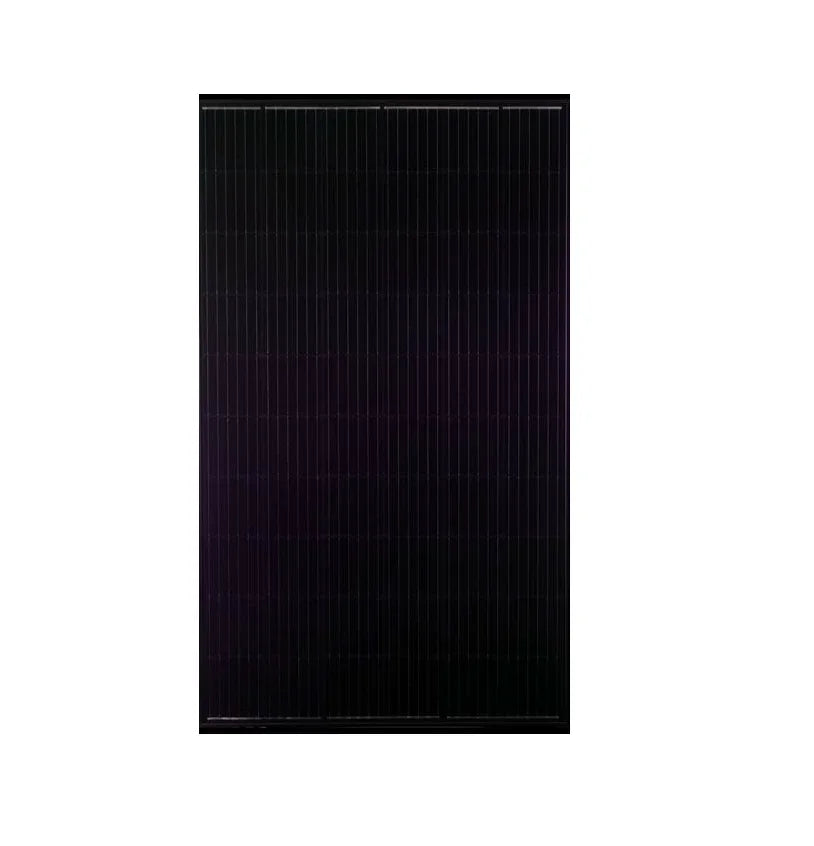

Mission Solar 340W Black On Black 60 Cell Mono Solar Panel - MSE340SX5T
Mission Solar 340W Black On Black 60 Cell Mono Solar Panel - MSE340SX5T
$1/watt
Specification
- SKU:PES-SPS-SPL-0115
- Brands: Mission Solar
- Documents:
- Height: 4
- Length: 174.8
- Panel wattage: 340
- Width: 105.4
-
Product Description
Mission Solar 340W Black On Black 60 Cell Mono Solar Panel
The Mission Solar MSE340SX5T panel combines advanced solar technology with high efficiency to deliver reliable power for residential and commercial applications. Manufactured in America, these panels ensure unmatched quality and performance, providing optimal energy output with true American craftsmanship.
Product Features
Class-Leading Energy Output
The Mission Solar MSE340SX5T offers a substantial power output of 340W, allowing for enhanced energy capture and usage efficiency, effectively meeting your renewable energy needs.
High Efficiency Ratings
Featuring an impressive module efficiency of up to 19%, these solar panels maximize energy output, even in space-constrained installations, ensuring efficient energy use.
Durability and Weather Resistance
With a robust design that withstands up to 5,600 Pa of front load and 5,631 Pa of back load, the Mission Solar panels are engineered for resilience in extreme weather conditions, ensuring longevity and performance.
Certified Quality and Compliance
These panels are rigorously tested against UL and IEC standards, demonstrating their reliability and resistance to environmental factors, such as salt mist corrosion, for sustained, high performance.
BAA Compliant Construction
Manufactured in accordance with the Buy American Act, these panels are suitable for government projects and demonstrate compliance with the highest American manufacturing standards.
How It Works
Leveraging P-type mono-crystalline silicon, the Mission Solar MSE340SX5T converts sunlight into electricity with superior efficiency. These panels utilize advanced 6 Busbar and Passivated Emitter Rear Contact technologies to enhance the absorption and conversion of solar energy.
Advanced Solar Cells
P-type mono-crystalline silicon cells deliver high performance and superior efficiency, converting sunlight into usable energy even in low-light conditions.
Innovative Frame and Glass Design
The anodized frame and 3.2mm tempered glass protect against the elements while optimizing energy absorption and minimizing reflection losses.
High-Quality Electrical Components
Equipped with Junction Box Protection class IP67 and durable Staubli connectors, these panels ensure secure and reliable electrical connections.
Specifications
Power Output (Pmax) 340W-350W Module Efficiency 18.5% - 19.0% Operating Temperature Range -40C to +85C Maximum System Voltage 1,000V Maximum Series Fuse Rating 20A Dimensions 1748mm x 1054mm x 40mm Weight 20.3 kg Temperature Coefficient of Pmax -0.361%/C Junction Box IP67, with 3 bypass-diodes Warranty 25 years with degradation guarantee -
