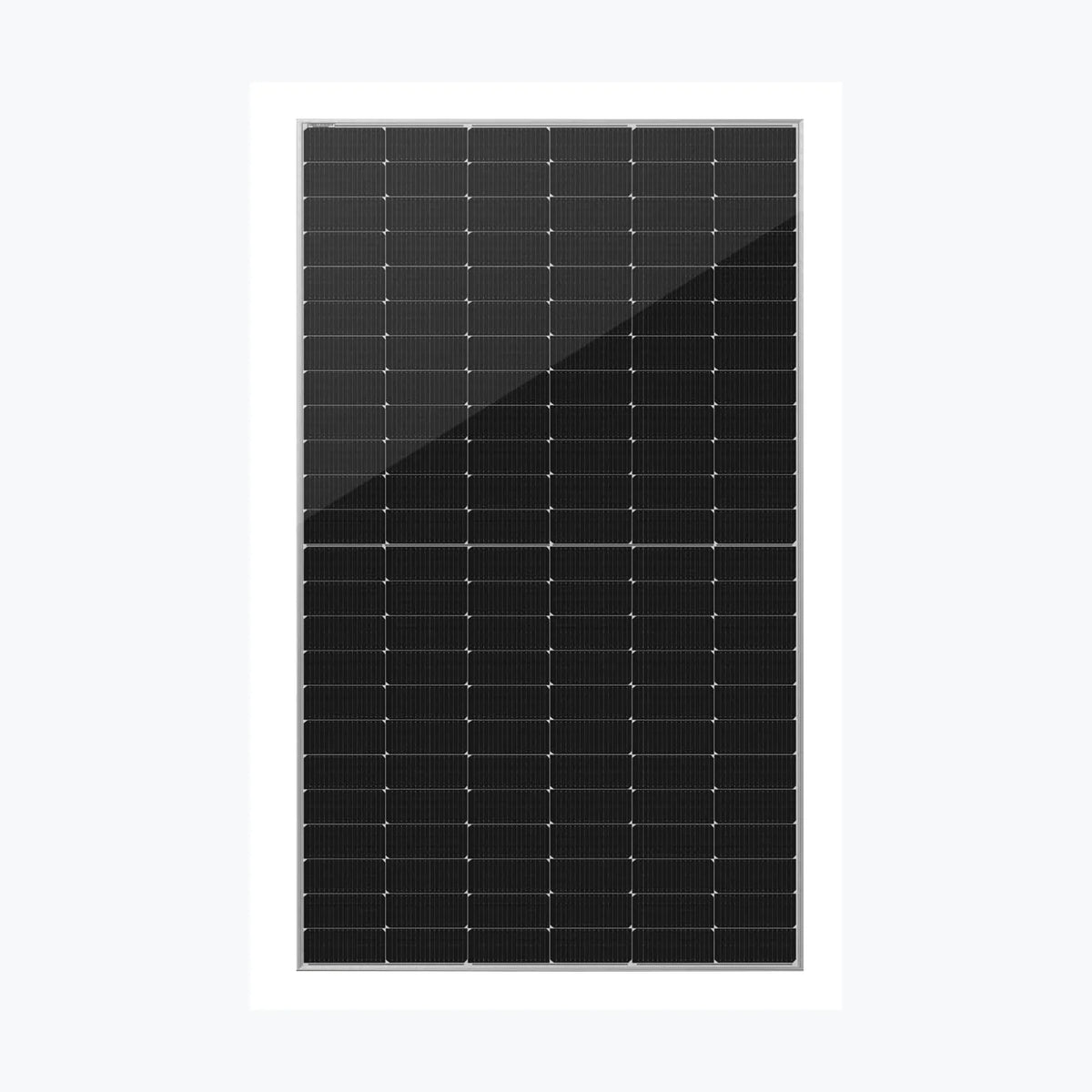

Mysolar USA MS570N-DHBA
PayPal Pay in 4 interest-free payments of $50.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12913
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. MS570N-DHBA Product Warranty 25 Years Power Warranty 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 570 Wp Voltage at Maximum Power (Vmpp) 42.07 V Current at Maximum Power (Impp) 13.55 A Open Circuit Voltage (Voc) 50.74 V Short Circuit Current (Isc) 14.31 A Panel Efficiency 22.1 % Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 31.6 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon
Power Range: 565 ~ 585 Wp
Panel Efficiency: 21.9 ~ 22.65 %
Weight: 31.6 kg
Seller Name: Mysolar Manufacturing USA Inc.
Country: United States
| SKU | PES-SPS-SOL-12913 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
