Out of Stock

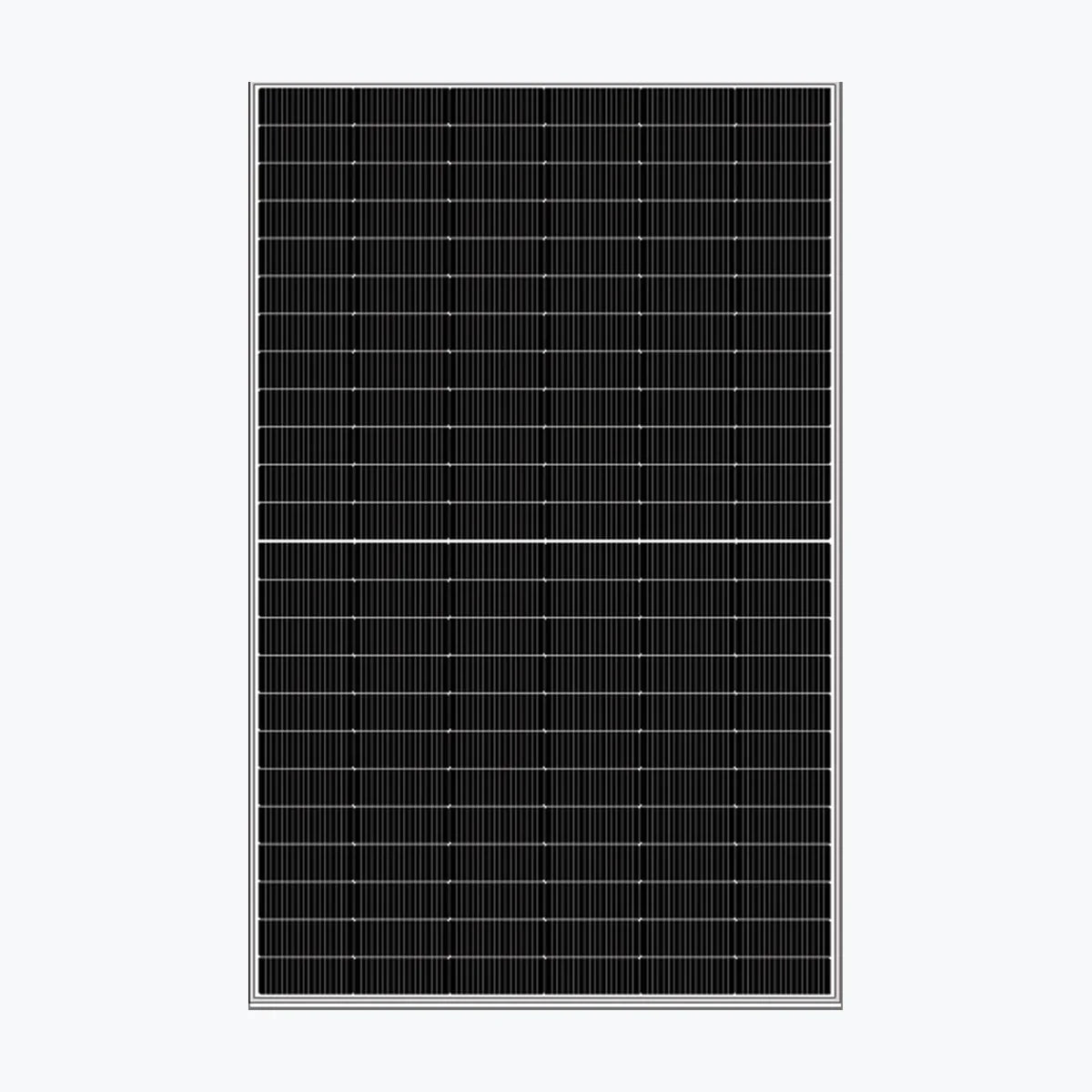

Ocean Solar AOX-144M10RHC435W
Ocean Solar AOX-144M10RHC435W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-13566
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AOX-144M10RHC435W Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 42.4 V Current at Maximum Power (Impp) 10.26 A Open Circuit Voltage (Voc) 50.4 V Short Circuit Current (Isc) 10.83 A Panel Efficiency 21.8 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 39.6 V Current at Maximum Power (Impp) 8.33 A Open Circuit Voltage (Voc) 47.6 V Short Circuit Current (Isc) 8.8 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 20 kg Cell Size 182×70 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: TOPCon, N-type
Power Range: 430 ~ 460 Wp
Panel Efficiency: 21.5 ~ 23 %
Weight: 20 kg
Seller: Jiangsu Ocean Solar Co., Ltd.
Country: China -
