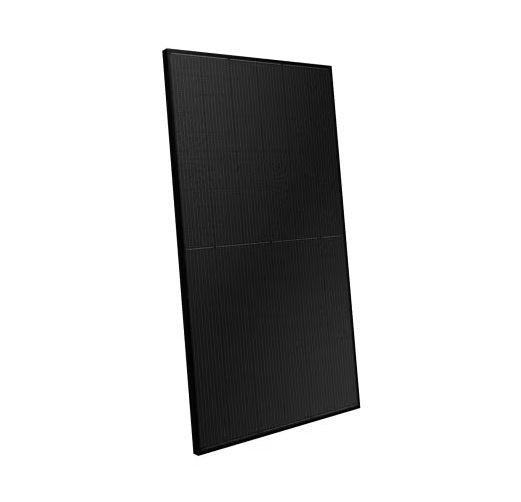

Peimar DR10H450MB 450W Black on Black 120 Half-Cell Mono Solar Panel
Peimar DR10H450MB 450W Black on Black 120 Half-Cell Mono Solar Panel
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock
SKU  PES-SPS-SPL-0334

Peimar DR10H450MB 450W Black on Black 120 Half-Cell Mono Solar Panel

Peimar DR10H450MB 450W Black on Black 120 Half-Cell Mono Solar Panel

Regular price $154.98 USD
Regular price $ Sale price $154.98 USD
Sale Sold out

$.34/watt

$154.98/per panel

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote

Technical Details

  • SKU:PES-SPS-SPL-0334
  • Documents:
  • Efficiency:
    • 20.82
  • Mpn number: DR10H450MB
  • Pallet container quantity:
    • 31
  • Panel wattage: 450
  • Price per watt:
    • .34
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone Mon-Fri 10am-6pm EST
View full details





Peimar DR Series 450W Black-on-Black Solar Panel

Model DR10H450MB | 120 Half-Cut Mono PERC Cells | 9BB | All-Black Design | 30/25 Warranty

450 W
Power Output
20.82%
Efficiency
120 Cell
Configuration

Product Overview

Drive exceptional value with the Peimar DR10H450MB, a high-performance 450W all-black solar module engineered and manufactured in Italy with precision automation and rigorous quality control. This monofacial panel features 120 half-cut M10 Mono PERC cells with 9-busbar design to deliver a solid 20.82% module efficiency in a compact, installer-friendly format. The premium all-black aesthetic with 35mm black anodized double-wall aluminum frame and black Tedlar backsheet creates a seamless rooftop appearance that enhances curb appeal. Built with 3.2mm low-iron tempered anti-reflective glass and rated to 5,400 Pa mechanical loads, the DR Series is engineered for long-term durability in demanding residential and commercial rooftop environments. Rated for 1500V DC systems and backed by an industry-leading 25-year product warranty and 30-year linear performance guarantee, with additional QBE Insurance product liability coverage for extra peace of mind.

Key Benefits

Italian Engineering & Manufacturing: Designed and manufactured at Peimar's fully automated production facility in Castegnato, Italy. Every module undergoes rigorous in-process quality controls—from cell inspection to glass verification and encapsulant testing—ensuring consistent, high-performance output.

Mono PERC Half-Cell Technology: 120 half-cut M10 monocrystalline PERC cells with 9-busbar design reduce internal resistive losses, improve shade tolerance, and lower operating temperatures for enhanced real-world performance and long-term reliability.

Premium All-Black Aesthetic: Sleek 35mm black anodized double-wall aluminum frame and matching black Tedlar backsheet deliver a seamless, uniform appearance that blends beautifully with any roofline—ideal for homeowners and architects who demand both performance and curb appeal.

Compact & Installer-Friendly: At just 24 kg (52.9 lbs) with a compact 1906 × 1134 mm footprint, this panel is easy to handle and maneuver on residential rooftops. Short-side anchoring capability provides additional layout flexibility for complex roof geometries.

Industry-Leading 30/25 Warranty: Backed by a full 25-year product warranty and 30-year linear performance guarantee—among the longest warranty packages in the residential panel segment—ensuring maximum return on investment over the life of the system.

QBE Insurance Backed: Product liability coverage from QBE, a global leader in risk management for the energy sector, provides an additional layer of financial protection and bankability beyond the standard manufacturer warranty.

How It Works

This solar panel harnesses sunlight through its advanced Mono PERC monocrystalline silicon cells, utilizing Passivated Emitter and Rear Contact technology to transform solar energy into electricity with proven efficiency and long-term reliability.

Mono PERC Cell Technology: Passivated Emitter and Rear Contact technology adds a dielectric passivation layer to the rear of each cell, reflecting unabsorbed light back through the silicon for a second pass—capturing more energy from every photon and delivering 20.82% module efficiency.

Half-Cut Cell Architecture: 120 half-cut M10 cells reduce internal resistance and power loss, improving shading tolerance and delivering higher energy yields in real-world rooftop conditions where partial shading from vents, chimneys, and trees is common.

9-Busbar Design: Nine busbars per cell shorten the current path and reduce resistive losses, improving both power output and cell reliability while enhancing micro-crack tolerance for long-term mechanical durability.

Technical Specifications

Manufacturer Peimar Group (Castegnato, Italy)
Series DR Series
Model Number DR10H450MB
Power Output (Pmax) 450 W (0~+5W tolerance)
PTC Rating Not Listed
Module Efficiency 20.82%
Cell Type M10 Monocrystalline PERC Half-Cut, 9BB
Cell Configuration 120 Half-Cut Cells (182 × 91 mm)
System Voltage 1,500 V DC
Max Series Fuse Rating 25 A
Open Circuit Voltage (Voc) 41.18 V
Short Circuit Current (Isc) 13.85 A
Voltage at Pmax (Vmpp) 33.91 V
Current at Pmax (Impp) 13.27 A
Temperature Coefficient (Pmax) -0.29%/°C
Temperature Coefficient (Voc) -0.25%/°C
Temperature Coefficient (Isc) +0.046%/°C
NMOT 43°C ± 2°C
Dimensions 1,906 × 1,134 × 35 mm (75.03 × 44.64 × 1.38 in)
Weight 24 kg (52.9 lbs)
Frame 35 mm Black Anodized Aluminum Alloy, Double-Wall
Front Glass 3.2 mm Low-Iron Tempered Glass, Anti-Reflective
Backsheet Black TPT (Tedlar-PET-Tedlar)
Encapsulant EVA (Ethylene Vinyl Acetate)
PV Wire 4.0 mm², 1,200 mm (~47.2 in)
Connector MC4 or Compatible, IP68
Junction Box IP68 Rated, 3 Serviceable Bypass Diodes
Fire Rating UL Type 4

Certifications & Warranty

Cell Technology: M10 Monocrystalline PERC, 120 Half-Cut Cells, 9-Busbar
Design: Black on Black (Black Frame, Black Backsheet)
Certifications: UL 61730
Protection Class: Class II (Electric Shock Protection)
Fire Rating: UL Type 4
Max Test Load: 5,400 Pa (SF 1.5)
Product Warranty: 25 Years
Performance Warranty: 30 Years Linear Performance Guarantee
Insurance: QBE Product Liability Insurance — global leader in energy sector risk management

Packing & Logistics

Modules Per Pallet 31 pcs
Pallet Dimensions 1,940 × 1,130 × 1,270 mm (76.4 × 44.5 × 50.0 in)
Pallet Weight 775 kg (1,709 lbs)
Stacking Up to 2 pallets

● Available | Contact us for lead time and pricing
