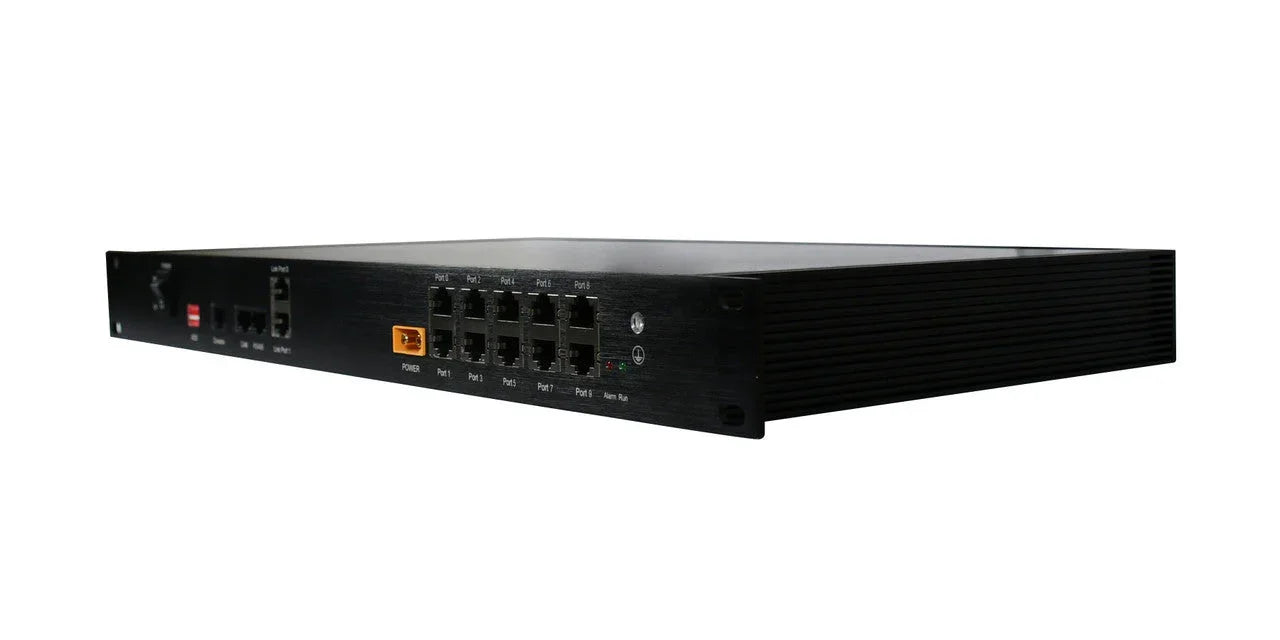

Pytes Communication Hub for Efficient Battery Expansion

The Pytes Communication Hub is a vital component for enhancing the efficiency of multiple battery clusters, allowing seamless parallel communication with the Pytes E-BOX-48100R Expansion. It serves as an integral hub for connecting batteries to inverters, ensuring optimal performance and connectivity across your energy systems.

Product Features

Effective Parallel Communication

Designed to facilitate smooth communication between numerous battery clusters and inverters, the Pytes 48100R Expansion ensures efficient integration and management within your power supply system.

Universal Compatibility

Compatible exclusively with PYTES batteries, this communication hub does not support batteries from other brands, providing a secure and optimized connection within its compatible systems.

Convenient Installation Process

The 1uHub is easy to mount on the rack, coming with screws and screw nuts for a stable setup that enhances durability and accessibility, simplifying the installation process significantly.

Comprehensive Communication Interfaces

Equipped with RS232, CAN, and RS485 ports, this hub facilitates robust communication for battery information output, allowing advanced interaction with local systems through reliable RJ45 ports.

Powerful Indicator Lights

The green and red indicator lights provide clear status updates, signaling normal operation when green and indicating system alarms when red, making system monitoring straightforward.

How It Works

The Pytes Communication Hub operates by integrating multiple battery clusters to enable unified control and monitoring. It connects via specialized ports, communicating essential data seamlessly to optimize energy management systems.

Power Connectivity

Connect the power cable from the XT60 to the main DC input, transforming 48V power for efficient hub operation, or utilize a battery power interface when needed.

Communication Setup

The connection from the Cascade Link Port to Interface Port ensures reliable communication, providing a stable data flow across clusters and inverters in your setup.

DIP Switch Configuration

Configure the DIP switches for protocol addressing of communication with the PCS, aligning the settings with your inverter brand for optimal synchronization.

Specifications

Nominated Operation Voltage	48Vdc
Communication Methods	CAN/RS485/RS232
Power Consumption	2W
Protection Rate	IP20
*Dimensions (WDH)*	48225045mm / 199.841.77"
Weight	2.2kg / 4.85lbs
Operating Temperature	-20C~60C / -4F~140F

Country/region

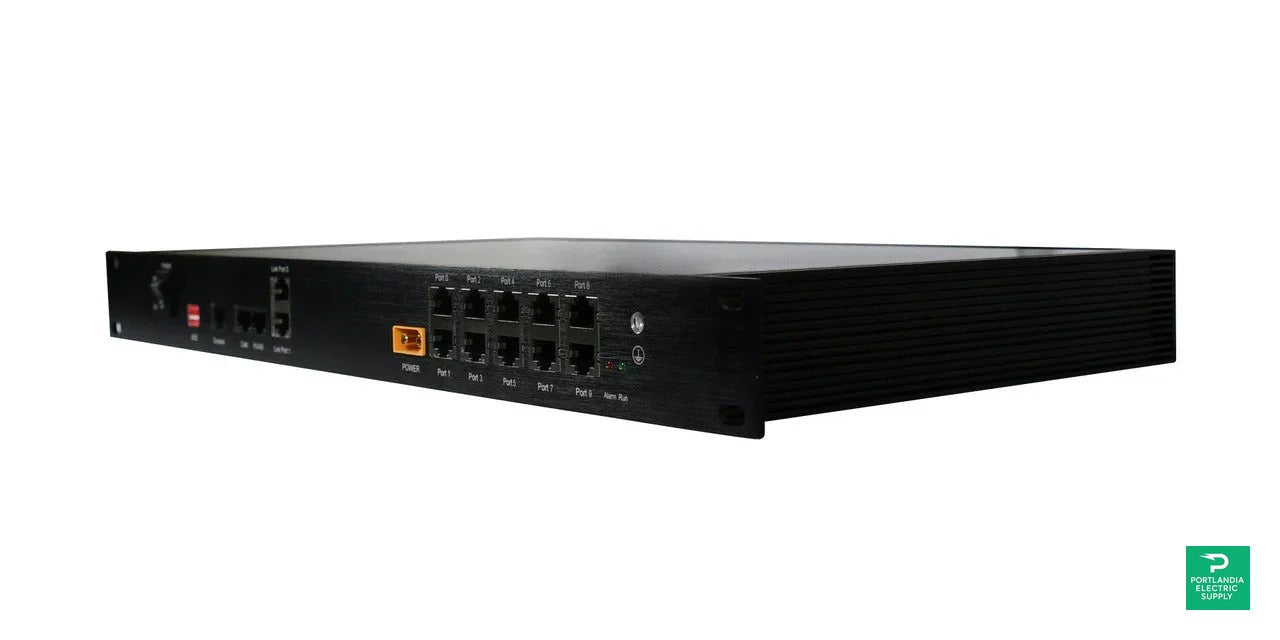

Pytes Communication Hub Battery Hub For The Pytes E-BOX- 48100R Expansion
