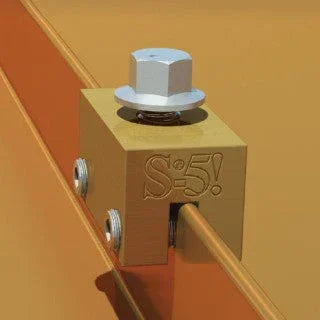

S-5! S-5-B Mini Clamp

The S-5-B Mini clamp offers a robust solution for securely attaching a variety of rooftop accessories to standing seam metal roofs without compromising the integrity of the panel. This innovative design guarantees that roof warranties remain intact, making it an ideal choice for architects and builders looking for durable and reliable roofing solutions. Whether it's for mounting signs, satellite dishes, or solar panels, the S-5-B Mini provides an unmatched holding strength that you can depend on.

Product Features

Compact Design

The S-5-B Mini features a shorter and lightweight form, making it easier to handle while ensuring a strong mount for your equipment. With only one setscrew instead of two, this clamp simplifies installation without sacrificing effectiveness.

Patented Setscrew Technology

This clamp utilizes patented round-point setscrews which slightly dimple the metal seam material instead of puncturing it, thus preserving roof warranties while providing secure attachment points.

High-Quality Hardware

Included with each S-5-B Mini is a complete set of stainless steel hardware, ensuring durability and resistance to corrosion. The inclusion of a screw gun bit tip also enhances the ease of installation.

Versatile Application

Designed to accommodate various rooftop accessories, the S-5-B Mini clamp is perfect for mounting everything from walkways to solar arrays. This flexibility allows building owners and contractors to utilize the clamp for multiple applications in one product.

Tested Load Strength

Proven through independent lab testing, the S-5-B Mini has passed rigorous load-to-failure tests on standing seam copper, ensuring that its holding strength is unmatched in the industry.

How It Works

The S-5-B Mini operates by simply placing the clamp onto the seam and using the included setscrew to tighten it to the specified tension. This simple operation allows for quick attachment while maintaining maximum holding strength throughout the lifetime of the installation.

Setscrew Functionality

The setscrew engages the seam material effectively, ensuring a firm grip that secures the mounted accessory without damaging the roof's surface. This functionality is crucial for maintaining integrity over time.

Installation Convenience

With an included screw gun bit tip, installation is streamlined, making it accessible for any installer. Users can achieve proper tension with ease, ensuring that clamps remain secure under various conditions.

Durable Construction

Constructed from high-quality materials, the S-5-B Mini is designed to withstand harsh environmental conditions, providing longevity and reliability in all roofing applications.

Specifications

Product Name	S-5-B Mini
Manufacturer	S-5!
Material	Stainless Steel
Setscrew Count	1
Recommended Torque on 22ga Steel	160 - 180 inch pounds
Recommended Torque on Other Metals	130 - 150 inch pounds
Height	1.00" (25.00 mm)
Width	0.50" (13.00 mm)
Depth	0.24" (6.00 mm)
Weight	0.38 lbs

Country/region

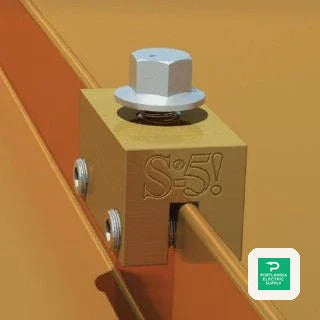

S-5! CLAMP - S-5-B Mini
