Solis 80kW Three Phase Nine MPPT w/ AFCI w/ FAN w/TIGO TX - 10 Year Standard Warranty - S5-GC80K-US-RSS

Solis 80kW Three Phase Nine MPPT w/ AFCI w/ FAN w/TIGO TX - 10 Year Standard Warranty - S5-GC80K-US-RSS

Regular price $5,885.43 USD
Regular price Sale price $5,885.43 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0155
  • Brands: Solis
  • Compliance special features:
    • Rapid Shutdown Ready
  • Documents:
  • Height: 22.3
  • Length: 13.6
  • Phase:
    • Three Phase
View full details

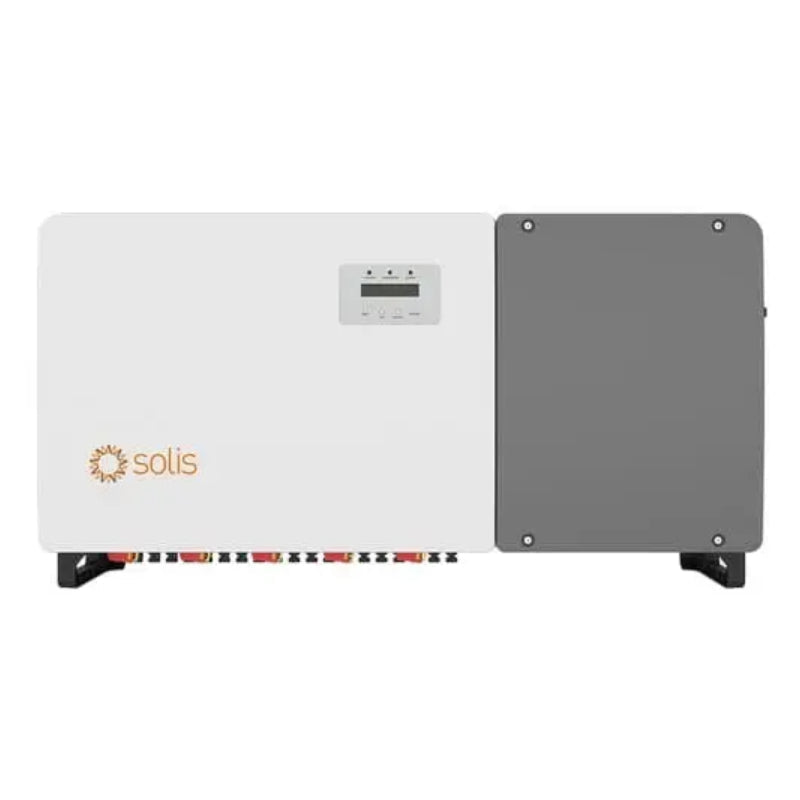

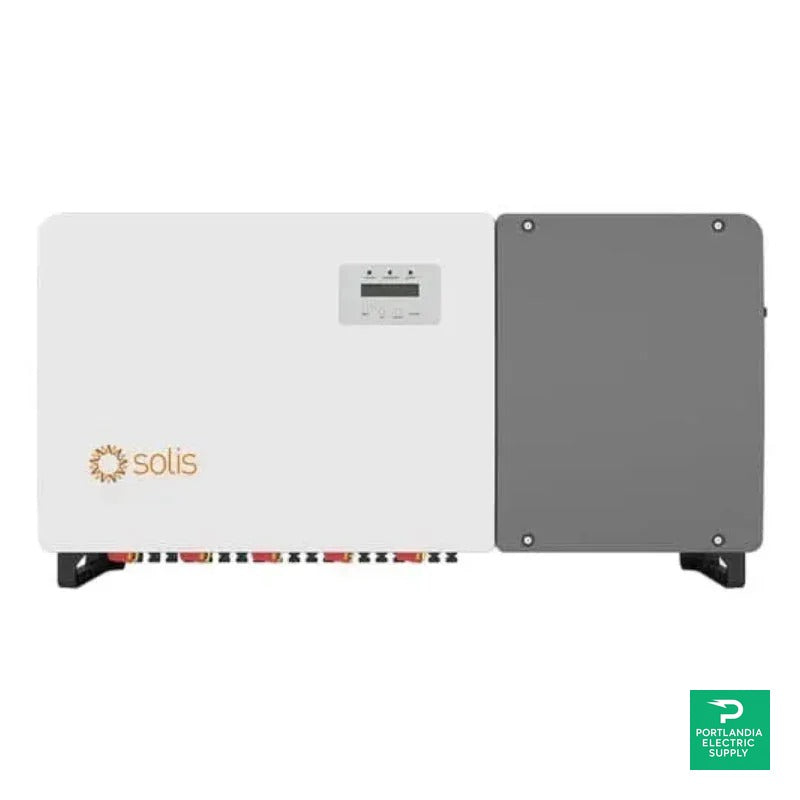

  • Solis 80kW Three Phase Nine MPPT Inverter

    The Solis S5-GC80K-US-RSS inverter is an advanced solar solution designed for commercial and industrial applications. Featuring nine MPPTs for maximum power point tracking, this inverter delivers exceptional efficiency, ensuring high energy conversion rates up to 98.8%. Its robust build and smart monitoring technology provide reliable and safe operation for solar power systems.

    Product Features

    High Efficiency

    The Solis S5-GC80K-US-RSS inverter offers a maximum efficiency of 98.8%, optimizing energy conversion from solar panels while minimizing energy loss.

    Advanced Safety Features

    This inverter integrates AFCI protection and rapid shutdown capabilities, significantly enhancing safety by reducing fire risks and complying with the latest safety standards.

    Robust Build Quality

    With a Type 4X enclosure and C5 anti-corrosion level, the inverter is designed to withstand adverse weather conditions and maintain durability over time.

    Comprehensive Monitoring

    Equipped with intelligent string monitoring and smart I-V curve scanning, this inverter allows operators to perform real-time analysis and improvements remotely.

    Flexible Communication Options

    This product features multiple communication interfaces, including RS485 and Ethernet, with optional Wi-Fi and cellular connectivity for versatile remote monitoring.

    How It Works

    The Solis S5-GC80K-US-RSS utilizes a sophisticated combination of hardware components to efficiently convert DC power generated by solar panels into AC power for grid use. Its multi-MPPT design allows each panel string to achieve optimal power output independently.

    MPPT Technology

    The multi-point power tracking system ensures that maximum energy is harvested from solar panels even under varying conditions.

    Transformerless Design

    This design choice allows for a more lightweight and compact unit, improving installation ease and reducing transformer-related power losses.

    Intelligent Cooling System

    An intelligent fan-cooling mechanism keeps the inverter functioning optimally by adjusting cooling performance based on the operational demands and ambient temperature.

    Specifications

    Max. Input Voltage 1000 V
    Rated Voltage 600 V
    MPPT Voltage Range 180-1000 V
    Max. Output Power 80 kW
    Rated Grid Voltage 480 V, 3Φ
    Max. Efficiency 98.8%
    Surge Protection DC Type II / AC Type II
    Dimensions (W*H*D) 41.9*22.3*13.6 in
    Weight 187 lbs (85 kgs)
    Communication Options RS485, Ethernet, Wi-Fi (optional)
