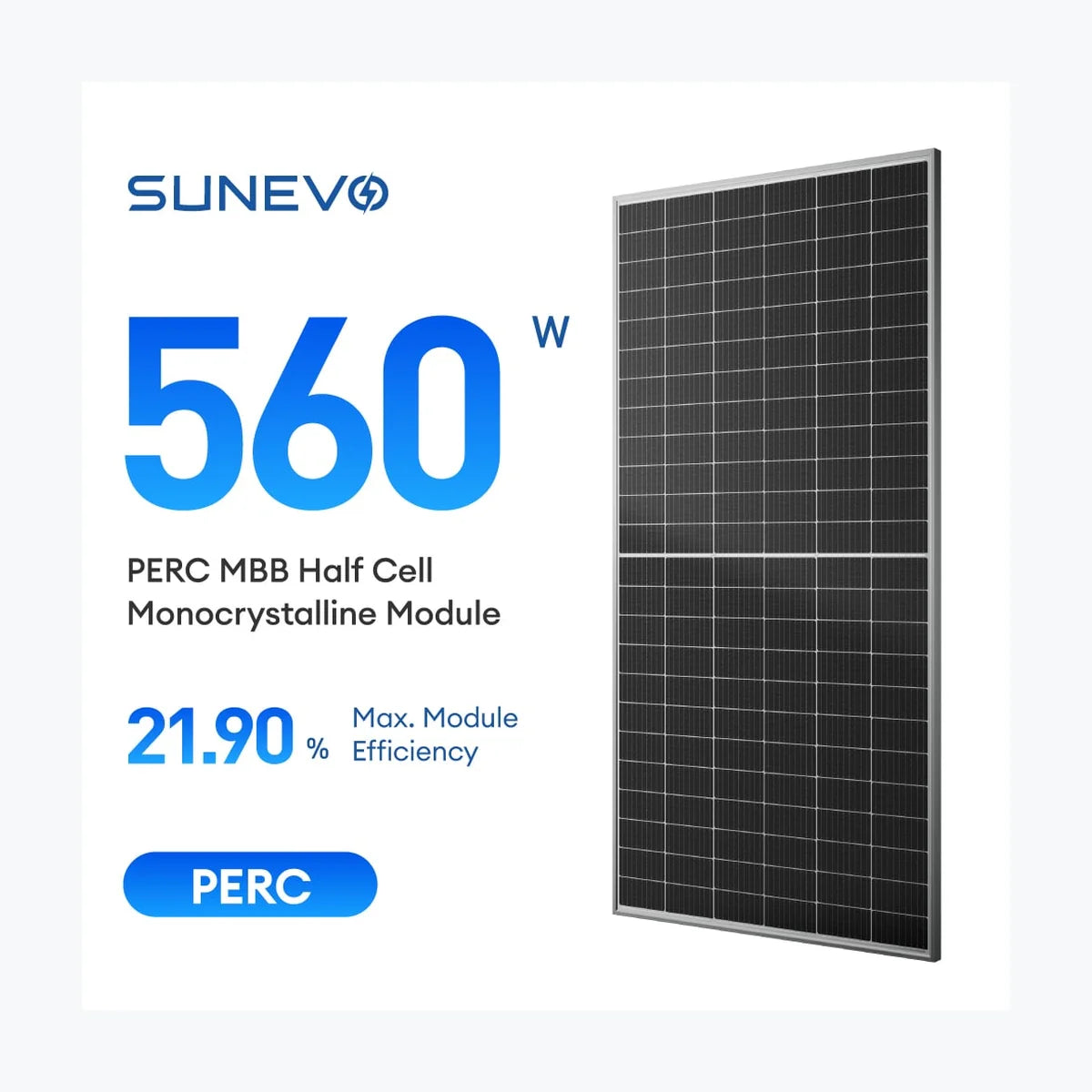

    SunEvo Solar SE5-72H-560W

    SunEvo Solar SE5-72H-560W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-18840
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. SE5-72H-560W Product Warranty 12 Years Power Warranty 25 Years of 84.80 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 43.22 V Current at Maximum Power (Impp) 12.96 A Open Circuit Voltage (Voc) 50.68 V Short Circuit Current (Isc) 13.76 A Panel Efficiency 21.9 % Maximum Power (Pmax) 423.8 Wp Voltage at Maximum Power (Vmpp) 40.09 V Current at Maximum Power (Impp) 10.57 A Open Circuit Voltage (Voc) 47.85 V Short Circuit Current (Isc) 11.02 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 26.9 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector T

      Technology: PERC
      Power Range: 540 ~ 560 Wp
      Panel Efficiency: 21.1 ~ 21.9 %
      Weight: 26.9 kg
      Seller Name: SunEvo Solar Co., Ltd.
      Country: China
