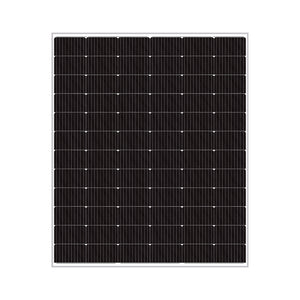

TSEC 480W Solar Panel (TS60-CMH- H1)
PayPal Pay in 4 interest-free payments of $45.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20439
- Unit price
- $0.38/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Supply. 50,000+ SKUs from 169 authorized brands.
TSEC TS60-CMH-480 H1 TOPCon Monocrystalline Solar Panel
TS60-CMH-480 H1 | TOPCon | 120 Half-Cell | Mono | 1500V System Voltage
Product Overview
The TSEC TS60-CMH-480 H1 TOPCon Monocrystalline Solar Panel delivers exceptional performance for modern energy systems. This advanced 480-watt module features cutting-edge TOPCon technology with 120 high-efficiency cells. It ensures superior energy conversion even in low-light conditions. The panel boasts a robust 22.2% efficiency rating for maximum power generation. Its durable black frame resists salt mist and harsh environmental factors effectively. Designed for reliability, it operates safely between -40°C and +85°C. The 1500-volt system voltage supports large-scale commercial installations easily. This Taiwanese-made product combines sustainability with top-tier engineering standards.
Key Benefits
Superior Efficiency: Achieves 22.2% conversion efficiency with advanced 182mm TOPCon cells.
Long-Term Warranty: Includes a 12-year product warranty and 30-year linear power warranty.
Low Light Response: Generates power effectively even during cloudy days or early mornings.
Durability: Features an anti-salt mist frame and IP68-rated junction box protection.
High System Voltage: Supports up to 1500V for optimized commercial and industrial setups.
How It Works
This solar panel converts sunlight into electricity using advanced photovoltaic technology. The TOPCon cell structure minimizes electron loss to maximize energy output. Three bypass diodes prevent power loss if part of the panel is shaded. The system operates efficiently across a wide temperature range from -40°C to +85°C.
TOPCon Technology: Tunnel Oxide Passivated Contact reduces surface recombination for higher efficiency. This design allows electrons to flow more freely through the cell structure.
Bypass Diodes: Three bypass diodes ensure current continues flowing even if a cell is shaded. This prevents hot spots and maintains overall system performance safely.
Temperature Stability: Low temperature coefficients ensure stable power output in extreme heat. The panel maintains efficiency with a -0.29% per degree Celsius Pmax coefficient.
Technical Specifications
| Max Power (Pmax) | 480 Wp |
| Voltage at Max Power (Vmpp) | 36.26 V |
| Current at Max Power (Impp) | 13.24 A |
| Open Circuit Voltage (Voc) | 42.73 V |
| Short Circuit Current (Isc) | 13.92 A |
| Module Efficiency | 22.2% |
| Cell Type | Monocrystalline TOPCon |
| Cell Number | 120 |
| Dimensions (H/W/D) | 1908 x 1134 x 35 mm |
| Weight | 23.5 kg |
| Max System Voltage | 1500 V |
| Junction Box Protection | IP68 |
| Operating Temperature Range | -40 to +85°C |
| Power Tolerance | -3 to +3% |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Series Fuse Rating | 25 A |
| Cable Length | 1500 mm |
| Frame Color | Black |
Certifications & Compliance
Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730
Inverter Compatibility: Compatible with standard string inverters and commercial PV systems
Environmental: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Warranty: 12-year materials and workmanship warranty, 30-year linear power warranty (91.4% at 20 years, 87.4% at 30 years)
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
