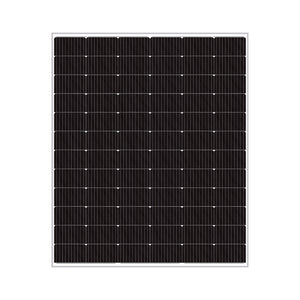

TSEC 480W Solar Panel (TS66-BMH- H1)
PayPal Pay in 4 interest-free payments of $45.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20445
- Unit price
- $0.38/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Supply. 50,000+ SKUs from 169 authorized brands.
TSEC TS66-BMH-480 H1 PERC Monocrystalline Solar Panel
TS66-BMH-480 H1 | PERC Technology | 132 Mono-Crystalline Cells | Mono | 1500V System Voltage
Product Overview
The TSEC TS66-BMH-480 H1 PERC Monocrystalline Solar Panel delivers exceptional 480-watt power output for modern rooftop systems. This high-efficiency panel features advanced PERC technology with 132 premium M10 monocrystalline cells. It achieves a remarkable 20.3% module efficiency, ensuring maximum energy harvest even in lower light conditions. The robust design includes anti-salt mist aluminum framing and tempered glass for long-term durability. Manufactured in Taiwan, this panel offers superior PID resistance and the highest mechanical load capacity in its class. Its compact dimensions and lightweight 26kg profile make it ideal for various installation scenarios. The panel supports a maximum system voltage of 1500V, enabling flexible series connections. It operates efficiently within a wide temperature range from -40°C to +85°C. This solar solution is perfect for homeowners and businesses seeking reliable, sustainable green energy generation.
Key Benefits
High Power Output: Generates 480Wp of electricity, supporting power ranges up to 515Wp for optimal energy needs.
Advanced PERC Technology: Utilizes Passivated Emitter and Rear Cell tech to improve module power output performance significantly.
Superior Durability: Features anti-salt mist aluminum frames and tempered glass to withstand harsh environmental conditions.
PID Resistance: Offers world-class resistance against Potential Induced Degradation for long-term reliability and efficiency.
High Mechanical Load: Supports the highest mechanical load with 7100 Pa front side and 5400 Pa rear side resistance.
How It Works
The TSEC TS66-BMH-480 H1 panel converts sunlight into electricity using 132 high-quality M10 monocrystalline cells. Sunlight photons strike the cells, exciting electrons to create a flow of direct current electricity. The PERC technology adds a passivation layer on the rear, capturing more light and boosting efficiency. This process reduces the module working temperature, enhancing overall power output performance. The built-in bypass diodes prevent power loss if part of the panel is shaded. The IP68-rated junction box ensures safe and durable electrical connections in all weather conditions.
Photon Absorption: Sunlight photons hit the 182mm M10 cells, exciting electrons to generate electrical current. This process initiates the conversion of solar energy into usable power.
PERC Efficiency Boost: The rear passivation layer captures reflected light, increasing cell efficiency. This reduces energy loss and maximizes the power output per square meter.
Thermal Management: Multi Busbar technology reduces internal resistance, lowering operating temperatures. Cooler cells maintain higher efficiency even under intense heat.
Technical Specifications
| Model Number | TS66-BMH-480 H1 |
| Max Power (Pmax) | 480 Wp |
| Module Efficiency | 20.3% |
| Cell Type | M10 Monocrystalline (PERC) |
| Cell Count | 132 Cells |
| Voltage at Max Power (Vmpp) | 37.78 V |
| Current at Max Power (Impp) | 12.71 A |
| Open Circuit Voltage (Voc) | 44.95 V |
| Short Circuit Current (Isc) | 13.59 A |
| Power Tolerance | -3% to +3% |
| Dimensions (H/W/D) | 2092 x 1133 x 40 mm |
| Weight | 26 kg |
| Max System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Frame Type | Aluminum (Black/Silver) |
| Junction Box Protection | IP68 |
| Number of Bypass Diodes | 3 |
| Cable Length | 1500 mm |
| Cable Cross Section | 4 mm² |
| Operating Temperature Range | -40°C to +85°C |
| Temp Coeff of Pmax | -0.35%/°C |
| Temp Coeff of Voc | -0.27%/°C |
| Temp Coeff of Isc | +0.06%/°C |
| Nominal Operating Cell Temp | 45±2°C |
| Max Mechanical Load | 7100 Pa Front / 5400 Pa Rear |
| Glass Type | Low-Iron Tempered |
| Fire Resistance Class | Class C |
| Protection Class | Class II |
Certifications & Compliance
Certifications: IEC 61215:2016, IEC 61730-1:2016, IEC 61730-2:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Inverter Compatibility: Compatible with EVO-2 connectors and standard grid-tie inverters
Environmental: World-class PID resistant, Salt Mist tested, Low water vapor transmission rate
Warranty: 12-year materials and workmanship warranty, 25-year linear power warranty (91% at 10 years, 81% at 25 years)
