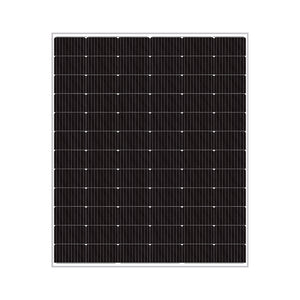

TSEC TS60-CMH-500 H1 TOPCon Monocrystalline Solar Panel
TS60-CMH-500 H1 | TOPCon | 120 Mono-Crystalline Cells | Mono | 1500V System Voltage
Product Overview
The TSEC TS60-CMH-500 H1 TOPCon monocrystalline solar panel delivers exceptional performance for modern energy systems. This advanced module features 120 high-efficiency cells utilizing cutting-edge N-type TOPCon technology. It generates a robust 500 Wp of power with a remarkable 23.1% conversion efficiency. The panel is designed for durability, operating safely between -40°C and +85°C. Its robust construction ensures minimal degradation over time, maintaining over 91% power output after 20 years. This solar panel is ideal for residential rooftops and large commercial installations seeking maximum ROI. The black frame blends seamlessly with modern building aesthetics while providing structural strength. Made in Taiwan, it adheres to strict international quality and environmental management standards. Investors choose this model for its superior temperature coefficients and low light response capabilities.
Key Benefits
Superior Efficiency: Achieves 23.1% module efficiency to maximize energy generation per square meter.
Advanced TOPCon Tech: N-type TOPCon cells eliminate light-induced degradation for consistent long-term output.
Extended Warranty: Includes a 30-year linear power warranty guaranteeing 87.4% output at the end.
Weather Resilience: Operates reliably in extreme temperatures from -40°C to +85°C with IP68 protection.
Low LCOE Design: Better temperature coefficients and low light response reduce overall energy costs over time.
How It Works
This solar panel converts sunlight into usable electricity through advanced photovoltaic mechanisms. The 120 monocrystalline silicon cells absorb photons to generate electron flow. N-type TOPCon technology creates a passivation layer that reduces electron recombination losses. This design ensures higher voltage and current even under low light or high heat conditions. The system maintains stability by minimizing degradation rates over decades of operation.
Photon Absorption: Sunlight strikes the 182mm TOPCon cells, exciting electrons to create an electric current. This process initiates immediately upon exposure to solar radiation.
Passivation Layer: The tunnel oxide layer prevents electron recombination at the cell surface. This mechanism significantly boosts voltage and overall conversion efficiency.
Temperature Stability: The N-type structure resists heat-induced efficiency drops better than standard P-type cells. This ensures reliable power output during hot summer days.
Technical Specifications
| Cell Type | Monocrystalline TOPCon |
| Max Power (Pmax) | 500 Wp |
| Module Efficiency | 23.1% |
| Voltage at Max Power (Vmpp) | 37.02 V |
| Current at Max Power (Impp) | 13.56 A |
| Open Circuit Voltage (Voc) | 43.49 V |
| Short Circuit Current (Isc) | 14.28 A |
| Power Tolerance | -3% to +3% |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Nominal Operating Cell Temp (NOCT) | 45±2°C |
| Operating Temperature Range | -40°C to +85°C |
| Max System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Dimensions (H/W/D) | 1908 x 1134 x 35 mm |
| Weight | 23.5 kg |
| Cell Number | 120 |
| Frame Type | Black Anti-Salt Mist |
| Junction Box Protection | IP68 |
| Bypass Diodes | 3 |
| Cable Length | 1500 mm |
| Cable Cross-section | 4 mm² |
Certifications & Compliance
Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730
Inverter Compatibility: Compatible with EVO-2 connectors and standard grid-tie inverters
Environmental: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Warranty: 12-year materials and workmanship; 30-year linear power warranty (91.4% at 20y, 87.4% at 30y)
