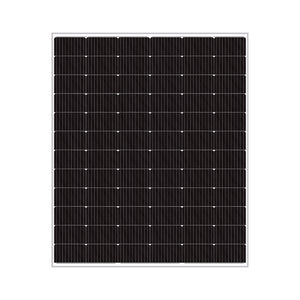

TSEC 500W Solar Panel (TS66-BMH- H1)
PayPal Pay in 4 interest-free payments of $45.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20449
- Unit price
- $0.36/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Supply. 50,000+ SKUs from 169 authorized brands.
TSEC TS66-BMH-500 H1 Monocrystalline PERC 132-Cell Mono Solar Panel
TS66-BMH-500 H1 | PERC Technology | 132 Mono-crystalline Cells | Mono | 1500V System Voltage
Product Overview
The TSEC TS66-BMH-500 H1 Monocrystalline PERC 132-Cell Mono Solar Panel delivers exceptional 500W power for rooftop and commercial installations. This high-efficiency module features advanced PERC technology to maximize energy generation even in low-light conditions. Its durable design includes anti-salt mist aluminum framing suitable for harsh coastal environments. The panel achieves a remarkable 21.1% conversion efficiency, ensuring optimal space utilization. Built with 182mm M10 solar cells, it offers superior performance and reliability. This product is manufactured in Taiwan with strict quality controls. The robust construction supports a 1500V maximum system voltage for flexible array configurations. Its lightweight 26kg design simplifies mounting and reduces structural load requirements. The tempered glass front protects against mechanical stress and environmental wear. This solar panel is an ideal choice for maximizing long-term energy savings and reducing carbon footprints.
Key Benefits
High Power Output: Generates 500W of power for efficient energy production and reduced installation costs.
Superior Efficiency: Achieves 21.1% module efficiency to maximize energy yield from limited rooftop space.
Enhanced Durability: Features anti-salt mist aluminum framing and tempered glass for harsh coastal environments.
Advanced PERC Tech: Uses PERC technology to improve light absorption and performance in low-light conditions.
Long Warranty Period: Includes a 12-year material warranty and 25-year linear power warranty for peace of mind.
How It Works
This solar panel converts sunlight into electricity using 132 high-quality monocrystalline silicon cells. The PERC technology enhances electron flow to increase overall power generation efficiency. Multi-busbar design reduces internal resistance and improves current collection from the cells. The panel operates efficiently across a wide temperature range from -40°C to +85°C. Its robust construction ensures consistent performance even under extreme mechanical loads up to 7100 Pa. The integrated junction box with IP68 protection safeguards electrical connections from moisture and dust. This system works seamlessly with inverters to provide clean energy for homes and businesses.
Photon Absorption: Sunlight photons strike the silicon cells, releasing electrons to create an electrical current. The PERC layer captures unused light to boost electron generation significantly.
Current Collection: Multi-busbar technology collects the generated current efficiently with minimal resistance losses. This design ensures maximum power output reaches the external circuit terminals.
Environmental Protection: The IP68-rated junction box prevents water and dust from entering electrical components. Tempered glass and anti-salt mist frames protect against harsh weather conditions.
Technical Specifications
| Max Power (Pmax) | 500 Wp |
| Module Efficiency | 21.1% |
| Voltage at Max Power (Vmpp) | 38.38 V |
| Current at Max Power (Impp) | 13.03 A |
| Open Circuit Voltage (Voc) | 45.55 V |
| Short Circuit Current (Isc) | 13.9 A |
| Power Tolerance | -3% to +3% |
| Cell Type | M10 Monocrystalline PERC |
| Cell Number | 132 Cells |
| Dimensions (H/W/D) | 2092 x 1133 x 40 mm |
| Weight | 26 kg |
| Glass Type | Tempered Low-iron Glass |
| Frame Type | Aluminum (Black/Silver) |
| Junction Box | IP68 with 3 Diodes |
| Cable Length | 1500 mm / 4mm² |
| Max System Voltage | 1500 V |
| Operating Temp Range | -40°C to +85°C |
| Temp Coeff Pmax | -0.35%/°C |
| Series Fuse Rating | 25 A |
| Nominal Operating Temp | 45±2°C |
Certifications & Compliance
Certifications: IEC 61215:2016, IEC 61730-1:2016, IEC 61730-2:2016, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Inverter Compatibility: Compatible with all major string inverters supporting 1500V systems
Environmental: World's best PID resistant, toughest Salt Mist Test, Better LCOE
Warranty: 12-year materials and workmanship warranty; 25-year linear power warranty (91% at 10 years, 81% at 25 years)
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
