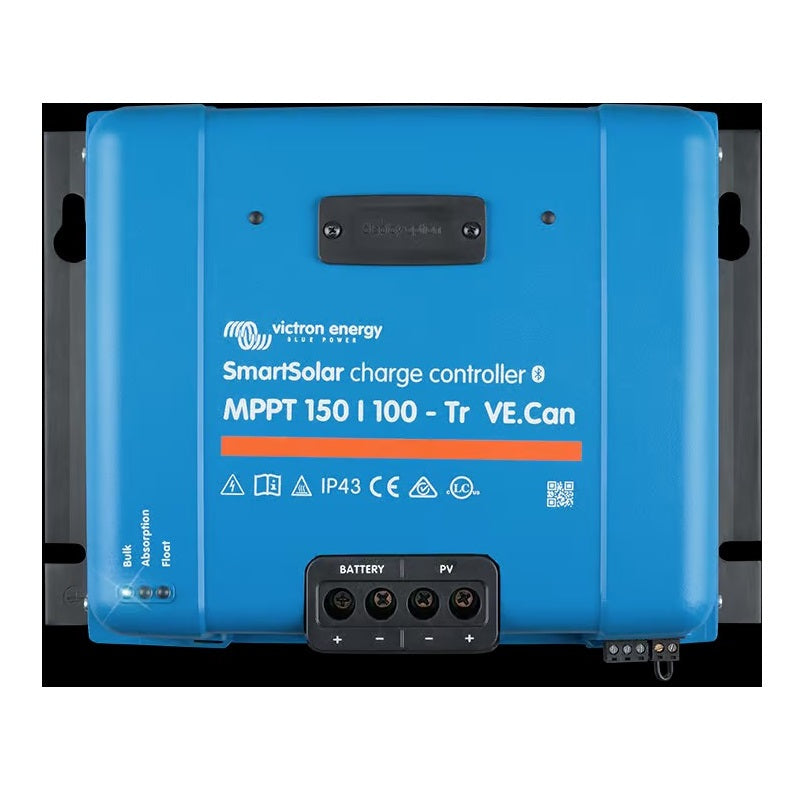

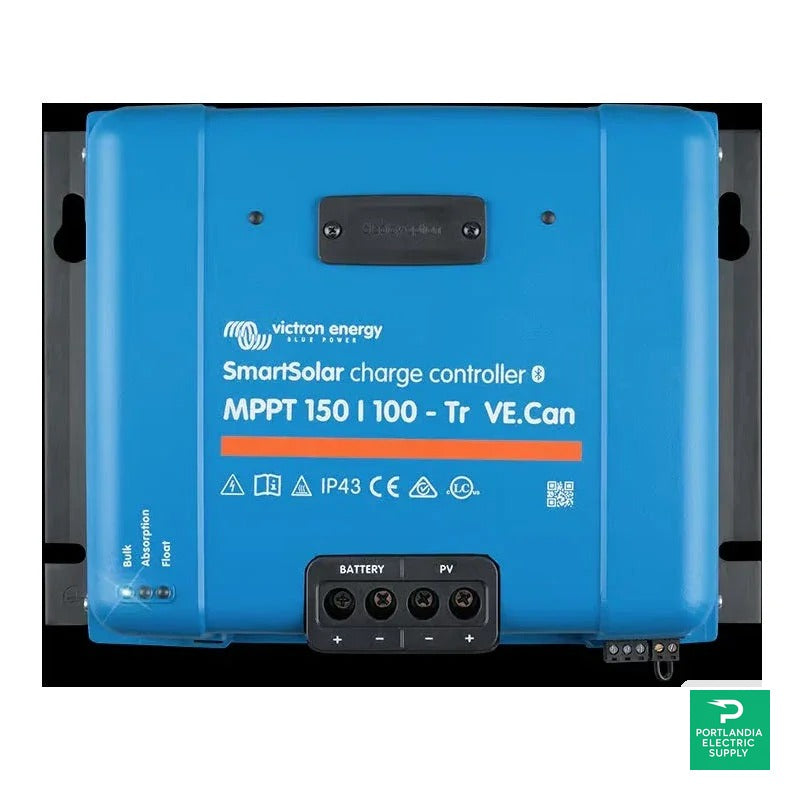

Victron SmartSolar MPPT 150/100-MC-4 VE.Can Charge Controller - SCC115110511

Victron SmartSolar MPPT 150/100-MC-4 VE.Can Charge Controller - SCC115110511

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-0147
  • Brands: Victron Energy
  • Documents:
  • Height: 10.3
  • Length: 24.6
  • Width: 29.5
View full details
  • Victron SmartSolar MPPT 150/100-MC-4 VE.Can Charge Controller

    Discover the advanced energy management capabilities of the Victron Energy SCC115110511 Charge Controller, engineered to optimize energy harvest through innovative Maximum Power Point Tracking. Ideal for varied solar installations, this device enhances performance under changing light conditions, providing reliable power regulation to your off-grid system.

    Product Features

    Ultra-fast Maximum Power Point Tracking (MPPT)

    This feature significantly boosts energy capture efficiency by up to 30% compared to PWM controllers, especially under fluctuating light conditions, ensuring optimal power harvesting at all times.

    Advanced Detection in Partial Shading

    The SmartSolar algorithm ensures maximum energy extraction by identifying the optimal power point, outperforming conventional MPPTs that may latch onto suboptimal points.

    Outstanding Conversion Efficiency

    Experience top-tier performance with a conversion efficiency exceeding 98%, supported by a design that doesnt require cooling fans for operation stability.

    Customizable Charge Algorithms

    Choose from fully programmable or pre-set charging algorithms to suit your energy needs, ensuring optimal battery charging and maintenance.

    Comprehensive Electronic Protection

    Features include over-temperature, PV short circuit, and reverse polarity protection to safeguard your investment and ensure long-term reliability.

    How It Works

    The Victron SmartSolar Charge Controller regulates solar energy conversion efficiently, employing advanced algorithms and sensors to adapt to various conditions. It ensures the stored energy is maximized and safely distributed to connected batteries.

    Optimized Energy Harvesting

    Utilizes advanced MPPT technology for dynamic energy collection, particularly beneficial during transitional shading or cloud cover.

    Bluetooth Connectivity

    Monitor and control your system remotely with built-in Bluetooth, easily syncing with smart devices for seamless operation.

    VE.Can Interface Usage

    Integrate multiple units for large-scale installations up to 25, with precise synchronization available through VE.Can interface.

    Specifications

    Battery Voltage 12/24/48V Auto Select (36V manual)
    Rated Charge Current 100A
    Maximum Efficiency 98%
    Data Communication VE.Can, VE.Direct, Bluetooth
    Operating Temperature -30 to +60°C (full rated output up to 40°C)
    Protection Category IP43 (electronics), IP22 (connection)
    Dimensions 216 x 295 x 103 mm
    Weight 4.5 kg
    Color Blue (RAL 5012)
    Parallel Operation Yes, up to 25 units via VE.Can
