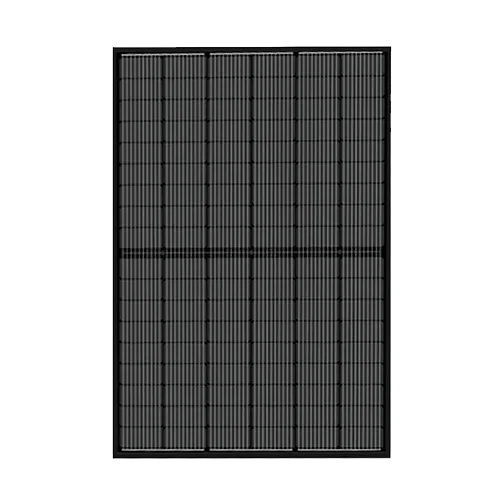

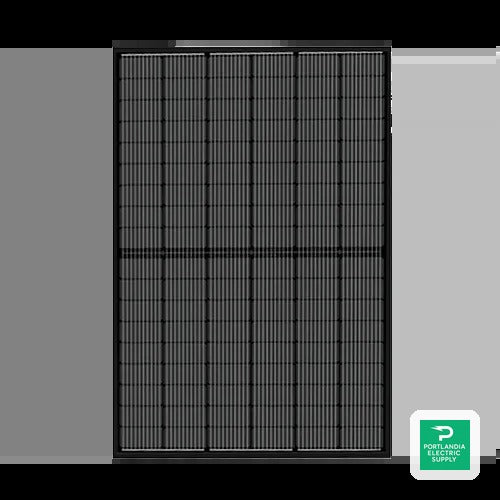

ZNShine 108 Mono Cells Black/Black 410w Solar Panel - ZXM7-SH108-410
ZNShine 108 Mono Cells Black/Black 410w Solar Panel - ZXM7-SH108-410
$0.5/watt
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0159
- Brands: Znshine Solar
- Height: 1134
- Length: 1724
- Panel wattage: 410
- Short description: Explore our full range of Solar Modules <a href="https://www.portlandiaelectric.supply/solar-panels/" target="_new" rel="noopener">here</a> to find the perfect solution for your energy needs.
-
Technology:
- Mono PERC
Product Description
-
ZNShine Solar ZXM7-SH108-410 Solar Panel Overview
The ZNShine Solar ZXM7-SH108-410 is a highly efficient black-on-black solar panel designed for maximum power generation and aesthetic appeal. With a power output of 410 W, this module is perfect for residential and commercial installations. Built with advanced mono PERC technology, it delivers excellent performance even in low-light conditions.Product Features
High Efficiency
The ZNShine Solar ZXM7-SH108-410 offers an impressive module efficiency of 20.9%, ensuring maximum energy output in limited space.Durable Construction
Designed with a black anodized aluminum alloy frame and tempered glass, this panel is built to withstand harsh weather conditions, including heavy snow and wind loads.Enhanced Performance
With advanced mono PERC technology and anti-reflective coating, the Znshine Solar ZXM7-SH108-410 ensures excellent performance even in low-light environments.Aesthetic Design
The black-on-black design provides a sleek, modern look, making it an ideal choice for homes and businesses where appearance matters.Reliable Warranty
Backed by a 25-year performance warranty and a 12-year product warranty, the Znshine Solar ZXM7-SH108-410 ensures peace of mind for long-term use.How It Works
Mono PERC Technology
The panel utilizes mono PERC (Passivated Emitter and Rear Cell) technology, which increases light capture and reduces energy loss for improved efficiency.Optimized Cell Design
Its 108 half-cut cells minimize power loss due to shading, delivering consistent performance under various conditions.Advanced Protection Features
Equipped with an IP68-rated junction box, this module offers superior protection against dust and water, ensuring reliability in diverse environments.Specifications
Specification Details Model Number ZXM7-SH108-410 Nominal Max. Power (Pmax) 410 W Module Efficiency 20.9% Open Circuit Voltage (Voc) 49.1 V Short Circuit Current (Isc) 10.59 A Operating Voltage (Vmp) 40.8 V Operating Current (Imp) 10.05 A Dimensions 1722 × 1134 × 35 mm Weight 20.5 kg Cell Type Mono PERC Number of Cells 108 Frame Black Anodized Aluminum Alloy Glass High-Transmittance Tempered Glass Junction Box IP68 Rated Warranty 25 Years (Performance), 12 Years (Product) Certifications
The ZXM7-SH108-410 solar panel complies with IEC61215 and IEC61730 standards, ensuring reliability and performance under various conditions.Additional Notes
- Ideal for residential and commercial applications.
- Compatible with most standard inverters.
- Designed for high energy yield with minimal maintenance.
-
