Out of Stock
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-1069
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
- Manufacturer:
- Wattage:
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.

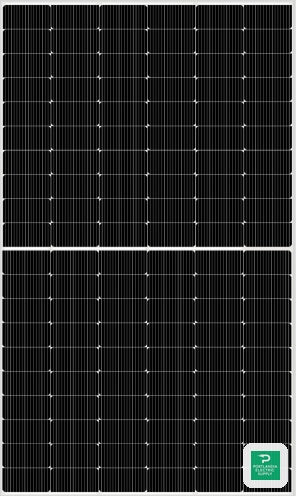

Type Monocrystalline Model No. AS-7M120N-BHC-480W Product Warranty 30 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 35.38 V Current at Maximum Power (Impp) 13.57 A Open Circuit Voltage (Voc) 42.71 V Short Circuit Current (Isc) 14.31 A Panel Efficiency 22.3 % Maximum Power (Pmax) 361 Wp Voltage at Maximum Power (Vmpp) 33.27 V Current at Maximum Power (Impp) 10.85 A Open Circuit Voltage (Voc) 40.57 V Short Circuit Current (Isc) 11.55 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1908x1134x30 mm Weight 24 kg Cell Size 182×182 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box Diodes 3 Jun
Technology: Bifacial, TOPCon, N-type
Power Range: 465 ~ 485 Wp
Panel Efficiency: 21.7 ~ 22.4 %
Weight: 24 kg
Seller Name: Amerisolar EU
Country: China
| SKU | PES-SPS-SOL-1069 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
