Specification
- SKU:PES-SPS-SOL-1111
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
- Manufacturer:
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.

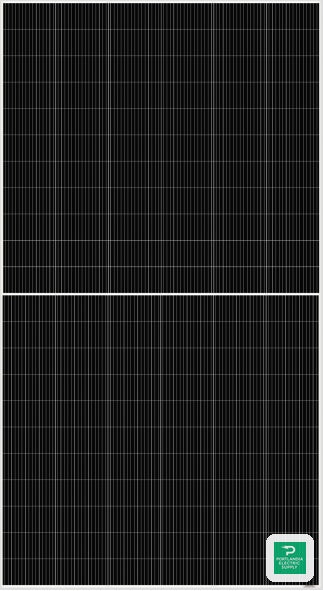

Type Monocrystalline Model No. AS-8M132N-BHC-680 Product Warranty 20 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 680 Wp Voltage at Maximum Power (Vmpp) 39.2 V Current at Maximum Power (Impp) 17.35 A Open Circuit Voltage (Voc) 47.1 V Short Circuit Current (Isc) 18.29 A Panel Efficiency 21.9 % Maximum Power (Pmax) 514 Wp Voltage at Maximum Power (Vmpp) 37.1 V Current at Maximum Power (Impp) 13.88 A Open Circuit Voltage (Voc) 44.6 V Short Circuit Current (Isc) 14.75 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38.7 kg Cell Size 210×210 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box D
Technology: Bifacial, TOPCon, N-type
Power Range: 675 ~ 700 Wp
Panel Efficiency: 21.7 ~ 22.7 %
Weight: 38.7 kg
Seller Name: Amerisolar EU
Country: China
| SKU | PES-SPS-SOL-1111 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
