• SMA Sunny Tripower X 480V 30KW 108A String Inverter | STP 30-US-50 — PES Supply
1 1
Manufacturer sma america
OEM Authorized BABA Compliant Full Warranty 7-10 Business Days Delivery
Out of Stock
SKU: GAP-P2-SMASUNNYTRIPOWERX480Brand: sma america

Out of Stock

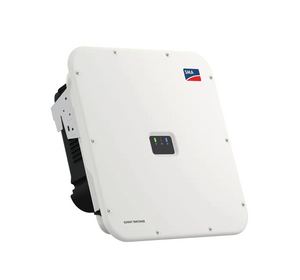

SMA Sunny Tripower X 480V 30KW 108A String Inverter | STP 30-US-50

SMA Sunny Tripower X 480V 30KW 108A String Inverter | STP 30-US-50

$4,617.00 USD
$4,620.00 USD $4,617.00 USD
Sale Sold out
Shipping calculated at checkout.
Delivery: 7-10 business days. Freight calculated at checkout based on destination & weight.
Return policy

Specification

  • SKU:GAP-P2-SMASUNNYTRIPOWERX480
View full details
7-10 business days delivery from Louisville, KY
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
sma america

PES Supply is an authorized distributor for sma america. 50,000+ SKUs from 169 authorized brands.

SMA Sunny Tripower X 480V 30KW 108A String Inverter | STP 30-US-50

The sma america (US-50) is engineered for professional solar and electrical installations. Rated at 480vW. Priced below competitor at $4617.00.

Key Specifications

  • Manufacturer: sma america
  • Model: US-50
  • Category: Inverters
  • Wattage: 480vW
  • Price: $4617.00
  • Availability: In stock — same-day shipping

Order from PES Supply — your source for Tier 1 solar equipment, EOL upgrades, and electrical components. Same-day shipping by 2 PM ET. BABA compliant. Wholesale and installer pricing available.

SKUGAP-P2-SMASUNNYTRIPOWERX480
Manufacturersma america

    No documents available for this product. Contact us to request documentation.

    SMA Sunny Tripower X 480V 30KW 108A String Inve... $4,617.00

    You May Also Need

    Generac Protector 130KW Automatic Standby Liquid-Cooled Gaseous Engine Generator in Aluminum Enclosure - RG13090

    Generac Protector 130KW Automatic Standby Liquid-Cooled Gaseous Engine Generator in Aluminum Enclosure - RG13090

    $32,988.75
    GENERAC RG03015GNAX 30kw 120/208-Volt Three-Phase Protector Standby Generator

    GENERAC RG03015GNAX 30kw 120/208-Volt Three-Phase Protector Standby Generator

    $12,966.00
    Anker SOLIX AX170J40 Power Dock for E10 Automatic Backup Kit | 10-30kW Turbo Output | Smart Grid & Storm-Guard

    Anker SOLIX AX170J40 Power Dock for E10 Automatic Backup Kit | 10-30kW Turbo Output | Smart Grid & Storm-Guard

    $1,996.00
    Anker SOLIX G17E114C E10 Automatic Infinite Backup Kit | 12kWh LiFePO4 Battery | 10-30kW Turbo Output | 5X Backup Time | Smart Grid & Storm-Guard

    Anker SOLIX G17E114C E10 Automatic Infinite Backup Kit | 12kWh LiFePO4 Battery | 10-30kW Turbo Output | 5X Backup Time | Smart Grid & Storm-Guard

    $9,396.00
    Anker SOLIX B17E114E 2-Set E10 Automatic Infinite Backup Kit | 24kWh LiFePO4 Battery | 10-30kW Turbo Output | 5X Backup Time | Smart Grid & Storm-Guard

    Anker SOLIX B17E114E 2-Set E10 Automatic Infinite Backup Kit | 24kWh LiFePO4 Battery | 10-30kW Turbo Output | 5X Backup Time | Smart Grid & Storm-Guard

    $15,695.00
    Generac RG13090 Protector 130KW Automatic Standby Generator

    Generac RG13090 Protector 130KW Automatic Standby Generator

    $39,756.00

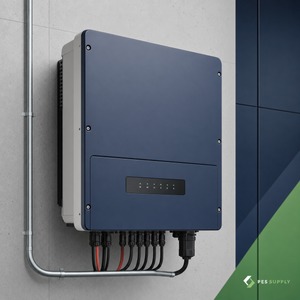

    Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US

    Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US

    $11,596.00
    2.4L 30kW/kVA Cold Weather Kit

    2.4L 30kW/kVA Cold Weather Kit

    $253.99

    Specifications

    Datasheet
    Max Dc Voltage 1000 V
    Min Dc Voltage Startup 150 V / 188 V
    Mppt Trackers 3 (2 strings each)
    Max Input Current Per Mppt 24 A
    Max Short Circuit Current Per Mppt 37.5 A
    Nominal Ac Voltage 480 V / 277 V
    Ac Voltage Range 244-303 V
    Grid Frequency 60 Hz
    Phases 3
    Topology Transformerless
    Cooling OptiCool (forced convection, variable speed fans)
    Enclosure Rating Type 4X (UL 50E)
    Operating Temp -25 to +60 C
    Model STP 30-US-50
    Nominal Output Power 30000 W
    Max Apparent Power 30000 VA
    Max Output Current 36 A
    Max Pv Array Power 45000 Wp
    Mpp Voltage Range 515-800 V
    Cec Efficiency 98 %

    Product Description

    • SMA Sunny Tripower X 480V 30KW 108A String Inverter | STP 30-US-50

      The sma america (US-50) is engineered for professional solar and electrical installations. Rated at 480vW. Priced below competitor at $4617.00.

      Key Specifications

      • Manufacturer: sma america
      • Model: US-50
      • Category: Inverters
      • Wattage: 480vW
      • Price: $4617.00
      • Availability: In stock — same-day shipping

      Order from PES Supply — your source for Tier 1 solar equipment, EOL upgrades, and electrical components. Same-day shipping by 2 PM ET. BABA compliant. Wholesale and installer pricing available.
