Sungrow 4400KVA 1500VDC 4 MPPT 3 Phase PV Central Inverter - SG4400UD-MV-US

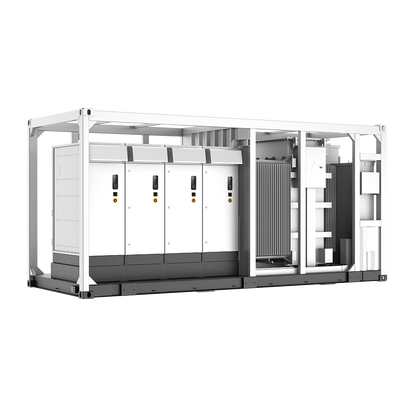

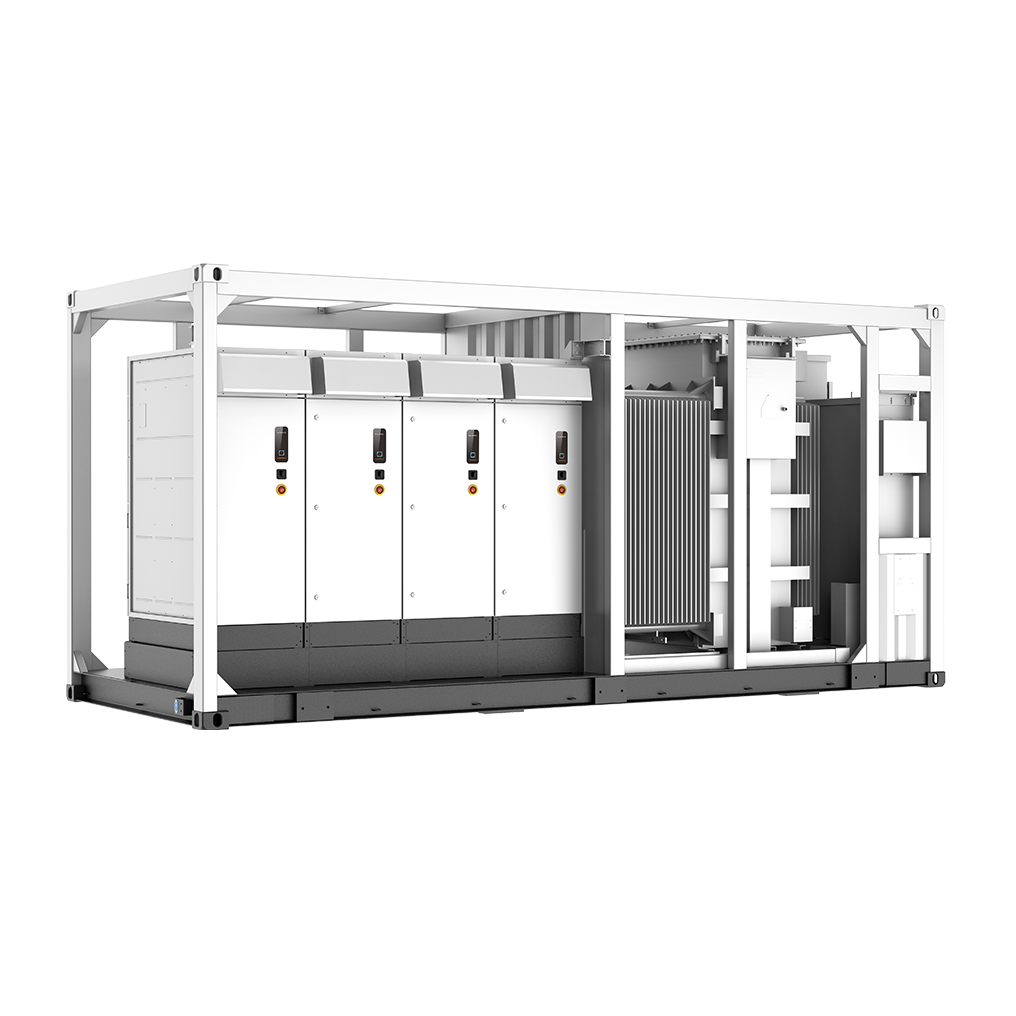

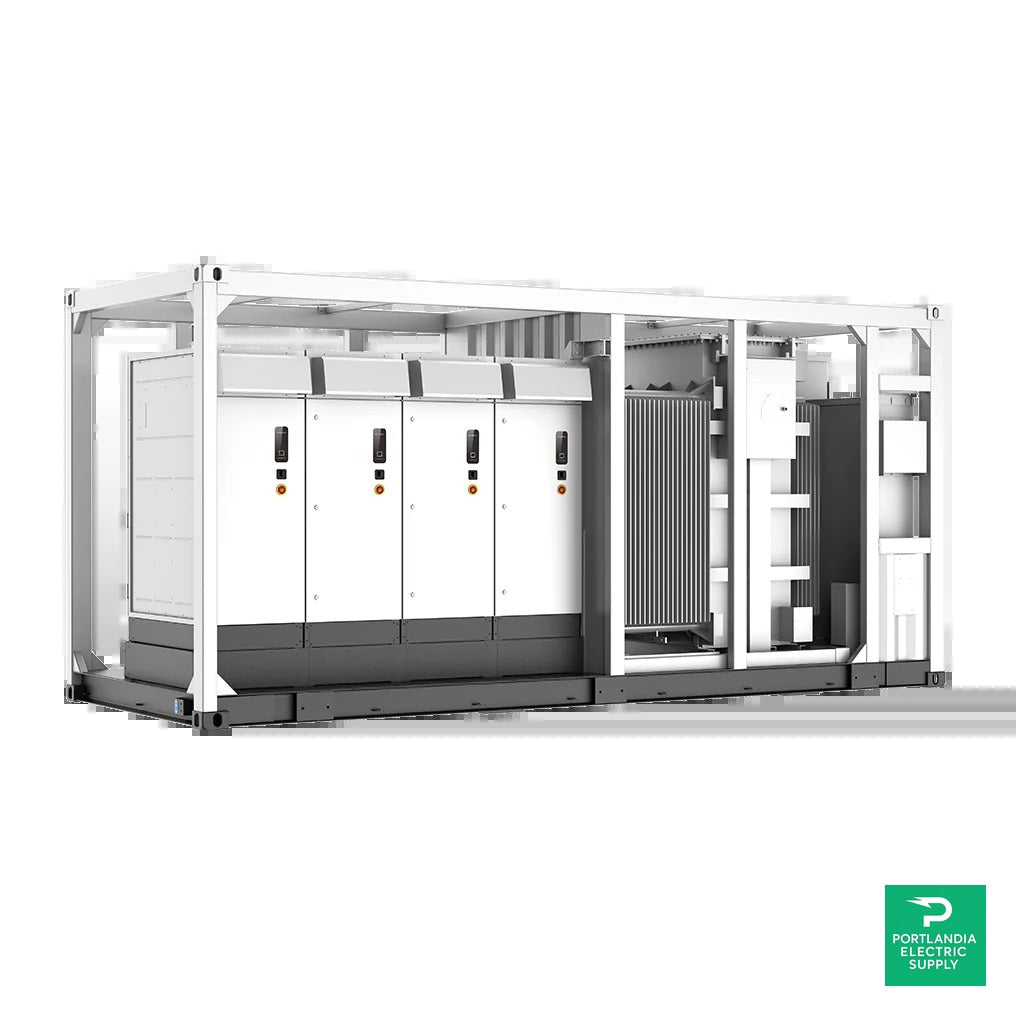

The Sungrow SG4400UD-MV-US is a containerized MV, grid-connected PV inverter for 1500 Vdc systems with an integrated MV transformer and auxiliary power supply. It delivers full power at 40 °C (104 °F) with high efficiency and robust grid support.

Type designation
Model	SG4400UD-MV-US
Input (DC)
Max. PV input voltage	1500 V
Min. / Start-up input voltage	915 V / 955 V
Available DC fuse sizes	250 A – 630 A
MPP voltage range	915 – 1500 V
Full power MPP voltage range @ 40 °C	915 – 1337 V
No. of independent MPPTs	4
No. of DC inputs	28 inputs (negative grounding); optional: 24 inputs (floating)
Max. PV input current	4 × 1226 A
Max. DC short-circuit current	4 × 3528 A
PV array configuration	Negative grounding or floating
Output (AC)
AC output power	4400 kVA @ 40 °C (optional: 4400 kVA @ 45 °C)
Max. AC output current	73 A
Nominal grid frequency / range	60 Hz / 57–63 Hz
THD	< 3% (at nominal power)
Power factor (nominal / adjustable)	> 0.99 / 0.8 leading – 0.8 lagging
Nominal AC voltage (MV)	34.5 kV
Efficiency
Max. inverter unit efficiency	98.9%
CEC inverter unit efficiency	98.5%
Max. efficiency (including transformer)	98.2%
CEC efficiency (including transformer)	97.5%
Protection & Functions
DC protection	DC load switch + fuse
AC protection	MV load switch + fuse
Surge protection	DC Type II / AC Type II
Grid monitoring / Ground fault monitoring	Yes / Yes
Insulation monitoring	Yes
Overheat protection	Yes
General data
Dimensions (W × H × D)	6058 × 2896 × 2438 mm (238.5 × 114.0 × 96.0 in)
Weight	≤ 36,376 lb
Transformer vector	Dy1 (optional: Dy11, Yny0, YNd1)
Degree of protection	NEMA 4X (electronic enclosure) / NEMA 3R (others)
Auxiliary power supply	5 kVA 120 Vac; optional 35 kVA 480 Vac + 5 kVA 120 Vac
Operating ambient temperature	−35 to 60 °C (−31 to 140 °F); optional: −40 to 60 °C (−40 to 140 °F)
Allowable relative humidity	0% – 100%
Cooling method	Forced air cooling + KNAN (optional: ONAN)
Max. operating altitude	1000 m (standard) / > 1000 m (customized)
Display	LED indicators, Ethernet + WebHMI
Night reactive power function	Yes
DC-coupled storage interface / Charging from grid	Optional / Optional
Communication	RS485, Ethernet (SunSpec/Modbus)
Compliance	UL1741; UL62109-1; CSA C22.2 No.107.1-16; IEEE 1547-2018; IEEE 1547.1-2020; UL1741 SA/SB; California Rule 21; HECO SRD V2.0; NEC 2023; PRC-024

All specifications are taken from the Sungrow SG4400UD-MV-US datasheet (V28, NA). Product overview corroborated on the Sungrow US product page.
