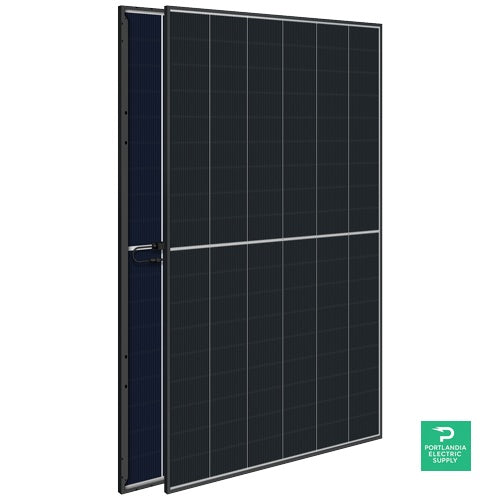

Astronergy 530 530W N-Type TOPCon Bifacial Solar Panel
Model 530 | N-Type TOPCon | 108 Half-Cell | Bifacial | 1500V System Voltage
Product Overview
The Astronergy 530 solar panel is a high-efficiency module built for reliable long-term performance. It uses N-type TOPCon technology with bifacial construction to capture more energy from both sides. This design supports stronger output, improved durability, and better value over time. With a 530 Wp maximum power rating and up to 23.8% efficiency, it suits residential and commercial solar projects. The module also offers a strong power tolerance of 0 to +3%, which helps ensure dependable real-world generation. Its black anodized frame, IP68 junction box, and MC4 connector support straightforward installation and stable field performance.
Key Benefits
High output: Delivers up to 530 Wp for strong energy production in demanding installations.
Excellent efficiency: Reaches 23.8% module efficiency for better use of available roof or ground space.
Bifacial gain potential: Bifacial design can capture reflected light from the rear side for added energy yield.
Stable performance: N-type TOPCon cell technology supports lower degradation and consistent long-term output.
Built for durability: Anodized aluminum framing, IP68 protection, and robust glass construction improve reliability.
How It Works
This module converts sunlight into usable electricity through high-performance mono-crystalline cells. Its N-type TOPCon architecture helps reduce energy loss and supports strong output across the panel’s service life. The bifacial format adds another source of generation by using light that reflects onto the rear side. That can improve yield in installations with bright surfaces, open mounting, or elevated racking. Half-cell layout also helps improve electrical behavior and reduce resistive losses. Together, these features create a panel that performs efficiently under real operating conditions while keeping long-term degradation under control.
Photovoltaic conversion: The cells absorb sunlight and generate direct current electricity. The module is designed to convert solar irradiance efficiently into power for the system.
Bifacial rear-side capture: Light reflected from surfaces below the module can be absorbed from the rear side. This can raise overall energy output in suitable installations.
System integration: The 1500V design, MC4 connector, and standard cable layout support efficient string configuration. That helps simplify installation and system planning.
Technical Specifications
| Technology | Bifacial, TOPCon, N-type |
| Model No. | 530 |
| Maximum Power (Pmax) | 530 Wp |
| Voltage at Maximum Power (Vmpp) | 34.6 V |
| Current at Maximum Power (Impp) | 15.32 A |
| Open Circuit Voltage (Voc) | 41.59 V |
| Short Circuit Current (Isc) | 16.04 A |
| Panel Efficiency | 23.8% |
| Power Tolerance | 0 to +3% |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | 0.043%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 30 A |
| Panel Dimension (H/W/D) | 1961 x 1134 x 30 mm |
| Weight | 26.9 kg |
| Cell Number | 108 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium, Black |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Cable Length | 1200 mm |
| Seller Name | Chint New Energy Technology Co., Ltd. (Astronergy) |
| Country | China |
Certifications & Compliance
Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, Tier 1
Inverter Compatibility: Designed for standard 1500V string solar systems
Environmental: Bifacial construction, PID resistance, and carbon neutrality support
Warranty: 25-year product warranty and 1-year power warranty to 99%, with 30-year output at 87.4% and 0.42% total degradation
