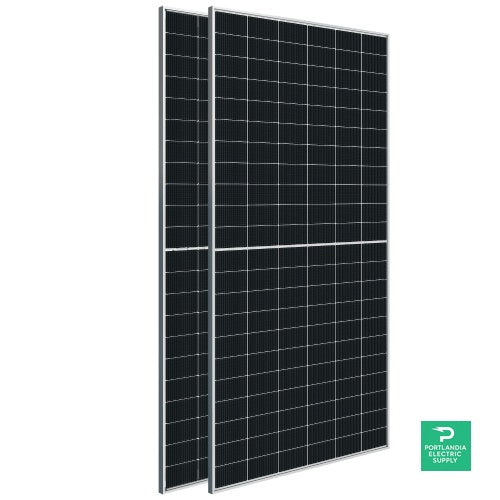

Astronergy 615 615W Bifacial N-Type TOPCon Solar Panel
Model 615 | Bifacial N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Astronergy 615 solar panel is built for high-output solar projects that demand strong efficiency and long-term reliability. This bifacial module uses N-type TOPCon technology to support excellent performance across a wide power range. Its 615 Wp rating helps reduce system count in larger installations. The panel is engineered with 132 cells, a durable anodized aluminium frame, and IP68 junction box protection. It is designed for stable energy production in demanding climates. The 22.8% efficiency level makes it a strong choice for commercial and utility-scale applications.
Key Benefits
High power output: Delivers up to 615 Wp, which supports fewer modules per installation.
Bifacial energy gain: Rear-side generation can improve total yield in suitable mounting conditions.
N-type TOPCon design: Advanced cell technology supports better efficiency and lower degradation over time.
Strong durability: The anodized aluminium frame and IP68 junction box are built for harsh environments.
Wide operating range: Performs reliably from -40 to 85 °C for diverse site conditions.
Low degradation profile: The module is rated for 99% in year one and 87.4% after 30 years.
How It Works
This solar panel converts sunlight into electricity through advanced bifacial N-type cells. The front side captures direct sunlight, while the rear side can absorb reflected light from the installation surface. That design helps increase total energy harvest in well-matched arrays. TOPCon cell architecture improves electron flow and supports higher efficiency. The panel is also built to manage heat, moisture, and electrical stress over time. Together, these features help the module deliver strong output in utility and commercial solar systems.
Bifacial generation: The module captures light from both sides. This can raise energy yield where ground reflectance is favorable.
N-type TOPCon cells: These cells support efficient current movement. They also help maintain performance over long service periods.
Protected module construction: The IP68 junction box improves resistance to dust and water. The aluminium frame adds stability during installation and use.
Technical Specifications
| Brand | Astronergy |
| Model Number | 615 |
| Technology | Bifacial, TOPCon, N-type |
| Power Range | 615 ~ 635 Wp |
| Maximum Power (Pmax) | 615 Wp |
| Panel Efficiency | 22.8 ~ 23.5 % |
| Voltage at Maximum Power (Vmpp) | 41.43 V |
| Current at Maximum Power (Impp) | 14.84 A |
| Open Circuit Voltage (Voc) | 48.89 V |
| Short Circuit Current (Isc) | 16.02 A |
| Power Tolerance | 0 ~ +3 % |
| Operating Temperature Range | -40 - 85 °C |
| Temperature Coefficient of Pmax | -0.29 %/°C |
| Temperature Coefficient of Voc | -0.25 %/°C |
| Temperature Coefficient of Isc | 0.043 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
| Panel Dimension (H/W/D) | 2382x1134x30 mm |
| Weight | 31.65 kg |
| Cell Number | 132 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 350 mm |
| Seller Name | Chint New Energy Technology Co., Ltd. (Astronergy) |
| Country of Origin | China |
Certifications & Compliance
Certifications: Not provided in the supplied content.
Inverter Compatibility: Suitable for standard grid-tied and utility-scale solar system designs.
Environmental: Designed for wide operating temperatures and durable outdoor use.
Warranty: Product warranty: 15 years. Power warranty: 1 year at 99%, and 30 years at 87.4% output with 0.42% total degradation rate.
Documentation
Manufacturer PDF datasheet was not provided with the input.
