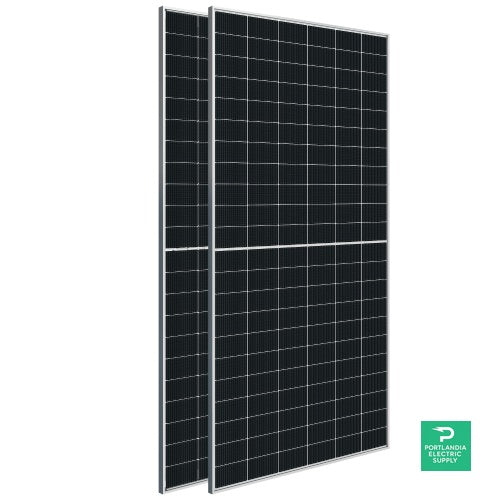

Astronergy 625 615–635W N-Type TOPCon Bifacial Solar Panel
Model No. 625 | N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Astronergy 625 is a high-output solar panel designed for demanding residential and commercial projects. It uses monocrystalline, N-type TOPCon technology for strong efficiency and reliable long-term performance. The bifacial design helps capture light from both sides, which can improve energy yield in suitable installations. With a rated power of 625 Wp and module efficiency of 23.1 percent, it delivers excellent output in a compact format. The panel is built for durability, with an anodized aluminium frame, IP68 junction box protection, and MC4 connectors. Its wide operating temperature range supports stable performance in harsh climates. The product also supports a 1500 V system voltage, making it well suited for modern solar arrays.
Key Benefits
High power output: The panel delivers 625 Wp, which supports strong system performance.
Excellent efficiency: A 23.1 percent efficiency rating helps maximize energy generation from available space.
Bifacial design: Rear-side light capture can improve yield in installations with reflective surfaces.
N-type TOPCon technology: This cell architecture supports efficient conversion and stable long-term performance.
Durable construction: An anodized aluminium frame and IP68 junction box protection help support reliable outdoor use.
How It Works
This module converts sunlight into electricity through advanced monocrystalline cells. The N-type TOPCon structure is engineered to improve carrier movement and reduce energy loss. That helps the panel maintain strong output under real-world conditions. Because the module is bifacial, it can also collect reflected light from the rear side. This can increase total generation when the array is installed above light-colored roofs or ground surfaces. The 132-cell layout helps distribute electrical performance efficiently across the module. Together, these design features support high power production, dependable operation, and long service life.
Sunlight Conversion: The monocrystalline cells absorb sunlight and convert it into direct current electricity. This process is optimized by the N-type TOPCon cell design.
Bifacial Gain: The rear side can capture reflected light from the installation surface. This additional input can improve overall system yield.
Electrical Performance: The module operates at 41.69 V Vmpp and 14.99 A Impp. These values support stable and efficient power delivery.
Technical Specifications
| Brand | Astronergy |
| Model No. | 625 |
| Technology | Monocrystalline, N-type, TOPCon, Bifacial |
| Power Range | 615 ~ 635 Wp |
| Maximum Power (Pmax) | 625 Wp |
| Module Efficiency | 23.1% |
| Efficiency Range | 22.8 ~ 23.5% |
| Voltage at Maximum Power (Vmpp) | 41.69 V |
| Current at Maximum Power (Impp) | 14.99 A |
| Open Circuit Voltage (Voc) | 49.19 V |
| Short Circuit Current (Isc) | 16.19 A |
| Power Tolerance | 0 ~ +3% |
| Operating Temperature Range | -40 ~ 85 °C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | 0.043%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
| Panel Dimension (H/W/D) | 2382 x 1134 x 30 mm |
| Weight | 31.65 kg |
| Cell Number | 132 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 350 mm |
| Seller Name | Chint New Energy Technology Co., Ltd. (Astronergy) |
| Country of Origin | China |
Certifications & Compliance
Certifications: Not specified in the provided product data.
Inverter Compatibility: Suitable for modern high-voltage solar systems with 1500 V design support.
Environmental: Operating temperature range from -40 to 85 °C.
Warranty: 15 years product warranty, 1 year power warranty of 99 percent, and 30 years of 87.4 percent output with 0.42 percent total degradation rate.
Documentation
Manufacturer PDF datasheet is not provided for this product listing.
