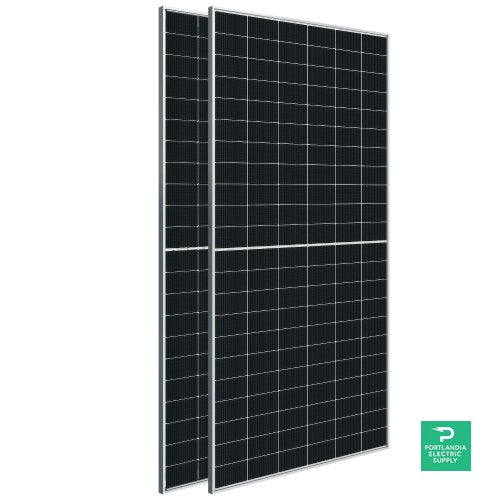

Astronergy 630 630W N-Type TOPCon Bifacial Solar Panel
Model No. 630 | N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Astronergy 630 solar panel is built for high-output projects that need reliable performance and strong long-term value. This module uses N-type TOPCon technology and a bifacial design to support improved energy generation in real-world installations. It offers a maximum power rating of 630 Wp and an efficiency of 23.3%, making it suitable for utility-scale and commercial systems. The 132-cell format helps deliver stable electrical performance. With a power tolerance of 0 to +3%, the module is designed to produce dependable output across demanding operating conditions.
Key Benefits
High Power Output: The module delivers up to 630 Wp for strong system-level energy production.
Excellent Efficiency: With 23.3% efficiency, it supports better land-use efficiency and project yield.
Bifacial Generation: The bifacial structure can capture additional light from the rear side in suitable installations.
N-Type TOPCon Technology: N-type cells are known for strong performance and improved degradation behavior over time.
Project-Friendly Design: The 1500V system voltage rating supports modern commercial and utility-scale electrical layouts.
How It Works
This module converts sunlight into electricity through advanced N-type TOPCon solar cells. The cells create direct current when exposed to light, and that power is then sent through the system inverter for usable AC output. The bifacial design can also generate extra energy from reflected light behind the panel. That makes it especially effective in installations with bright ground surfaces or optimized mounting structures. The panel is engineered for stable output across a wide temperature range. Its electrical design supports consistent operation in demanding outdoor environments.
Light Absorption: Solar radiation is absorbed by the N-type cells, which begin generating direct current immediately. This process supports efficient energy conversion under standard operating conditions.
Bifacial Capture: Rear-side illumination can contribute additional output in suitable layouts. This can improve total system yield without changing the front-facing footprint.
System Integration: The module’s voltage and current values are designed for straightforward integration with modern solar equipment. Its specifications support efficient string design and project planning.
Technical Specifications
| Brand | Astronergy |
| Model Number | 630 |
| Technology | Bifacial, TOPCon, N-type |
| Power Range | 615 ~ 635 Wp |
| Maximum Power (Pmax) | 630 Wp |
| Panel Efficiency | 22.8 ~ 23.5 % |
| Module Efficiency | 23.3 % |
| Voltage at Maximum Power (Vmpp) | 41.82 V |
| Current at Maximum Power (Impp) | 15.07 A |
| Open Circuit Voltage (Voc) | 49.34 V |
| Short Circuit Current (Isc) | 16.27 A |
| Power Tolerance | 0 ~ +3 % |
| Operating Temperature Range | -40 - 85 °C |
| Temperature Coefficient of Pmax | -0.29 %/°C |
| Temperature Coefficient of Voc | -0.25 %/°C |
| Temperature Coefficient of Isc | 0.043 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
| Panel Dimension (H/W/D) | 2382x1134x30 mm |
| Weight | 31.65 kg |
| Cell Number | 132 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 350 mm |
| Country of Origin | China |
| Seller Name | Chint New Energy Technology Co., Ltd. (Astronergy) |
Certifications & Compliance
Certifications: Manufacturer specifications provided for Astronergy module series
Inverter Compatibility: Suitable for modern 1500V solar system designs
Environmental: Operating temperature range from -40 to 85 °C
Warranty: 15-year product warranty, 1-year power warranty of 99%, and 30-year power warranty of 87.4% with 0.42% total degradation rate
