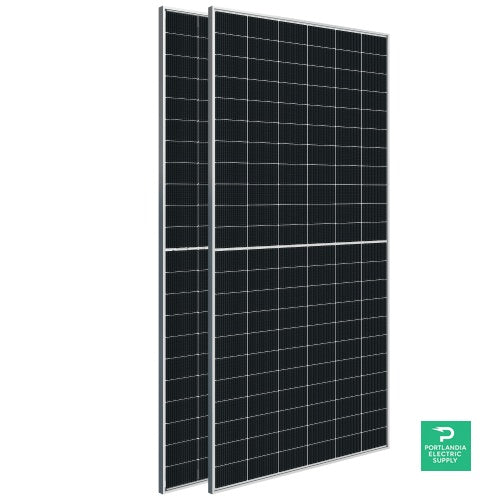

Astronergy 635 635W N-Type TOPCon Bifacial Solar Panel
Model No. 635 | N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Astronergy 635 is a high-output solar panel designed for demanding commercial and utility projects. It uses monocrystalline N-type TOPCon technology for strong conversion performance and reliable long-term operation. The bifacial design helps capture light from both sides, which can improve energy yield in suitable installations. With a rated output of 635 Wp and efficiency reaching 23.5%, this module is built for serious power generation. Its 132-cell format supports stable electrical performance across a wide operating range. The panel also includes a robust anodized aluminium frame, IP68 junction box protection, and MC4 connectors for practical installation.
Key Benefits
High Power Output: Delivers a strong 635 Wp rating for large-scale energy production.
Excellent Efficiency: Reaches up to 23.5% efficiency for improved space utilization.
Bifacial Technology: Captures light from both sides to support higher total energy yield.
N-Type TOPCon Design: Supports strong performance and reduced degradation over time.
Durable Construction: Includes an anodized aluminium frame, 2 mm glass, and IP68 protection.
How It Works
This module converts sunlight into usable electrical energy through advanced monocrystalline cells. The N-type TOPCon cell structure helps improve carrier transport and supports stronger efficiency. Its bifacial architecture allows the rear side to absorb reflected light from the installation surface. That can increase total output when the mounting environment is optimized. The 132-cell layout helps balance voltage and current for stable operation. Together, these features create a panel suited to high-performance solar systems.
Light-to-Power Conversion: Solar radiation is absorbed by the cells and converted into electricity. The module is engineered for strong output under demanding conditions.
Bifacial Energy Capture: The rear side can absorb reflected light from bright surfaces. This can add extra generation where site conditions support rear irradiance.
System Integration: The panel is connected through MC4 connectors and a 4 mm² cable. It is designed for compatibility with high-voltage solar arrays up to 1500 V.
Technical Specifications
| Brand | Astronergy |
| Model No. | 635 |
| Technology | Monocrystalline, Bifacial, TOPCon, N-type |
| Power Range | 615 ~ 635 Wp |
| Maximum Power (Pmax) | 635 Wp |
| Voltage at Maximum Power (Vmpp) | 41.86 V |
| Current at Maximum Power (Impp) | 15.17 A |
| Open Circuit Voltage (Voc) | 49.42 V |
| Short Circuit Current (Isc) | 16.35 A |
| Panel Efficiency | 22.8 ~ 23.5 % |
| Operating Temperature Range | -40 - 85 °C |
| Temperature Coefficient of Pmax | -0.29 %/°C |
| Temperature Coefficient of Voc | -0.25 %/°C |
| Temperature Coefficient of Isc | 0.043 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
| Dimensions (H/W/D) | 2382 x 1134 x 30 mm |
| Weight | 31.65 kg |
| Cell Number | 132 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 350 mm |
| Seller Name | Chint New Energy Technology Co., Ltd. (Astronergy) |
| Country of Origin | China |
Certifications & Compliance
Certifications: Not provided in the supplied content.
Inverter Compatibility: Suitable for high-voltage solar systems up to 1500 V.
Environmental: Operating temperature range from -40 to 85 °C. IP68 junction box protection supports durability.
Warranty: 15 years product warranty, 1 year power warranty at 99%, and 30 years at 87.4% output with 0.42% total degradation rate.
Documentation
Manufacturer PDF datasheet was not provided with the source content.
