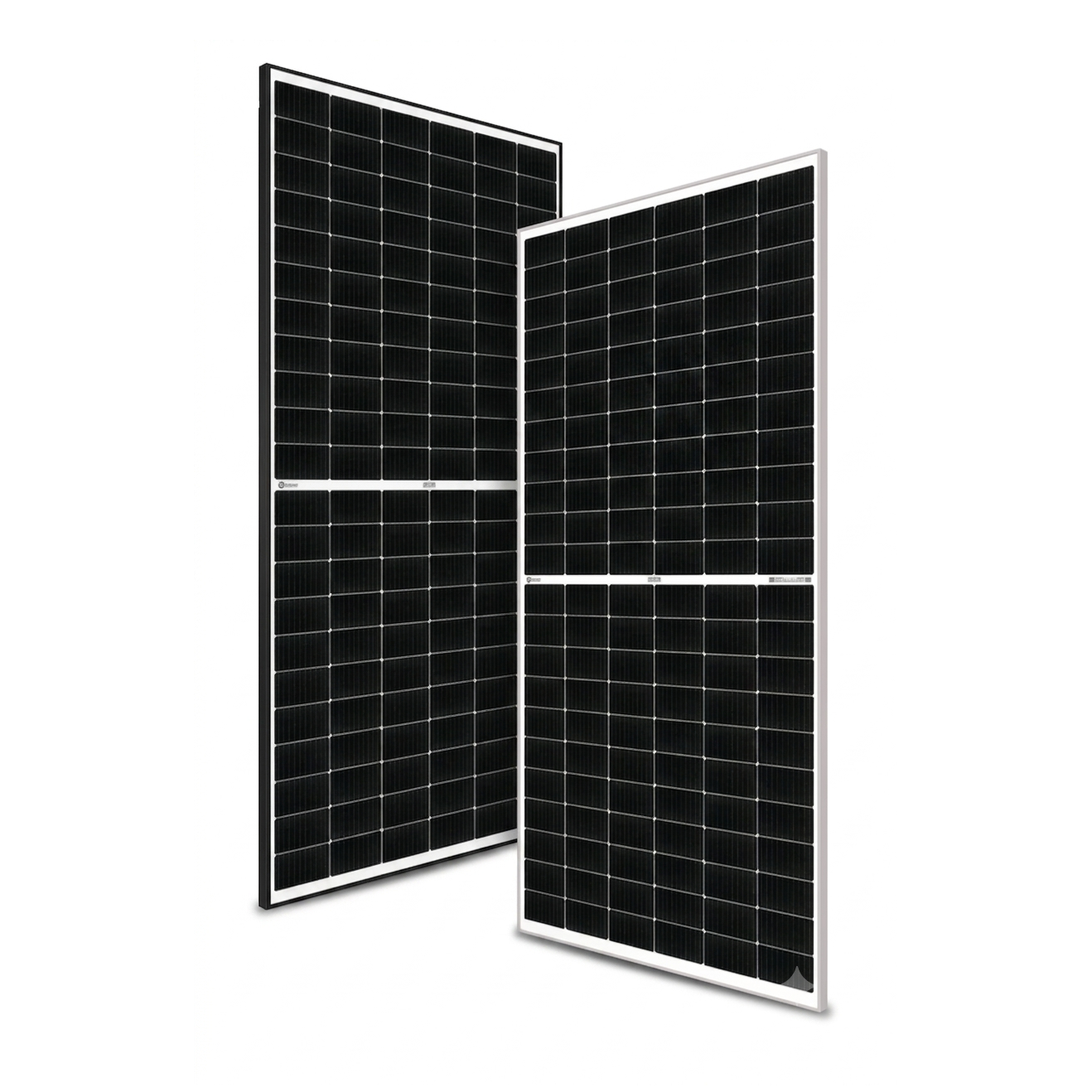

Model BBS24MC480 | Mono PERC | 132 Half-Cut Cells 182×91 mm | Bifacial | 1500V System Voltage
The Bluebird Solar BBS24MC480 480W Mono PERC bifacial solar panel is designed for high efficiency rooftop and ground mount systems in India and beyond. This monocrystalline module delivers up to 480 Wp front-side power, supported by advanced half-cut cell technology for lower electrical losses and superior field performance. With module efficiency of 19.45% and a maximum system voltage of 1500 V, it suits both residential arrays and large commercial or utility projects. The panel uses 132 half-cut M10 size cells with multi-busbar interconnections to enhance reliability and energy yield. Anodized aluminium framing and 3.2 mm anti-reflection tempered glass provide strong mechanical strength. A 12 year product warranty and 30 year power warranty help secure long term solar investment returns.
High power density for limited roof space: Deliver up to 480 Wp from a compact 2100x1133 mm footprint, increasing energy generation per square meter and enabling more output from constrained rooftops and commercial sheds.
Advanced Mono PERC half-cut cell technology: Half-cut monocrystalline PERC cells reduce internal resistance and lower mismatch losses, which helps improve performance under partial shading and low light conditions while boosting overall reliability.
Extended 30 year performance warranty: The module carries a 12 year product warranty and a 30 year power warranty with only 0.67% annual degradation, giving long term peace of mind and predictable lifetime energy production.
Robust construction for harsh climates: AR coated 3.2 mm tempered glass, EVA encapsulation and an anodized aluminium frame help the panel withstand high temperatures, heavy wind, dust and challenging Indian environmental conditions.
Flexible application range: With 1500 V maximum system voltage and 25 A series fuse rating, this module integrates easily into modern string inverter or central inverter systems for residential, commercial and utility scale projects.
This Bluebird Solar BBS24MC480 module converts sunlight into usable DC electricity through high efficiency monocrystalline PERC solar cells. Each of the 132 half-cut cells is wired in an optimized series parallel layout to deliver stable voltage and current at typical operating conditions. When sunlight hits the front glass, photons are absorbed in the silicon cells and release electrons which flow as electric current through the multi-busbar grid. The panel outputs up to 480 Wp at a maximum power voltage of 37.78 V and current of 12.71 A, which is then fed into a compatible solar inverter. The inverter converts the DC energy into AC power for household or commercial loads or export to the grid. Temperature coefficients have been carefully engineered so that the module maintains reliable performance in hot climates.
Mono PERC half-cut cell generation: Monocrystalline PERC cells use a passivated rear surface to capture more light and improve conversion efficiency. Half-cut cell design divides each cell into two parts, which reduces current in each path and therefore lowers resistive losses. This configuration improves energy yield, especially under high irradiance and in long string layouts.
Optimized electrical output and protection: At standard test conditions, the panel delivers 480 Wp with 37.78 V at maximum power and 44.95 V open circuit. Current at maximum power reaches 12.71 A with a short circuit current of 13.58 A, allowing strong array performance with modern inverters. A rated series fuse value of 25 A supports safe integration in high current strings and helps protect the module from overcurrent events.
Thermal management and long term durability: The operating temperature range spans from -40°C to 85°C, so the panel works in both cold and hot regions. Temperature coefficients of -0.35% per °C for Pmax and -0.27% per °C for Voc limit output losses on very hot days. EVA encapsulation, AR coated tempered glass and an anodized aluminium frame protect cells from moisture, dust and mechanical stress, while the IP rated junction box keeps electrical connections safe.
| Module Type | Monocrystalline Mono PERC, Bifacial capable |
| Model Number | BBS24MC480 |
| Power Range | 480 Wp to 510 Wp (series range) |
| Maximum Power (Pmax) - Front Side | 480 Wp |
| Voltage at Maximum Power (Vmpp) - Front Side | 37.78 V |
| Current at Maximum Power (Impp) - Front Side | 12.71 A |
| Open Circuit Voltage (Voc) - Front Side | 44.95 V |
| Short Circuit Current (Isc) - Front Side | 13.58 A |
| Secondary Power Rating (Pmax) | 359.04 Wp (additional operating point) |
| Voltage at Maximum Power (Vmpp) - Secondary | 35.12 V |
| Current at Maximum Power (Impp) - Secondary | 10.23 A |
| Open Circuit Voltage (Voc) - Secondary | 42.03 V |
| Short Circuit Current (Isc) - Secondary | 10.94 A |
| Module Efficiency | 19.45% (up to 20.66% across series) |
| Cell Size | 182 × 91 mm |
| Number of Cells | 132 half-cut cells |
| Panel Dimensions (H × W × D) | 2100 × 1133 × 35 mm |
| Weight | 27 kg |
| Glass Type and Thickness | 3.2 mm tempered PV glass with anti-reflection coating |
| Encapsulant | EVA (ethylene vinyl acetate) |
| Frame | Anodized aluminium alloy frame |
| Junction Box Protection | IP rated junction box for outdoor use |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Nominal Operating Temperature | 45 ± 2 °C |
| Operating Temperature Range | -40 °C to 85 °C |
| Temperature Coefficient of Pmax | -0.35 % / °C |
| Temperature Coefficient of Voc | -0.27 % / °C |
| Temperature Coefficient of Isc | 0.050 % / °C |
| Total Degradation Rate | 30 years to 80% of initial power, approx. 0.67% per year |
| Manufacturer / Seller | Bluebird Solar Pvt. Ltd., India |
Certifications: ALMM (under process for some variants), BIS and IEC conformity mentioned in brand literature; detailed certificate list available from Bluebird Solar on request.
Inverter Compatibility: Compatible with most 1500 V string and central grid-tied inverters, as well as hybrid and off-grid inverters that accept the stated voltage and current range.
Environmental: Designed to withstand harsh outdoor environments, with AR coated tempered glass, IP rated junction box and resistance to typical urban and industrial conditions.
Warranty: 12 year limited product warranty and 30 year linear power warranty, with power output maintained at 80% of initial rated power after 30 years and an annual degradation rate of about 0.67%.
● Available | Contact us for lead time and pricing
