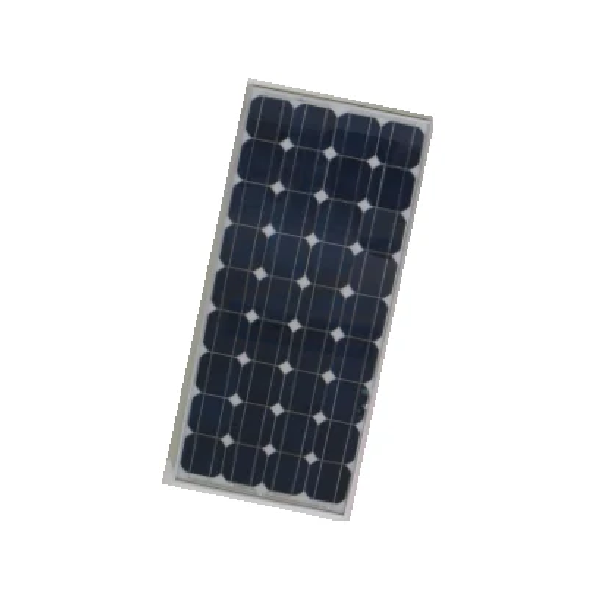

Ekarat Solar EE1140
Ekarat Solar EE1140
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-4764

Ekarat Solar EE1140

Ekarat Solar EE1140

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Ekarat EE1140 140W Monocrystalline 36-Cell Solar Panel

Model EE1140 | Monocrystalline Silicon | 36 Full-Cell | Monofacial | 1000V System Voltage

140 W
Max Power Output
>14%
Module Efficiency
36
Monocrystalline Cells

Product Overview

The Ekarat EE1140 140W monocrystalline solar panel is designed for dependable off‑grid and grid‑connected power where space and reliability matter. This compact 36‑cell module delivers a rated output of 140 watts, with module efficiency above 14 percent for strong performance in real‑world conditions. Its monocrystalline cell technology provides stable energy production for solar home systems, rural electrification, telecommunication stations, battery charging and small rooftop arrays. A robust tempered glass front, weatherproof back sheet and anodized aluminium frame protect the cells in demanding outdoor environments. The panel is engineered in Thailand by Ekarat Engineering, with performance backed by long term power and product warranties for added investment confidence.

Key Benefits

Reliable 140W power output: The EE1140 module delivers up to 140 watts of rated power, ideal for 12V and small DC systems.

High efficiency monocrystalline cells: More than 14 percent module efficiency helps maximise energy yield from limited roof or ground area.

Durable construction for harsh weather: Low iron tempered glass, EVA encapsulation and weatherproof back sheet protect performance over the long term.

Compact and easy to handle format: A footprint of 1481 x 661 mm and weight of 11.2 kg suit small rooftops, cabins and telecom sites.

Long term warranty protection: Enjoy 12 years product warranty and a 25 year linear power output warranty with clear degradation limits.

Flexible application range: The module suits stand‑alone systems, battery charging, village solar projects and grid‑connected arrays.

How It Works

This monocrystalline 140W solar panel converts sunlight into DC electricity using high quality silicon solar cells. When sunlight hits the 36 cells, photons are absorbed and released as electrical energy, creating current that flows through the panel’s busbars and cables. The module is typically connected to a charge controller for battery‑based systems, or to a solar inverter for grid‑connected installations. In off‑grid setups, the controller protects the battery while storing energy for use when the sun is not available. In grid systems, the inverter synchronises the power with the utility network. The EE1140 panel works as a modular building block, so several modules can be wired together to reach the desired array voltage and power level for each project.

Monocrystalline energy conversion: Each of the 36 monocrystalline cells forms a p‑n junction that generates direct current when illuminated. The superior cell design delivers stable voltage, with 17.84 V at maximum power under standard test conditions. Current at maximum power of 7.85 A provides a strong output for 12V battery charging and small inverters.

Module protection and durability: Low iron tempered glass with 3.2 mm thickness protects the cells while allowing high light transmission. EVA encapsulation bonds the cells to the front glass and back sheet, sealing them from moisture and mechanical stress. The anodized aluminium frame adds rigidity and simplifies mounting on roofs, poles or ground structures.

Safe power delivery and system integration: An IP65 junction box keeps electrical connections protected from dust and water in outdoor environments. Pre‑configured bypass diodes minimise power loss during partial shading by allowing current to flow around shaded cell strings. Cables with 4 mm² cross section and standard length simplify series or parallel connections within larger solar arrays.

Technical Specifications

Brand / Manufacturer Ekarat Solar Co., Ltd. (Ekarat Engineering Public Company Limited)
Country of Origin Thailand
Model Number EE1140
Module Type Monocrystalline, single glass, monofacial PV module
Rated Maximum Power (Pmax) 140 Wp
Power Tolerance ± 5 %
Module Efficiency More than 14 %
Voltage at Maximum Power (Vmpp) 17.84 V
Current at Maximum Power (Impp) 7.85 A
Open Circuit Voltage (Voc) 22.5 V
Short Circuit Current (Isc) 8.50 A
Temperature Coefficient of Power (Pmax) -0.4507 % / °C
Temperature Coefficient of Voc -0.0968 V / °C
Temperature Coefficient of Isc + 2.4 mA / °C
Maximum System Voltage 1000 V DC
Series Fuse Rating (Max) 15 A
Total Degradation Rate Approx. 0.8 % per year (based on 90 % at 10 years, 80 % at 25 years)
Number of Cells 36 monocrystalline cells
Panel Dimensions (H x W x D) 1481 x 661 x 38 mm
Dimension Tolerance ± 1 mm
Weight 11.2 kg
Front Glass Low iron tempered glass, 3.2 mm thickness
Back Sheet Weatherproof back sheet material
Encapsulant EVA (ethylene vinyl acetate)
Frame Type Clear anodized aluminium frame
Junction Box Protection Rating IP65, with bypass diodes for every 18 cells
Cable Cross Section 4 mm²
Cable Length 900 mm

Certifications & Compliance

Certifications: IEC 61215 crystalline silicon terrestrial PV module design and qualification, IEC 61730 safety standard, ISO 9001 quality management system (as per manufacturer datasheet).
Inverter Compatibility: Suitable for most 12V and higher voltage solar charge controllers and string inverters within 1000 V DC limit. Always verify input voltage and current ratings with the chosen device.
Environmental: Designed for outdoor use with IP65 junction box, tempered glass front and weatherproof back sheet for long term operation in varied climates.
Warranty: 12 year material and workmanship warranty, plus 25 year transferable linear power output warranty, guaranteed 90 % power at 10 years and 80 % power at 25 years under standard conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
