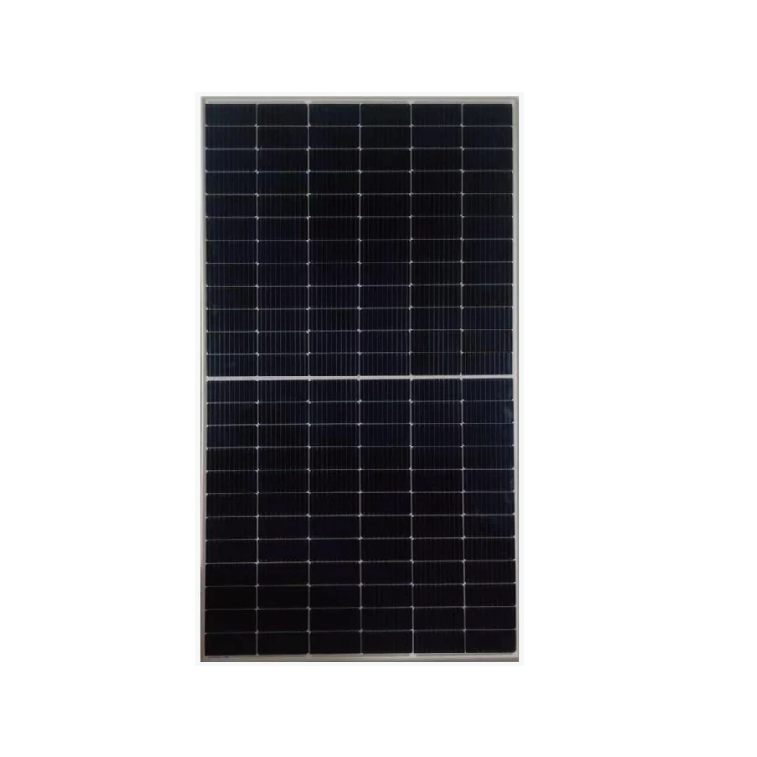

Model HG-540W-182M/144 | PERC Monocrystalline | 144 Half-Cut Cells | Monofacial | 1500V System Voltage
The Himin Solar HG-540W-182M/144 540W PERC monocrystalline solar panel delivers high power density for modern rooftop and ground mount systems. This advanced module combines 144 half-cut monocrystalline PERC cells, premium anti-reflection glass, and a robust anodized aluminium frame. Together they provide reliable performance for residential, commercial, and small industrial projects that need strong output from limited space. With module efficiency up to 20.88 percent, this panel helps reduce system footprint and balance of system costs. A 12 year product warranty and long term power warranty support dependable energy production over decades. The IP68 junction box, durable frame, and wide operating temperature range ensure stable operation in challenging climates and demanding installation environments. This makes the HG-540W-182M/144 a versatile choice for installers seeking bankable efficiency and consistent field performance.
High power density for compact arrays: The 540 W rated output and up to 20.88 percent efficiency allow more energy from fewer modules. This helps maximise roof space and reduce racking, cabling, and labour costs across many project types.
Reliable PERC monocrystalline technology: High quality PERC cells capture more sunlight through enhanced rear side passivation. This improves low irradiance response and supports higher yields across variable weather and seasonal conditions.
Engineered for harsh environments: The panel uses anti reflection coated tempered glass, an anodized aluminium frame, and an IP68 rated junction box. These features protect the module against dust, moisture, and mechanical stress in demanding outdoor locations.
Stable performance over the lifetime: A guaranteed output of 97 percent in year one and 80 percent after 25 years reflects a low 0.8 percent annual degradation rate. This supports predictable long term energy forecasts and stronger project returns.
Flexible system design and safety: With a maximum system voltage of 1500 V and 25 A series fuse rating, the module suits modern string inverters and long strings. This gives designers more options while maintaining electrical safety and compatibility.
This Himin Solar HG-540W-182M/144 PERC monocrystalline solar panel converts sunlight into usable DC electricity using high efficiency silicon cells. Each of the 144 half cut cells generates current when photons strike the semiconductor junction. The cells are wired in series and parallel to deliver a maximum power of 540 W at around 41.72 V and 12.95 A under standard test conditions. Anti reflection glass increases light transmission, while PERC cell design improves carrier collection from the rear surface. As irradiance and temperature change, the module continues operating within its wide range from minus 40 to 85 degrees Celsius. The produced DC power then flows through the junction box and 4 mm² cables to a compatible inverter or charge controller. Over time the module maintains performance thanks to controlled temperature coefficients and a low degradation profile.
PERC monocrystalline energy conversion: The panel features monocrystalline silicon cells with Passivated Emitter Rear Contact technology. This structure adds a passivation layer on the rear of each cell to reduce recombination losses and reflect unused light back into the silicon. As a result, more photons are captured and converted into electrical current, particularly under low light or diffuse conditions. This improves daily energy harvest compared with standard cell architectures.
Half-cut cell and electrical layout design: The 144 cells are split into half cut formats to lower resistive losses and enhance shade tolerance. Current in each cell string is reduced, which decreases internal heating and boosts overall efficiency. The layout also allows parts of the module to continue producing power when another section is shaded. This results in a more stable output curve and improved reliability across real world site conditions.
Thermal management and durability: The module is designed to perform under a nominal operating cell temperature of about 44 ± 2 degrees Celsius. Temperature coefficients of minus 0.36 percent per degree for Pmax and minus 0.27 percent per degree for Voc help limit losses on hot days. The tempered glass, EVA encapsulant, and anodized aluminium frame protect the cells against impact and weather. An IP68 junction box with three diodes supports safe operation, manages bypass in shaded conditions, and keeps connections sealed over the lifetime.
| Module Type | Monocrystalline PERC, 144 half-cut cells, monofacial design |
| Maximum Power (Pmax) | 540 Wp |
| Voltage at Maximum Power (Vmpp) | 41.72 V |
| Current at Maximum Power (Impp) | 12.95 A |
| Open Circuit Voltage (Voc) | 49.69 V |
| Short Circuit Current (Isc) | 13.86 A |
| Module Efficiency | 20.88 % (range 19.9 ~ 21.26 % across series) |
| Technology | PERC monocrystalline cell technology |
| Nominal Operating Cell Temperature (NOCT) | 44 ± 2 °C |
| Operating Temperature Range | -40 °C to 85 °C |
| Temperature Coefficient of Pmax | -0.36 % / °C |
| Temperature Coefficient of Voc | -0.27 % / °C |
| Temperature Coefficient of Isc | 0.04 % / °C |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Power Range for Series | 515 Wp to 550 Wp (series rating) |
| Panel Dimensions (H × W × D) | 2280 × 1135 × 35 mm |
| Weight | 28.6 kg |
| Glass Type | 3.2 mm tempered glass with anti-reflection coating |
| Frame Material | Anodized aluminium frame |
| Junction Box | IP68 rated junction box with 3 bypass diodes |
| Cable Cross Section | 4 mm² solar cable |
| Cable Length | 300 mm (typical per lead) |
| Seller / Manufacturer | Himin Solar Co., Ltd., China |
Certifications: Industry standard IEC and safety certifications are typically supported for this class of module. Please refer to the official datasheet or manufacturer for the exact certification list for your region.
Inverter Compatibility: Suitable for use with most modern string and central inverters rated up to 1500 V DC. Final compatibility must be checked against the inverter input current, voltage window, and string design guidelines.
Environmental: Designed for outdoor installation with IP68 junction box protection, tempered glass front, and anodized aluminium frame. These features support resistance to moisture, dust, and mechanical loading when installed to manufacturer guidelines.
Warranty: 12 year product warranty against manufacturing defects. Power warranty of 97 % output in the first year and 80 % output after 25 years, corresponding to an annual linear degradation rate of approximately 0.8 %.
