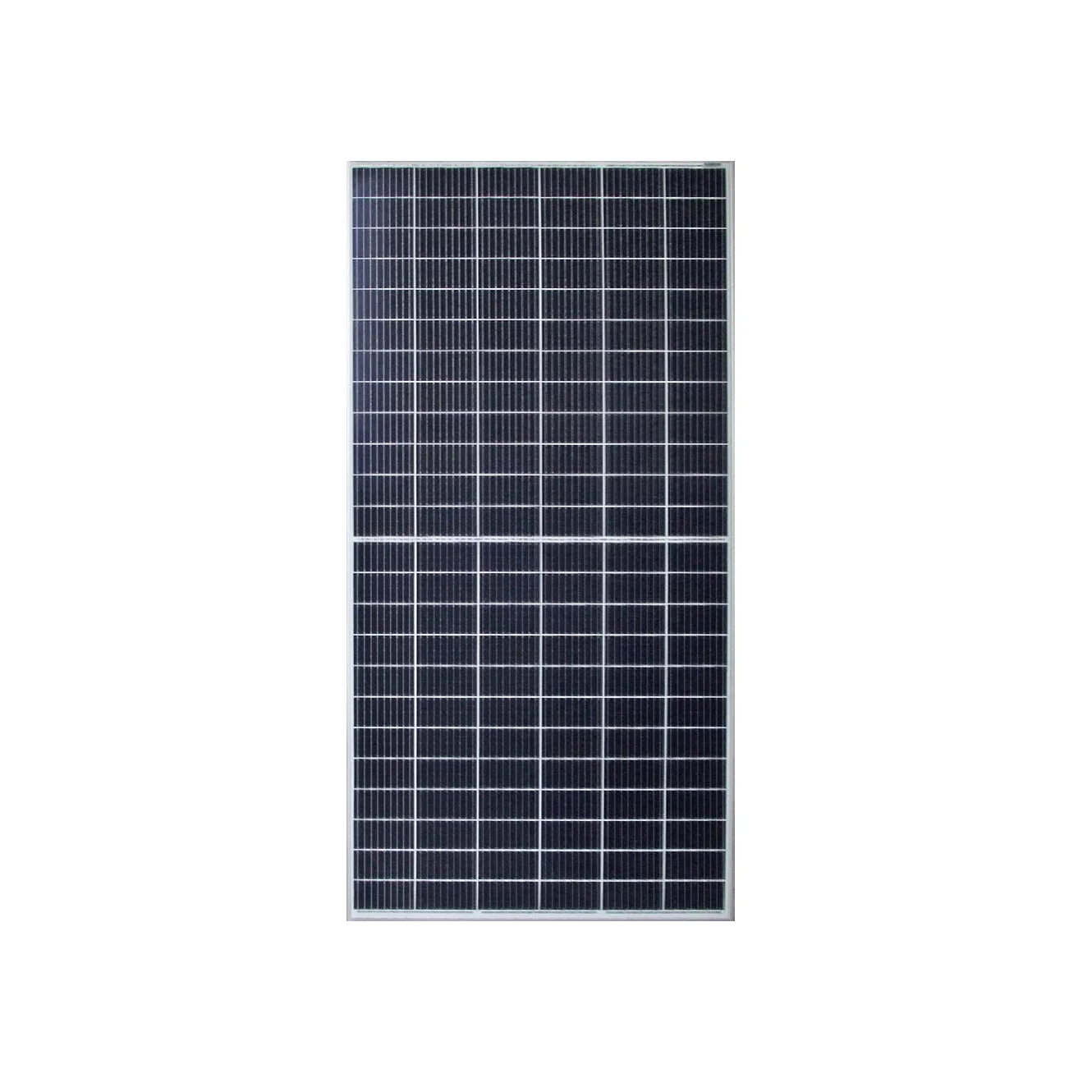

JC Solar JC-410-72MDX9/MDX9H
JC Solar JC-410-72MDX9/MDX9H
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-9582

JC Solar JC-410-72MDX9/MDX9H

JC Solar JC-410-72MDX9/MDX9H

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

JC Solar JC-410-72MDX9/MDX9H 410W Monocrystalline Solar Panel

Model JC-410-72MDX9/MDX9H | Monocrystalline PERC | 144 Cells | Monocrystalline | 1500V System Voltage

410 Wp
Max Power Output
20.38%
Module Efficiency
144
PERC Cells

Product Overview

The JC Solar JC-410-72MDX9/MDX9H is a high-performance monocrystalline solar panel built for dependable power generation. It delivers 410 Wp of output and reaches 20.38% module efficiency. The panel uses PERC cell technology, which supports strong energy yield in a compact design. Its 144-cell layout helps balance power, size, and stable output. The module is suited for projects that need durable construction, consistent performance, and long service life. It also includes a 12-year product warranty and a 10-year power warranty for 91.2% output, with 80.7% retained after 25 years.

Key Benefits

High Power Output: The panel provides 410 Wp, supporting strong system performance for many applications.

Excellent Efficiency: A 20.38% efficiency rating helps maximize output from available roof or ground space.

Durable Build: Tempered anti-reflection glass and an anodized aluminium frame improve long-term reliability.

Reliable Warranty Coverage: The module includes 12 years of product protection and a 25-year performance guarantee.

Wide Operating Range: It operates from -40 to 85 °C, making it suitable for demanding climates.

Installation Flexibility: The 1500V maximum system voltage supports modern solar installations and larger arrays.

How It Works

This monocrystalline solar panel converts sunlight into usable electricity through advanced photovoltaic cells. The PERC design improves light capture and helps increase power generation under real-world conditions. Its 144-cell configuration supports stable voltage and current flow across the module. Anti-reflection glass allows more light to reach the cells, while the tempered surface protects against everyday environmental stress. The anodized aluminium frame adds structural strength and supports safe rooftop or ground-mounted installation. Together, these features create a panel that performs efficiently, lasts longer, and integrates well into residential or commercial solar systems.

Photovoltaic Conversion: Sunlight is absorbed by the monocrystalline cells and converted into direct current electricity. The PERC structure helps capture more available light.

Electrical Output Management: The panel delivers defined operating values for voltage, current, and power. This helps installers match the module to compatible system designs.

Mechanical Protection: Tempered glass and a robust aluminium frame help protect internal components. This improves reliability in changing weather conditions.

Technical Specifications

Technology PERC
Cell Type Monocrystalline
Model Number JC-410-72MDX9/MDX9H
Power Range 410 Wp
Maximum Power (Pmax) 410 Wp
Voltage at Maximum Power (Vmpp) 42.3 V
Current at Maximum Power (Impp) 9.7 A
Open Circuit Voltage (Voc) 50 V
Short Circuit Current (Isc) 10.25 A
Panel Efficiency 20.38%
Power Tolerance 0 ~ +1%
Temperature 45±2 °C
Operating Temperature Range -40 to 85 °C
Temperature Coefficient of Pmax -0.37 %/°C
Temperature Coefficient of Voc -0.29 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Panel Dimension (H/W/D) 2008 x 1002 x 40 mm
Weight 22.5 kg
Cell Size 158.75 × 79.38 mm
Cell Number 144
Glass Type Anti-reflection Coating, Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Seller Name Jiacheng Solar Technology Co., Ltd.
Country of Origin China

Certifications & Compliance

Certifications: Not specified in the provided product data.
Inverter Compatibility: Suitable for standard grid-tied and off-grid solar system designs with matching electrical ratings.
Environmental: Built for operation in temperatures from -40 to 85 °C with durable tempered glass and aluminium framing.
Warranty: 12-year product warranty and 10-year power warranty at 91.2% output, with 25-year output retention of 80.7%.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
