MQ Energy 290
MQ Energy 290
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-12015

MQ Energy 290

MQ Energy 290

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

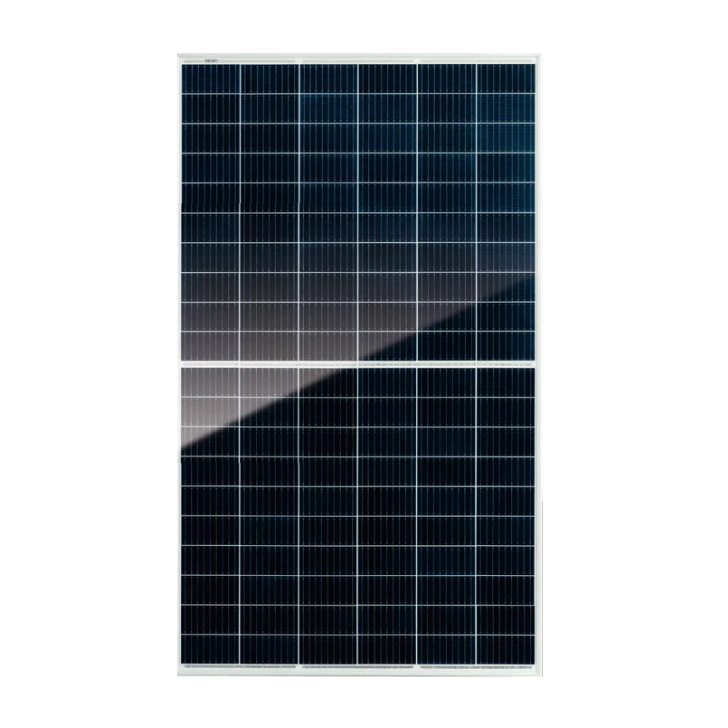

MQ Energy 290 290W Polycrystalline Solar Panel

Model No. 290 | Polycrystalline | 120 Cells | Mono | 1500V System Voltage

290 Wp
Max Power Output
17.35%
Module Efficiency
120
Polycrystalline Cells

Product Overview

The MQ Energy 290 polycrystalline solar panel is built for dependable daily power generation. It combines a 290 Wp maximum output with strong 17.35% panel efficiency. This module is designed for residential and commercial solar projects that need stable performance and long service life. The focus keyword is polycrystalline solar panel, and this model delivers it in a practical, cost-effective format. Its 120-cell design supports efficient energy conversion across a wide operating range. The panel uses tempered glass, an anodized aluminium frame, and IP68 junction box protection. These features help improve durability in challenging outdoor environments. With a 12-year product warranty, it offers added confidence for long-term installations.

Key Benefits

Reliable Output: The module delivers 290 Wp, supporting consistent energy production for everyday use.

Strong Efficiency: A 17.35% efficiency rating helps convert sunlight into usable electricity effectively.

Durable Construction: Tempered glass and an anodized aluminium frame support long-term outdoor use.

Weather Protection: An IP68 junction box and robust materials improve resilience in harsh conditions.

Installation Friendly: MC4 connectors and a 400 mm cable length help simplify system integration.

How It Works

This polycrystalline solar panel captures sunlight through 120 photovoltaic cells. Those cells convert solar energy into direct current electricity. The module then produces a maximum power output of 290 Wp under standard testing conditions. Its operating values are balanced for practical system design and stable performance. The panel is suited to a broad temperature range, which supports reliable generation in varying climates. The 1500V maximum system voltage allows flexible string design in larger installations. Its 15 A series fuse rating and MC4 connectors support safe electrical integration. The durable frame and glass structure protect the module while it works outdoors every day.

Sunlight Conversion: The cells absorb sunlight and convert it into electrical current. This process begins as soon as light reaches the module surface.

Power Conditioning: The module operates at 31.6 V Vmpp and 9.18 A Impp. These values define its efficient operating point under load.

System Integration: The MC4 connectors and 4 mm² cable help connect the module to the wider solar array. This supports clean installation and secure operation.

Technical Specifications

Brand MQ Energy
Model Number 290
Technology Polycrystalline
Maximum Power (Pmax) 290 Wp
Power Range 285 ~ 295 Wp
Power Tolerance 0 ~ +2 %
Panel Efficiency 17.35 %
Efficiency Range 17.05 ~ 17.65 %
Voltage at Maximum Power (Vmpp) 31.6 V
Current at Maximum Power (Impp) 9.18 A
Open Circuit Voltage (Voc) 38.8 V
Short Circuit Current (Isc) 9.58 A
Temperature 45±2 °C
Operating Temperature Range -40 - 85 °C
Temperature Coefficient of Pmax -0.37 %/°C
Temperature Coefficient of Voc -0.29 %/°C
Temperature Coefficient of Isc 0.049 %/°C
Maximum System Voltage 1500 V
Series Fuse Rating 15 A
Panel Dimension (H/W/D) 1685 x 992 x 35 mm
Weight 18.5 kg
Cell Number 120
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Encapsulant Type EVA
Frame Type Anodized Aluminium
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 400 mm
Seller Name Taizhou MQ Energy Technology Co., Ltd.
Country China

Certifications & Compliance

Certifications: Not specified in the provided data
Inverter Compatibility: Compatible with standard solar inverter systems using MC4 connections
Environmental: IP68 junction box, tempered glass, and anodized aluminium frame support outdoor use
Warranty: 12 Years Product Warranty

● Available | Contact us for lead time and pricing
