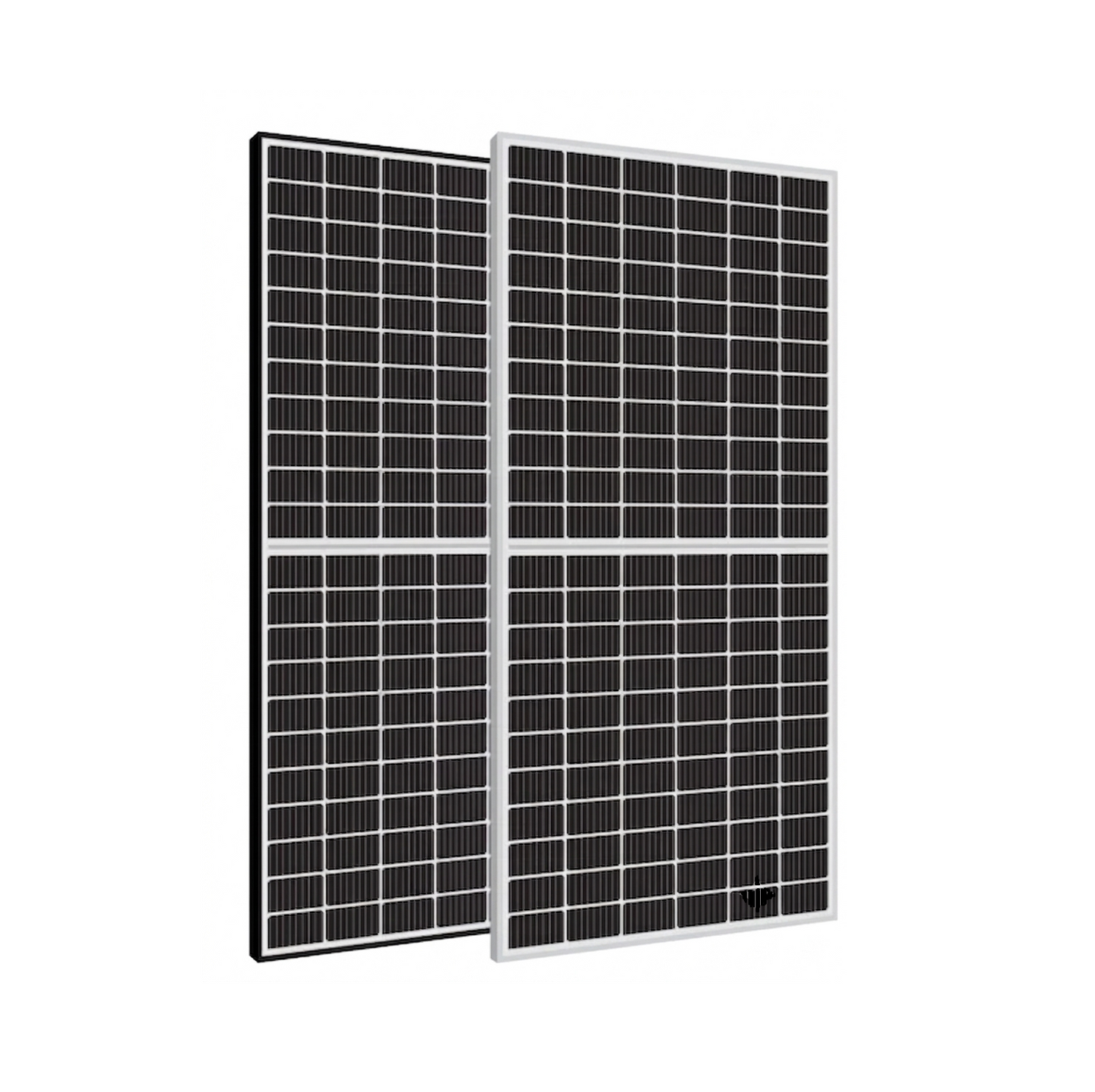

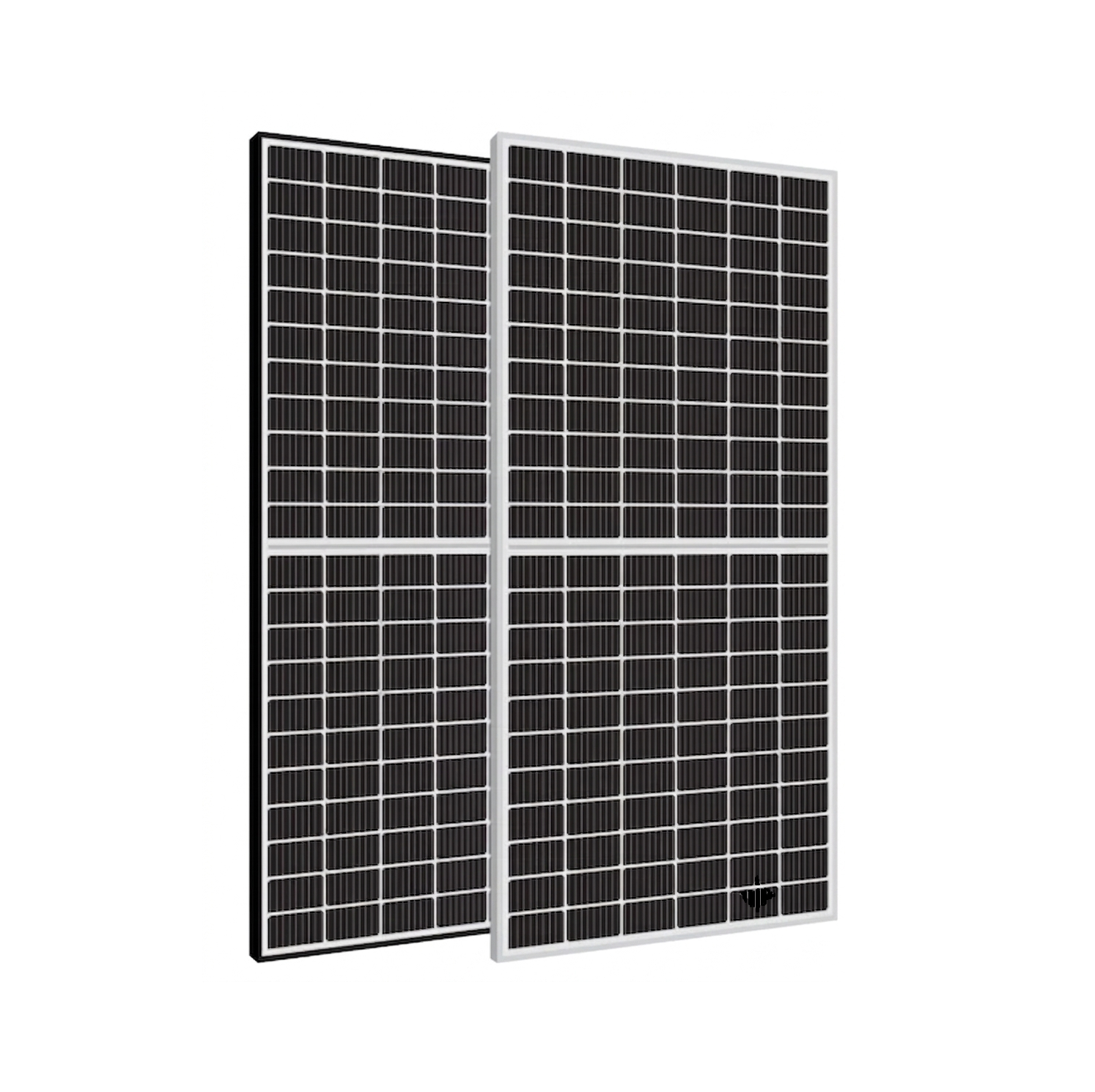

QSOLAR QS505-150HM12 505W Monocrystalline Monofacial Solar Panel

Model QS505-150HM12 | Mono PERC | 150 Half-Cell Monocrystalline | Monofacial | 1500V System Voltage

505 W
Max Power Output
21.1%
Module Efficiency
150
N-Type TOPCon

Product Overview

The QSOLAR QS505-150HM12 505W monocrystalline solar panel is engineered for high performance in demanding projects. It delivers strong output in the 405 W to 660 W mono series and suits commercial and larger residential arrays. This half-cell module offers up to 21.1% panel efficiency for reliable energy yield on limited roof or ground space. A robust 1500 V DC system rating supports modern string designs with longer strings and reduced balance of system costs. The module uses premium tempered glass with anti-reflection coating to improve light capture and surface durability. Its anodized aluminium frame and IP68 junction box help ensure long term protection in harsh outdoor conditions. With a 12 year product warranty and a 25 year performance warranty, long term output is backed and bankable. The panel is produced by Ningbo Kanglite Electronics Co., Ltd. under the QSOLAR brand in China for global deployment. Installers can use this module in grid tied systems, hybrid setups, or off grid applications with suitable inverters. Across the MONO 210 series, consistent dimensions and electrical behaviour support easier system design and scaling.

Key Benefits

High power density for rooftops: The 505 W rating and up to 21.1% efficiency allow more power on limited space.

Reliable long term performance: A 25 year linear power warranty with 84.8% output at year 25 supports predictable yield.

Strong environmental resistance: The module is tested for high salt mist and ammonia exposure for coastal and farming sites.

Enhanced mechanical robustness: Design certification covers 2400 Pa wind load and 5400 Pa snow load for harsh climates.

Optimised cell layout and half cut design: Half cells reduce internal mismatch losses and help limit power loss from partial shading.

Flexible use across system sizes: The 1500 V DC rating and standard MC4 connectors simplify integration with many inverters.

How It Works

The QSOLAR QS505-150HM12 505W monocrystalline solar panel converts sunlight into usable DC electricity. Each monocrystalline half cell absorbs photons and releases electrons within the silicon structure. These electrons are directed through the cell busbars and connected in a series and parallel layout. The wiring inside the module combines voltage and current to reach 43 V at maximum power under STC. From the junction box, power flows through 4 mm² solar cables and MC4 connectors to the inverter. The inverter converts the DC electricity into AC power for on site loads or grid export. Under real world NOCT conditions, the panel delivers 382 W at 40.6 V and 9.43 A. Optimised materials and coatings help maintain performance over decades of outdoor exposure. System designers can connect many modules in series and parallel strings to achieve the target array size. Once installed correctly, the panel operates automatically whenever sufficient solar irradiance is available.

Monocrystalline half cell generation: High quality 210 mm monocrystalline cells are cut into halves to reduce electrical resistance. This layout improves current handling and helps lower operating temperature while sustaining output.

Optimised optical and glass design: The 3.2 mm low iron tempered glass features an anti reflection coating to capture more light. More light entering the cell surface translates into higher daily energy production and steadier yield.

Robust electrical path and protection: The rear mounted IP68 junction box protects diodes and connections from moisture and dust. Pre assembled MC4 connectors and UV resistant 4 mm² cabling allow quick and secure string wiring.

Technical Specifications

Brand / Manufacturer QSOLAR by Ningbo Kanglite Electronics Co., Ltd. (Nexusun Energy)
Country of Origin China
Model Number QS505-150HM12
Cell Technology Monocrystalline, MONO 210 series
Cell Size and Layout 210 x 210 mm cells, 150 half cells (5 x 15 + 5 x 15)
Power Range for Series 405 W to 660 W (MONO 210 series modules)
Maximum Power (Pmax, STC) 505 Wp
Module Efficiency (STC) 21.1%
Voltage at Maximum Power (Vmpp, STC) 43.0 V
Current at Maximum Power (Impp, STC) 11.75 A
Open Circuit Voltage (Voc, STC) 51.9 V
Short Circuit Current (Isc, STC) 12.35 A
Maximum Power (Pmax, NOCT) 382 Wp
Voltage at Maximum Power (Vmpp, NOCT) 40.6 V
Current at Maximum Power (Impp, NOCT) 9.43 A
Open Circuit Voltage (Voc, NOCT) 49.0 V
Short Circuit Current (Isc, NOCT) 9.94 A
Power Tolerance 0 to +5 W positive tolerance (approx. 0 to +0.83%)
Operating Temperature Range -40°C to +85°C
Maximum System Voltage 1500 V DC (Application Level A)
Maximum Series Fuse Rating 25 A / 30 A
Module Dimensions 2176 x 1096 x 35 mm (QS505-150HM12)
Module Weight 26.3 kg ±3%
Front Glass 3.2 mm high transmission low iron tempered glass, anti reflection coating
Frame Material Anodized aluminium alloy frame
Junction Box Protection Class IP68 rated junction box
Connector Type MC4 compatible connectors
Cable Cross Section 4.0 mm² TUV certified solar cable

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, IEC 61701 (salt mist), IEC 62716 (ammonia), ISO 9001 quality management.
Inverter Compatibility: Suitable for most modern grid tied and hybrid inverters supporting 1500 V DC strings and MC4 inputs.
Environmental: High resistance to salt mist and ammonia, PID resistant design, tested for 2400 Pa wind and 5400 Pa snow loads.
Warranty: 12 year product warranty for materials and workmanship plus 25 year linear power warranty, with first year degradation ≤2.0% and ≤0.55% per year from year 2 to 25, ensuring at least 84.8% rated power at year 25.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
