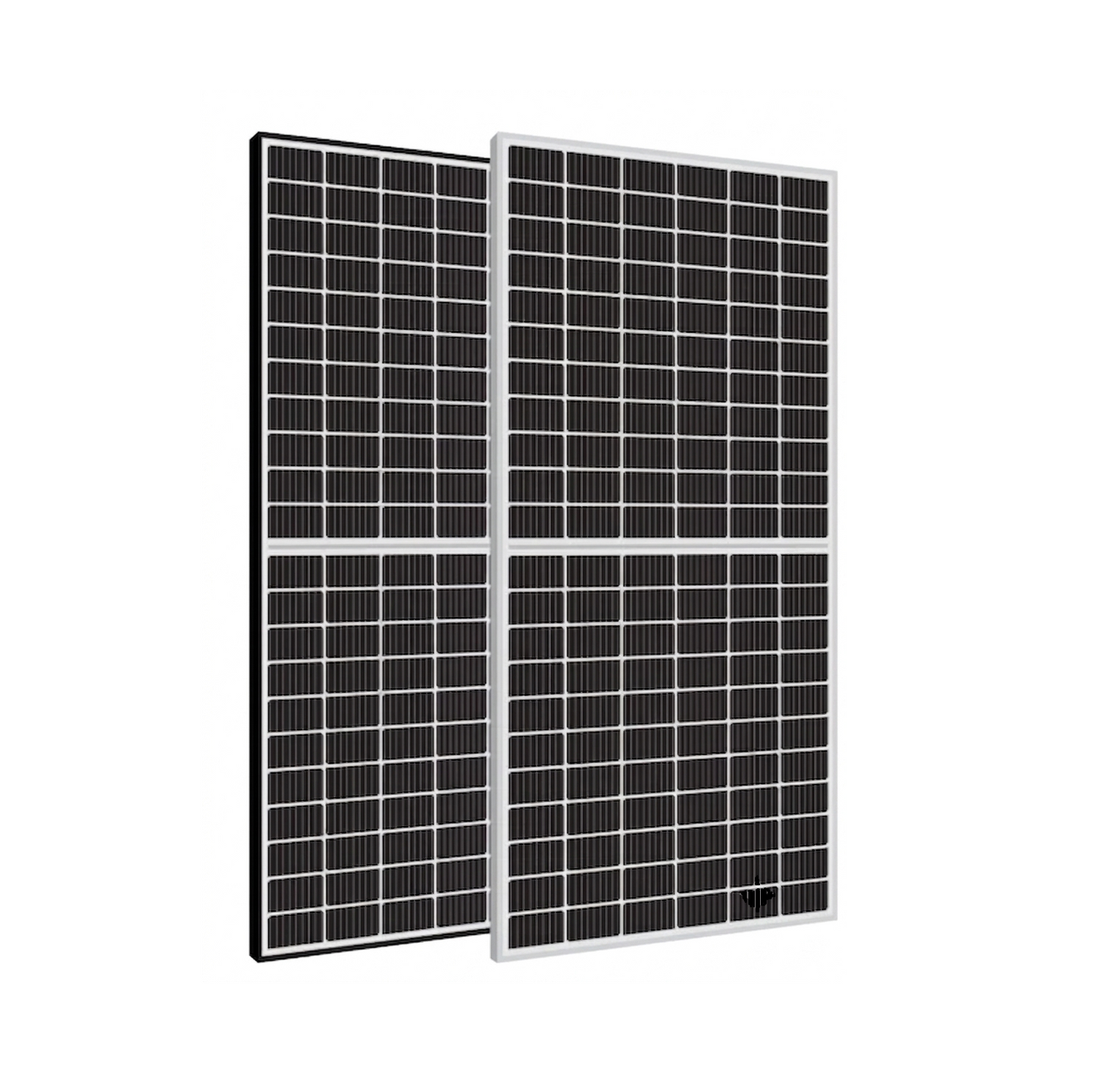

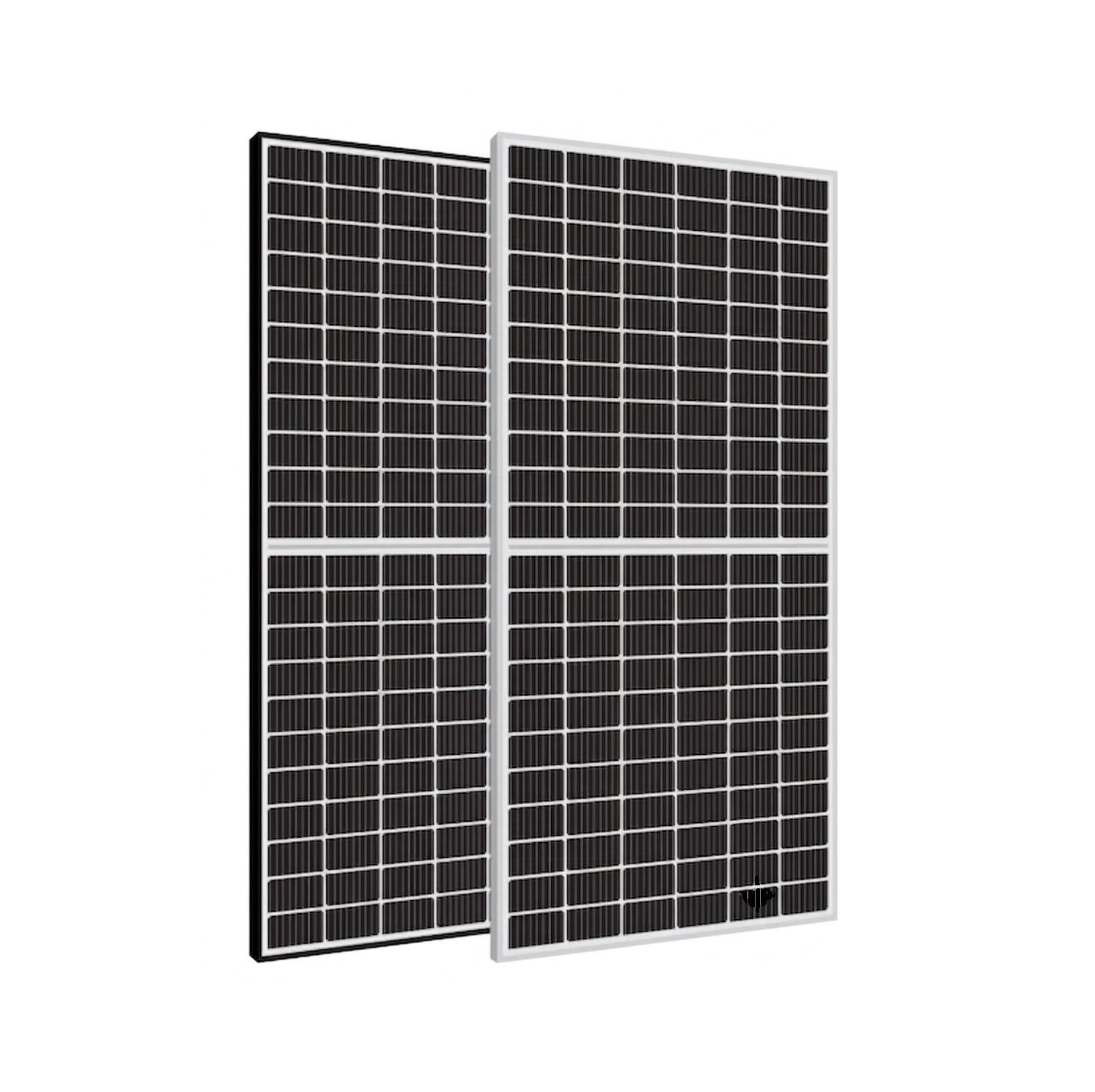

Quality Solar QS550-110HM10
Quality Solar QS550-110HM10
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-14912

Quality Solar QS550-110HM10

Quality Solar QS550-110HM10

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

QSOLAR QS550-110HM10 550W Monocrystalline Monofacial Solar Panel

Model QS550-110HM10 | Monocrystalline PERC | 110 Half-Cell Monocrystalline | Monofacial | 1500V System Voltage

550 W
Max Power Output
21.1%
Module Efficiency
110
Monocrystalline Cells

Product Overview

The QSOLAR QS550-110HM10 550W monocrystalline solar panel is engineered for high energy yield in modern PV systems. This high-output module combines 550 watt peak power with module efficiency up to 21.1 percent for reliable energy production on constrained roofs and commercial arrays. Its monocrystalline 210 mm half-cut cells, advanced PERC technology, and optimized temperature behavior support strong performance in real operating conditions. A robust anodized aluminum frame, 3.2 mm tempered glass with anti-reflection coating, and IP68 junction box help protect the module in harsh climates. With a 12 year product warranty and a 25 year power warranty, this module is designed to deliver dependable long term solar savings. The QS550-110HM10 integrates easily into 1500 V DC systems and suits residential, commercial, agricultural, and light industrial projects seeking bankable, cost effective solar power.

Key Benefits

High power density for smaller arrays: Up to 550 Wp per module allows strong system output with fewer panels and reduced racking and wiring needs.

Excellent conversion efficiency: Module efficiency around 21 percent maximizes production on rooftops and ground mounts with limited space.

Reliable long term performance: The 25 year power warranty with an 84.8 percent guaranteed output ensures predictable energy yield over the life of the system.

Low degradation and tight tolerance: A low annual degradation rate and positive power tolerance from 0 to +0.83 percent help secure more real world kilowatt hours.

Durable construction for harsh sites: Tempered glass with anti reflection coating, anodized aluminum frame, and IP68 junction box support operation in demanding outdoor environments.

Flexible integration and design range: A broad power range from 405 to 660 Wp and compatibility with 1500 V systems simplify string design and future system expansion.

How It Works

This monocrystalline solar panel converts sunlight into direct current electricity using high efficiency silicon cells. When sunlight reaches the 210 mm half cut cells, photons transfer energy to electrons in the silicon lattice. These energized electrons move through an internal electric field and create a steady DC current at the module output leads. The panel operates at a maximum power point of 550 Wp under standard test conditions, with a Vmpp of 31.6 volts and Impp of 17.4 amps. In typical outdoor operation, the NOCT rating delivers around 417 Wp at 29.4 volts and 14.19 amps, supporting stable production in real weather conditions. The generated DC power is routed through MC4 connectors and 4 mm² solar cable to an inverter, which converts it into AC electricity for on site consumption or export to the grid.

Monocrystalline half cut cell design: The QS550-110HM10 uses monocrystalline PERC cells cut into halves to reduce resistive losses. This layout increases module efficiency and improves shade tolerance across the string, supporting higher energy yield in partial shading.

Optimized electrical operating points: At STC, the panel reaches 31.6 V at maximum power with 37.9 V open circuit voltage and 18.52 A short circuit current. Under NOCT, the operating point shifts to 29.4 V and 14.19 A, which helps the inverter track the maximum power point across varying temperatures and irradiance.

Protective materials and junction box: A 3.2 mm tempered glass front with anti reflection coating enhances light transmission while safeguarding the cells from impact and weather. On the rear side, an IP68 rated junction box and MC4 connectors maintain secure electrical connections and protect against dust and water ingress through many years of outdoor exposure.

Technical Specifications

Brand QSOLAR / Ningbo Kanglite Electronics Co., Ltd. (Nexusun Energy)
Model QS550-110HM10 (MONO 210 Series)
Cell Technology Monocrystalline PERC, 210 mm, 10 busbar
Cell Arrangement 110 half cells (5×11 + 5×11)
Power Range (Series) 405 ~ 660 Wp (MONO 210 Series family)
Maximum Power (Pmax, STC) 550 Wp
Module Efficiency (STC) 21.10 %
Power Tolerance 0 / ±5 W (0 ~ +0.83 %)
Voltage at Maximum Power (Vmpp, STC) 31.6 V
Current at Maximum Power (Impp, STC) 17.4 A
Open Circuit Voltage (Voc, STC) 37.9 V
Short Circuit Current (Isc, STC) 18.52 A
Maximum Power (Pmax, NOCT) 417 Wp
Voltage at Maximum Power (Vmpp, NOCT) 29.4 V
Current at Maximum Power (Impp, NOCT) 14.19 A
Open Circuit Voltage (Voc, NOCT) 35.7 V
Short Circuit Current (Isc, NOCT) 14.92 A
Operating Temperature Range -40 °C to +85 °C
Maximum System Voltage 1500 V DC (Application Level A)
Max Series Fuse Rating 25 A / 30 A
Front Glass 3.2 mm high transmission, low iron, tempered glass with anti reflection coating
Frame Material Anodized aluminum alloy
Module Dimensions (L × W × H) 2384 × 1096 × 35 mm
Module Weight 28.6 kg ±3 %
Junction Box Protection Class IP68
Connector Type MC4 compatible
Cable Cross Section 4.0 mm², TUV certified
Country of Origin China

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, IEC 61701, IEC 62716, ISO 9001 quality management system.
Inverter Compatibility: Designed for modern grid tied and hybrid inverters supporting 1500 V DC strings and MC4 inputs.
Environmental: High salt mist and ammonia resistance, IP68 junction box, durable glass and frame for demanding climates.
Warranty: 12 year product warranty on materials and workmanship, plus 25 year linear power warranty with 0 to 2.0 percent first year degradation and up to 0.55 percent per year from year two to year twenty five, guaranteeing 84.8 percent rated output at year twenty five.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
