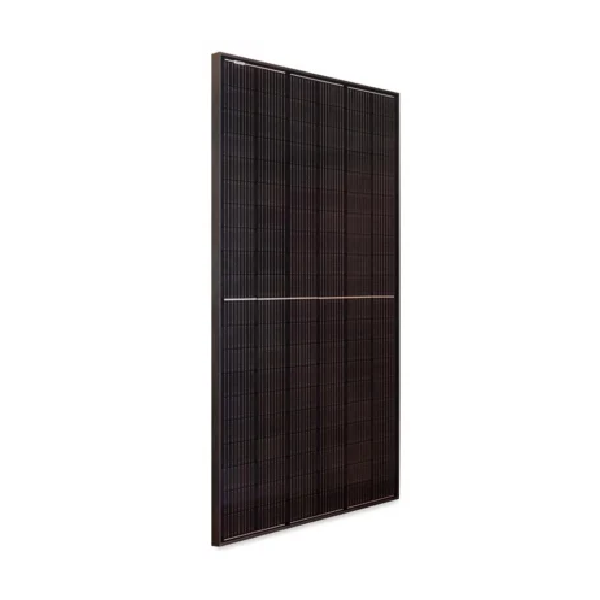

Sunage SAM 370 120W Half-cut BLK
Sunage SAM 370 120W Half-cut BLK
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-19022

Sunage SAM 370 120W Half-cut BLK

Sunage SAM 370 120W Half-cut BLK

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Specifications

Power Rating 120W

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Sunage SAM 370 370W Monocrystalline Half-cut Solar Panel

Model SAM 370 120W Half-cut BLK | Monocrystalline | 120 Half-Cell | Mono | 1500V System Voltage

370 Wp
Max Power Output
20%
Module Efficiency
120
Half-Cut Cells

Product Overview

The Sunage SAM 370 370W Monocrystalline Half-cut Solar Panel is designed for dependable residential and commercial solar power generation. It combines a high-efficiency monocrystalline cell structure with a half-cut layout that supports stable output and improved performance in real-world conditions. The module delivers 370 Wp of rated power and 20% efficiency, making it a practical choice for space-conscious installations. Its black finish, tempered glass front, and anodized aluminium frame create a durable, premium appearance. With a 12-year product warranty and a 25-year linear performance warranty, it is built for long-term energy production.

Key Benefits

Strong power output: Rated at 370 Wp, it supports reliable daily energy generation.

High module efficiency: The 20% efficiency rating helps maximize output from limited roof space.

Half-cut cell design: The 120-cell configuration helps reduce internal resistance and supports better shading tolerance.

Durable construction: Tempered glass, IP67 junction box protection, and an anodized aluminium frame improve long-term reliability.

Long warranty coverage: The panel includes a 12-year product warranty and a 25-year performance warranty for added confidence.

How It Works

This solar panel converts sunlight into direct current electricity through monocrystalline silicon cells. The half-cut design splits the cells into smaller sections, which reduces electrical resistance and helps maintain stronger performance under partial shading. The tempered glass front protects the module while allowing light to reach the cells efficiently. The IP67-rated junction box and MC4 connector system support safe field installation and dependable power delivery. The panel is engineered for stable operation across a wide temperature range, which helps preserve output in demanding outdoor environments. Its 1500V system rating also supports modern solar system designs.

Sunlight conversion: Monocrystalline cells absorb solar radiation and generate electrical current. This process creates usable DC power for your system.

Half-cut cell performance: Smaller cell segments lower resistance and improve electrical flow. This supports better output when conditions are not ideal.

Protected power delivery: The junction box, bypass diodes, and MC4 connector work together to move power safely. They also help reduce losses from shading and hot spots.

Technical Specifications

Brand Sunage
Model SAM 370 120W Half-cut BLK
Technology Monocrystalline, half-cut
Cell Count 120 cells
Cell Type Mono-crystalline cells, 166 × 83 mm
Maximum Power (Pmax) 370 Wp
Module Efficiency 20%
Voltage at Maximum Power (Vmpp) 34.78 V
Current at Maximum Power (Impp) 10.64 A
Open Circuit Voltage (Voc) 41.77 V
Short Circuit Current (Isc) 11.24 A
Power Tolerance 0 to +3%
Temperature at Operation 42 ± 3 °C
Operating Temperature Range -40 °C to 85 °C
Temperature Coefficient of Pmax -0.36%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.048%/°C
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Dimensions 1755 × 1038 × 35 mm
Glass Type Tempered glass, 3.2 mm
Frame Type Anodized aluminium
Junction Box 3 bypass diodes, IP67
Connector Type MC4
Cable 4.0 mm² section, 1160 mm length
Module Weight 20 kg
Wind Load 2400 Pa
Snow Load 5400 Pa

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007
Inverter Compatibility: Suitable for modern grid-tied and hybrid solar systems with MC4 connections
Environmental: Built for outdoor operation from -40 °C to 85 °C with high wind and snow load resistance
Warranty: 12 years product warranty and 25 years linear performance warranty

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Sunage SAM 370 370W Monocrystalline Half-cut Solar Panel

Model SAM 370 120W Half-cut BLK | Monocrystalline | 120 Half-Cell | Mono | 1500V System Voltage

370 Wp
Max Power Output
20%
Module Efficiency
120
Half-Cut Cells

Product Overview

The Sunage SAM 370 370W Monocrystalline Half-cut Solar Panel is designed for dependable residential and commercial solar power generation. It combines a high-efficiency monocrystalline cell structure with a half-cut layout that supports stable output and improved performance in real-world conditions. The module delivers 370 Wp of rated power and 20% efficiency, making it a practical choice for space-conscious installations. Its black finish, tempered glass front, and anodized aluminium frame create a durable, premium appearance. With a 12-year product warranty and a 25-year linear performance warranty, it is built for long-term energy production.

Key Benefits

Strong power output: Rated at 370 Wp, it supports reliable daily energy generation.

High module efficiency: The 20% efficiency rating helps maximize output from limited roof space.

Half-cut cell design: The 120-cell configuration helps reduce internal resistance and supports better shading tolerance.

Durable construction: Tempered glass, IP67 junction box protection, and an anodized aluminium frame improve long-term reliability.

Long warranty coverage: The panel includes a 12-year product warranty and a 25-year performance warranty for added confidence.

How It Works

This solar panel converts sunlight into direct current electricity through monocrystalline silicon cells. The half-cut design splits the cells into smaller sections, which reduces electrical resistance and helps maintain stronger performance under partial shading. The tempered glass front protects the module while allowing light to reach the cells efficiently. The IP67-rated junction box and MC4 connector system support safe field installation and dependable power delivery. The panel is engineered for stable operation across a wide temperature range, which helps preserve output in demanding outdoor environments. Its 1500V system rating also supports modern solar system designs.

Sunlight conversion: Monocrystalline cells absorb solar radiation and generate electrical current. This process creates usable DC power for your system.

Half-cut cell performance: Smaller cell segments lower resistance and improve electrical flow. This supports better output when conditions are not ideal.

Protected power delivery: The junction box, bypass diodes, and MC4 connector work together to move power safely. They also help reduce losses from shading and hot spots.

Technical Specifications

Brand Sunage
Model SAM 370 120W Half-cut BLK
Technology Monocrystalline, half-cut
Cell Count 120 cells
Cell Type Mono-crystalline cells, 166 × 83 mm
Maximum Power (Pmax) 370 Wp
Module Efficiency 20%
Voltage at Maximum Power (Vmpp) 34.78 V
Current at Maximum Power (Impp) 10.64 A
Open Circuit Voltage (Voc) 41.77 V
Short Circuit Current (Isc) 11.24 A
Power Tolerance 0 to +3%
Temperature at Operation 42 ± 3 °C
Operating Temperature Range -40 °C to 85 °C
Temperature Coefficient of Pmax -0.36%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.048%/°C
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Dimensions 1755 × 1038 × 35 mm
Glass Type Tempered glass, 3.2 mm
Frame Type Anodized aluminium
Junction Box 3 bypass diodes, IP67
Connector Type MC4
Cable 4.0 mm² section, 1160 mm length
Module Weight 20 kg
Wind Load 2400 Pa
Snow Load 5400 Pa

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007
Inverter Compatibility: Suitable for modern grid-tied and hybrid solar systems with MC4 connections
Environmental: Built for outdoor operation from -40 °C to 85 °C with high wind and snow load resistance
Warranty: 12 years product warranty and 25 years linear performance warranty

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
