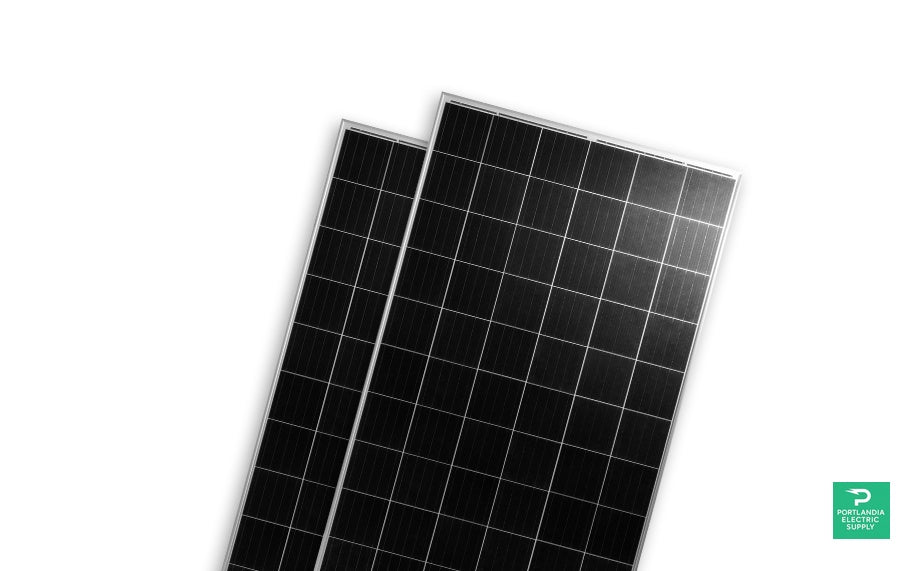

Talesun Solar 315W Mono Crystalline 60-Cell Solar Panel
TP660M | Mono Perc | 60 Half-Cell | Mono | 1500V System Voltage
Product Overview
The Talesun Solar 315W Mono Crystalline panel delivers reliable energy for residential and commercial projects. This high-performance module features advanced Mono Perc technology with 60 half-cut cells. It achieves an impressive 18.9% efficiency rating under standard test conditions. The panel offers a power tolerance of 0 to +3% for consistent output. Its robust design includes an anodized aluminum frame and 3.2mm tempered glass. This solar panel withstands extreme weather from -40°C to +85°C. The IP68 junction box ensures high waterproof protection for long-term durability. Talesun Solar provides a 25-year linear power warranty for peace of mind. This unit is ideal for maximizing energy generation in limited spaces.
Key Benefits
High Efficiency Output: Achieves 18.9% efficiency to maximize energy generation per square meter.
Superior Durability: Built with 3.2mm tempered glass and an anodized aluminum frame for resilience.
Weather Resistance: Operates safely in temperatures ranging from -40°C up to +85°C.
Waterproof Protection: Features an IP68 junction box that offers excellent protection against water ingress.
Long Warranty Period: Includes a 25-year linear power warranty and 12-year product warranty.
How It Works
This solar panel converts sunlight into usable electricity through the photovoltaic effect. The Mono Perc cells absorb photons from solar radiation to generate electron flow. This direct current is collected by the 5-busbar cell design for optimal conductivity. The system then feeds power to inverters for conversion into usable alternating current. Lower temperature coefficients ensure stable performance even during hot summer days. The anti-reflective coating on the glass maximizes light absorption throughout the day.
Photon Absorption: Sunlight hits the 60 monocrystalline cells to release electrons. This process creates a steady flow of direct current electricity.
Current Collection: The 5-busbar design collects electrons efficiently from each cell. This reduces resistance and improves overall power output significantly.
Heat Management: Low temperature coefficients minimize power loss in high heat. The panel maintains efficiency even when cell temperatures rise above 43°C.
Technical Specifications
| Maximum Power (Pmax) | 315 Wp (up to 330 Wp) |
| Module Efficiency | 18.9% (up to 19.8%) |
| Voltage at Max Power (Vmpp) | 33.2 V |
| Current at Max Power (Impp) | 9.49 A |
| Open Circuit Voltage (Voc) | 39.9 V |
| Short Circuit Current (Isc) | 10.09 A |
| Power Tolerance | 0 ~ +3% |
| Cell Type | Mono-Crystalline Silicon (5Busbar) |
| Number of Cells | 60 (6 x 10) |
| Cell Dimensions | 158.75 x 158.75 mm (6 inches) |
| Module Dimensions | 1665 x 1002 x 35 mm |
| Weight | 18.5 kg (40.79 lbs) |
| Front Glass | 3.2mm High Transmission, Tempered Glass |
| Frame Type | Anodized Aluminium Alloy |
| Junction Box | IP68 with 3/6 Bypass Diodes |
| Max System Voltage | 1000V / 1500V DC (IEC) |
| Max Series Fuse Rating | 20 A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient Pmax | -0.36%/°C |
| Connector Type | MC4 Compatible |
| Cable Length | 900 mm (35.43 inches) |
| Safety Class | II |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, UL 1703
Inverter Compatibility: Compatible with standard string inverters (MC4 Connectors)
Environmental: ISO 14001: 2015 Environment Management System, Excellent Anti-PID (2x Industry Standard)
Warranty: 12 Years Product Warranty, 25 Years Linear Power Output Warranty
Documentation
